Bradco High-Dump Bucket
Part #: Bradco-HDBucket

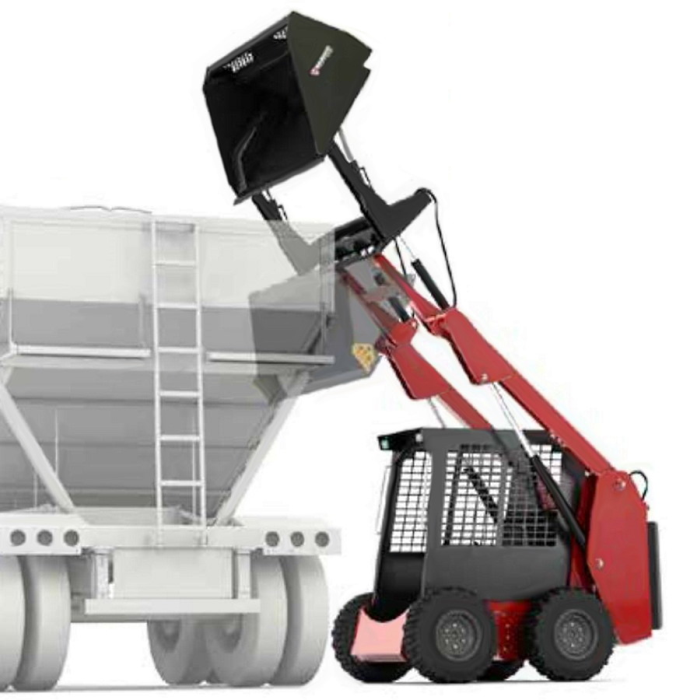

The Bradco High-Dump line of buckets allow users to increase the dumping height of their machine by 74 inches and load material into trucks, feed bins and reach other landing heights previously not obtainable with a standard bucket.
Details

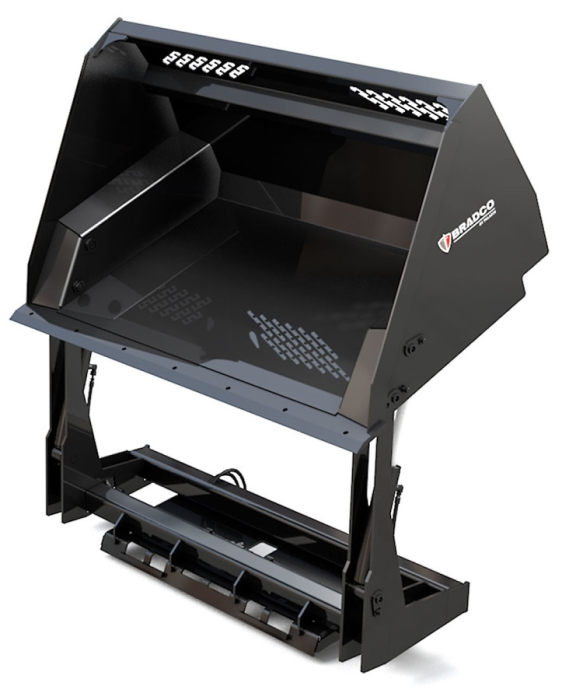

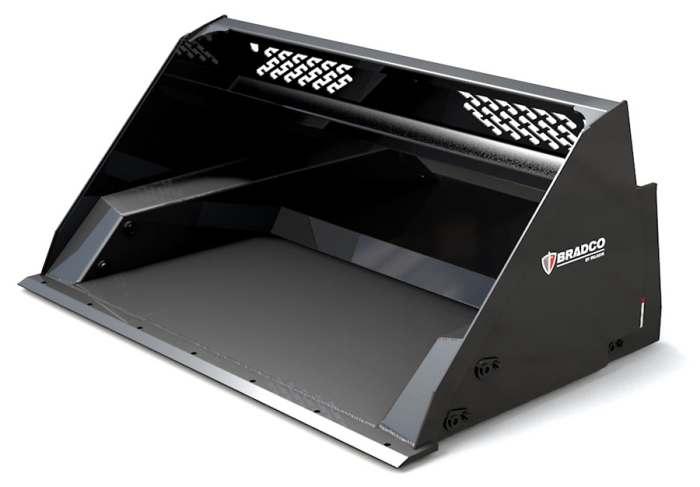

Bradco High-Dump Bucket
The Bradco High-Dump line of buckets allow users to increase the dumping height of their machine by 74 inches and load material into trucks, feed bins and reach other landing heights previously not obtainable with a standard bucket. This light material high-dump bucket exceeds all competitive units by offering increased capacities, cushioned hydraulics, 114° of roll out and the most robust design in the industry. These features translate to higher productivity and faster cycle times.
- Robust industry leading design
- Increases dump height by 74" compared to standard buckets
- Dual cushion cylinders for smooth operation with rapid cycle times
- 1.5" Diameter pivot pins from high strength material
| Width | 60" | 72" | 84" | 96" |
| Height | 32.38" | 32.38" | 32.38" | 32.38" |
| Depth | 49.85" | 49.85" | 49.85" | 49.85" |
| Capacity | 1.00 cu.yd. | 1.19 cu.yd. | 1.44 cu.yd. | 1.68 cu.yd. |
| Rotation | 114° | 114° | 114° | 114° |
| Pin Size | 1.25" | 1.25" | 1.25" | 1.25" |
| Cylinder Bore | 2.5" | 2.5" | 2.5" | 2.5" |
| Rod Diameter | 1.5" | 1.5" | 1.5" | 1.5" |
| Weight | 1000 lbs | 1145 lbs | 1250 lbs | 1350 lbs |
 |
|
