THE INDUSTRY'S BEST-SELLING "STRONG BOXES"

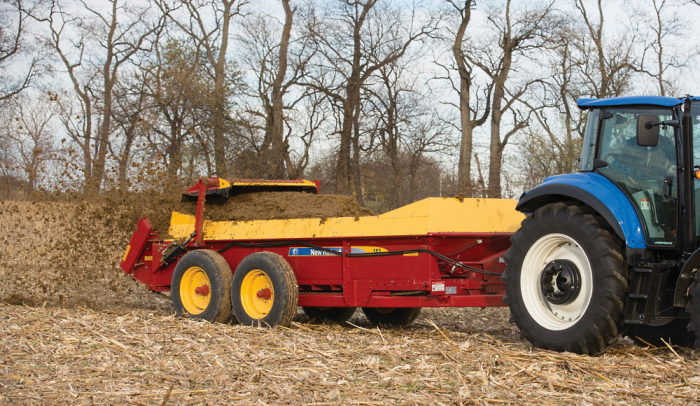

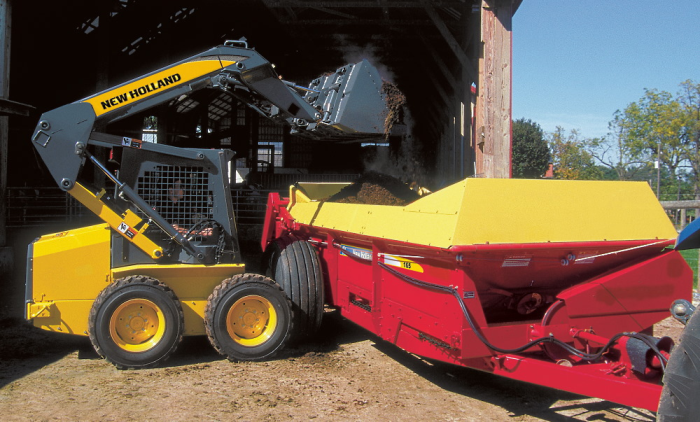

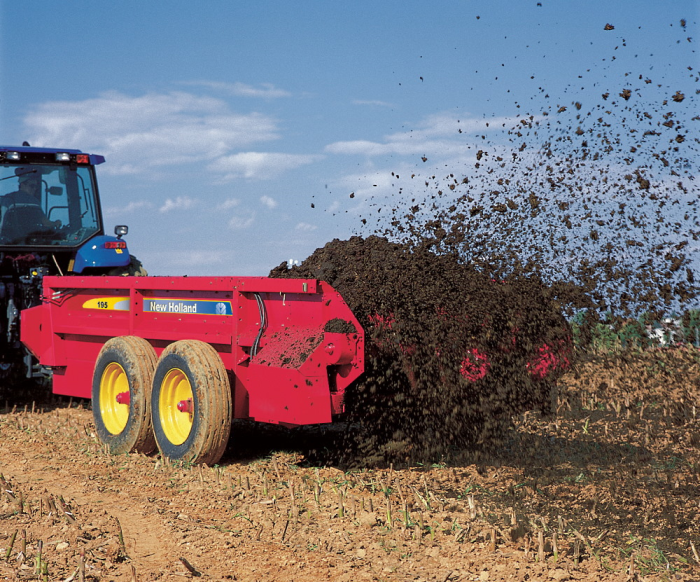

New Holland box spreaders — known as strong boxes — are engineered to produce an even spread pattern and are built to last. These top sellers have the toughest floors and sides of any spreaders available, featuring steel that is more corrosion-resistant and stronger than ordinary steels for unmatched durability.
ENGINEERED FOR DURABILITY
Building the best box spreaders in the industry means providing the rugged construction needed for reliable performance. It starts with extra steel frame members in the spreader's undercarriage for increased box strength, plus, standard heavy-duty axles with high-strength steel plates and spindles for reduced frame stress.
STURDY STEEL ADDS STRENGTH
The A-frame hitch made of high-strength, lightweight steel extends far back under the bed. This directs pulling forces to the axles and carries the load instead of pulling it. The brawny, formed steel frame member protects the front of the floor. For easy servicing, the box spreader's axles are a separate component from the box.
LONG-LASTING CORROSION-RESISTANT SIDES
With sides and endgates made of special steels, New Holland box spreaders are four times more corrosion-resistant and twice as strong as ordinary steels. These maximum-strength side sheets are designed without ribs for easy-cleaning. Optional slurry sides — a New Holland exclusive — increase capacity by approximately 25 percent and reduce splash over.
LOW MAINTENANCE FLOATING FLOOR
A unique floating floor, made of 3/4-inch x 6-inch high-density polyethylene tongue-and-groove planks, expands and contracts without putting stress on the frame or sides for less box spreader wear. The rugged floor is acid- and mold-resistant, plus it won't rot, warp, chip, crack, peel or splinter, making it extremely low maintenance.
| Model | 145 | 155 | 165 | 185 | 195 |
| Capacities | |||||
| Heaped, single beater | 182 ft³ | 217 ft³ | 258 ft³ | 278 ft³ | 391 ft³ |
| Heaped, double beater | 215 ft³ | 261 ft³ | 313 ft³ | 342 ft³ | 444 ft³ |
| Struck Level | 110 ft³ | 132 ft³ | 156 ft³ | 170 ft³ | 272 ft³ |
| Struck Level, slurry sides | 143 ft³ | 173 ft³ | 206 ft³ | 225 ft³ | -- |
| Dimensions | |||||
| Inside Bed Width | 60.9" | 60.9" | 60.9" | 60.9" | 72.0" |
| Overall Width | 92.5" | 92.5" | 101.0" | 97.0" | 111.0" |
| Inside Bed Depth | 22.6" | 22.6" | 22.6" | 22.6" | 32.0" |
| Inside Bed Length | 128.3" | 154.3" | 176.0" | 192.0" | 192.0" |
| Overall Length | 196.4" | 224.4" | 251.8" | 268.1" | 308.0" |
| Number of Apron Speeds | |||||
| Mechanical Drive | 2 (plus 1 slow-speed option) | ||||
| Hydraulic Drive | -- | -- | -- | Infinite | Infinite |
| Tractor Requirement | 40 hp | 50 hp | 55 hp | 60 hp | 100 hp |
 |
