Coneqtec Heavy-Duty Angle Broom
Coneqtec Heavy-Duty Angle Broom for Skid Steers

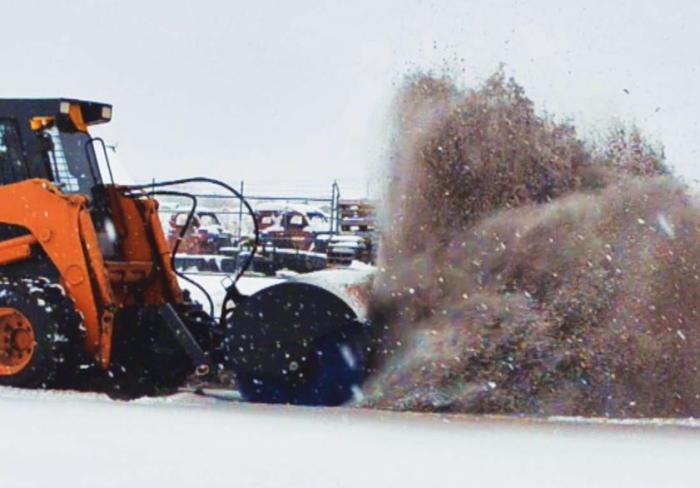

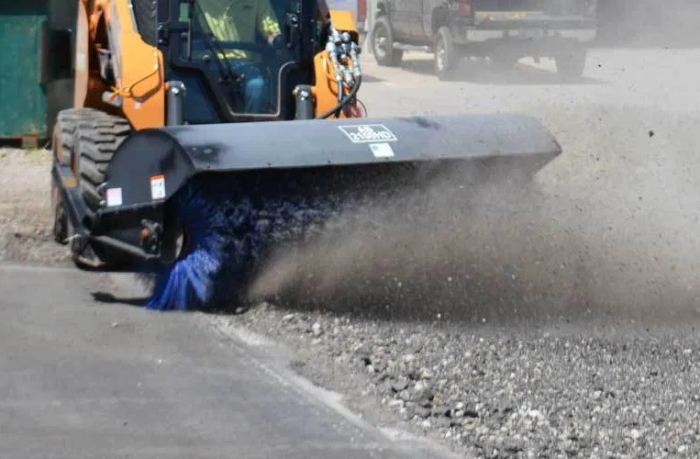

The AB-2100HD is designed to clear roads, sidewalks and parking lots of snow and the debris that lies beneath. Heavy-duty upgrades have been made all around. With its universal quick attach, it can be mounted on any brand of skid steer.
Heavy-Duty Upgrades - To tackle the abuse that snow presents to brooms, here are a few of the other upgrades the AB-2100HD features:
- Reinforced cross tube supports
- Heavy 12ga steel cowl
- Reinforced universal skid steer mount
- 10,000lb rated support stand
- HD lockable swivel with hydraulic or manual option
- Bearing shaft on the non-motor side
- Built-in hydraulic motor protection
- 2" pivot pin
The Brush - The 84" wide poly/wire wafer style brush has a 4 bar heavy duty core that is supported by 6 heavy construction support rings (competitors use only 4 rings). The wafers can easily be removed from the core for replacement or rearranged and reversed for even wear.
No Sticking and No Bouncing - The underside of the cowl is lined with a replaceable U.H.M.W. high impact non-stick material to prevent buildup and protect the cowl. The unique compression spring suspension system reduces stress on the broom, skid steer and operator. This system also reduces bouncing during transport.
Hydraulic Angle Adjustment Option - Allows on-the-go angle changes for efficient cleaning and windrowing of snow and debris. Manual adjustment is standard.
| Model | AB-2100HD |
| Brush Diameter | 32" |
| Brush Width | 84" |
| Overall Width | 97" |
| Overall Length | 63" |
| Overall Height | 35" |
| Weight | 1020 lbs |
| Angle (left or right) | 25° |
| Tilt for Ground Following | ±3° |
| Flow Range | 12-20 gpm |
| Pressure Range | 2000-3000 psi |
 |
|
