Worksaver Rotary Brooms

Part #: Worksaver-SSB
Hydraulically driven skid steer rotary brooms designed for use by contractors, municipalities, institutions, and farmers.
Details

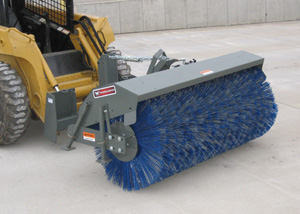

Worksaver Hydraulically Driven Rotary Brooms for Skid Steers

  • Designed for use by contractors, municipalities, institutions, and farmers.
  • Hydraulically driven skid steer models in 5-ft., 6-ft., and 7-ft. widths with 32" diameter brushes.
  • Variable flow control valve for optimum broom speed.
  • Step-through mount design for easy in/out of skid steer cab.
  • Optional electric solenoid hydraulic angle kit also offered
  • Optional electrical wiring kits to connect (optional) electric solenoid control to most OEM skid steer auxiliary controls.
  • 4.36/1 chain drive ratio provides job matched torque to get through tough conditions.
  • 32 inch diameter convoluted brushes available in Poly (P) or both Poly and Wire (PW).
  • Remove dirt, sand, gravel and trash from construction entrances, parking lots, bridges, driveways and sidewalks.
  • Remove thatch and prepare turf for the growing season.
  • Clean snow or leaves from streets, driveways, and building entrances.
  • Excellent for general clean up before sealing or repairing pavement.
  • Broom angles up to 30° right or left. Optional manual or hydraulic angle adjustment kits available.
  • Height adjustment chains maintain an even operating position.
  • Parking stands included as standard equipment.



 Model SSMB-325 SSMB-326 SSMB-327
 Sweeping Width 60" 72" 84"
 Sweeping Width @ 30° 53" 64" 76"
 Overall Width 69" 81" 96"
 Brush Diameter 32" 32" 32"
 Brush Material Poly or Poly/Wire Poly or Poly/Wire Poly or Poly/Wire
 Hydraulic Motor Rating 16 gpm 16 gpm 16 gpm
 Flow Requirement 12-30 gpm 12-30 gpm 12-30 gpm
 Weight 640 lbs 740 lbs 840 lbs
