PTO Powered Stump Grinders

Part #: Worksaver-SCut
SmoothCut PTO Powered Stump Grinders by Worksaver. Economical and Efficient PTO powered stump grinders make stump removal fast and easy. Operator easily controls the stump grinder from the comfort of the tractor seat.
Details

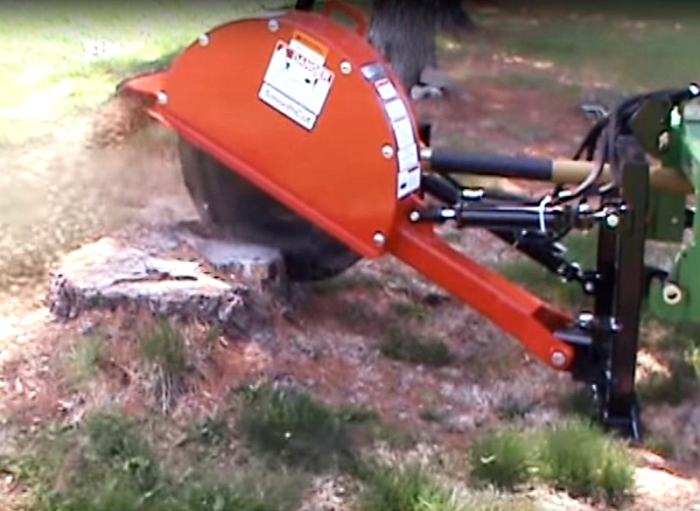

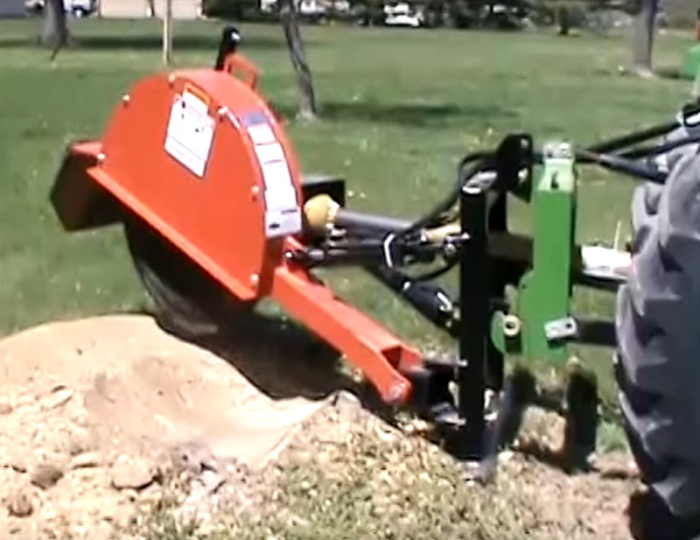

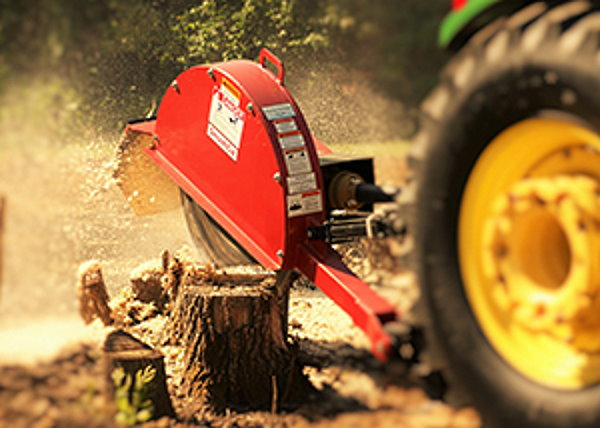

Worksaver SmoothCut PTO Powered Stump Grinders

Economical and Efficient PTO powered stump grinders make stump removal fast and easy. Operator easily controls the stump grinder from the comfort of the tractor seat.

Features

  • Maneuverable - goes anywhere a tractor can; gets into tight places.
  • Increased productivity via it's unique cutting wheel design.
  • Cutting wheel design provides a smoother cutting action.
  • Easy to operate - hydraulic controls allow easy operation from the tractor seat using existing tractor hydraulic controls.
  • Durable carbide-tipped cutting teeth are economical and easy to replace.
  • Harden bushings used in major pivot points for increased reliability.
  • Grease zerks provided at major pivot points for extended service life.
  • SureFoot stabilizer bar provides secure footing during operation.
  • Rubber deflector helps control chips and debris during grinding.
  • Parking stand for easy storage.
  • Two pair of remote hydraulic outlets are required on the tractor to operate the stump grinder.
  • SG-26 designed for tractors 22 -50 PTO HP; SG-36 designed for tractors 45-100 PTO HP.
  • Standard pressure relief valve for even control of cutting feed rate.



 Model SG-26A SG-36A
 Hitch Cat. I Cat. I/II
 Overall Length 75" 80"
 Gearbox Rating 60 hp 100 hp
 Cutting Wheel 3/4" x 26" 7/8" x 36"
 Cutting Wheel Speed 810 rpm 788 rpm
 Number of Teeth 33 42
 Cut Height Above Ground 18" 18"
 Cut Depth Below Ground 10" 15"
 Maximum Horizontal Cut 28" 33"
 Swing Arc 45° 45°
 Power Required 22-50 PTO hp 45-100 PTO hp
 Weight 660 lbs 880 lbs
