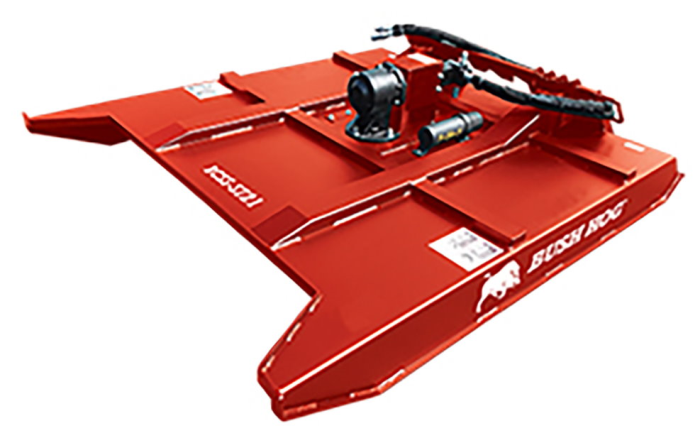

BH Open Front Rotary Cutters

Part #: BH-BrushCutter2
The Bush Hog line of BCSS skid steer brush cutters makes clearing brush and saplings easy with a selection of models designed for durability and performance. Like the closed front design, the open front models share heavy duty design features including solid one piece steel decks, long-lasting high tempered steel blades, balanced stump jumpers and welded collars underneath the deck to ensure years of solid performance. Complementing the heavy duty structural elements, all BCSS brush cutters incorporate optimal hydraulic motors and right angle gear boxes to achieve peak production – characterized by the highest torque available and sustained blade tip speeds proven effective in brush cutting applications. Open front models come in both the standard design and a heavy duty design with push bar feature. Cutting widths available include 60” and 72” single spindle.
Details

Bush Hog Open Front Brush Cutters

The Bush Hog line of BCSS skid steer brush cutters makes clearing brush and saplings easy with a selection of models designed for durability and performance. Like the closed front design, the open front models share heavy duty design features including solid one piece steel decks, long-lasting high tempered steel blades, balanced stump jumpers and welded collars underneath the deck to ensure years of solid performance. Complementing the heavy duty structural elements, all BCSS brush cutters incorporate optimal hydraulic motors and right angle gear boxes to achieve peak production – characterized by the highest torque available and sustained blade tip speeds proven effective in brush cutting applications. Open front models come in both the standard design and a heavy duty design with push bar feature. Cutting widths available include 60” and 72” single spindle.

PERFORMANCE FEATURES

  • Hydraulic motor and right-angle gearbox pairing to achieve max. torque and ideal blade tip speed
  • Low Flow, Standard or High Flow Models (GPM)
  • Cutting Capacities: 3" – 5"

PRODUCT FEATURES

  • Solid one piece 1/4" steel deck
  • 60" and 72" Single Spindle
  • Standard and Heavy Duty (Push Bar Design)
  • High tempered steel blades
  • Balanced stump jumper
  • Welded collar to protect gearbox



Standard Flow Models

  BCSS-S601 BCSS-S721 BCSS-721
 Type Standard Duty Heavy Duty
 Cutting Width 60" 72" 72"
 GPM Flow 16-25 21-25 21-25
 Operating PSI (Cont./Int.) 3000/3500 psi 3000/3500 psi
 Spindle Configuration Single Spindle Single Spindle
 No. of Blades 2 2 2
 Blade Size .50" x 4.0" .50" x 4.0"
 Deck Thickness 1/4" Steel 1/4" Steel
 Weight 840 lbs 1000 lbs 1220 lbs



Low Flow Models

  BCSS-S601LF BCSS-S721LF BCSS-721LF
 Type Standard Duty Heavy Duty
 Cutting Width 60" 72" 72"
 GPM Flow 10-15 15-20 15-20
 Operating PSI (Cont./Int.) 3000/3500 psi 3000/3500 psi
 Spindle Configuration Single Spindle Single Spindle
 No. of Blades 2 2 2
 Blade Size .50" x 4.0" .50" x 4.0"
 Deck Thickness 1/4" Steel 1/4" Steel
 Weight 840 lbs 1000 lbs 1186 lbs



High Flow Models

  BCSS-721HF
 Cutting Width 72"
 GPM Flow 26-40
 Operating PSI (Cont./Int.) 3000/3500 psi
 Spindle Configuration Single Spindle
 No. of Blades 2
 Blade Size .50" x 4.0"
 Deck Thickness 1/4" Steel
 Weight 1270 lbs
