Bush Hog All Purpose Plows

Part #: BH-Plows
Bush Hog’s new line of All Purpose Plows help you tackle a wide range of ground breaking tasks. These field cultivators break up, cultivate, and aerate the ground in agricultural fields, food plots, gardens, or anywhere you need to get something growing.
Details

Bush Hog All Purpose Plows

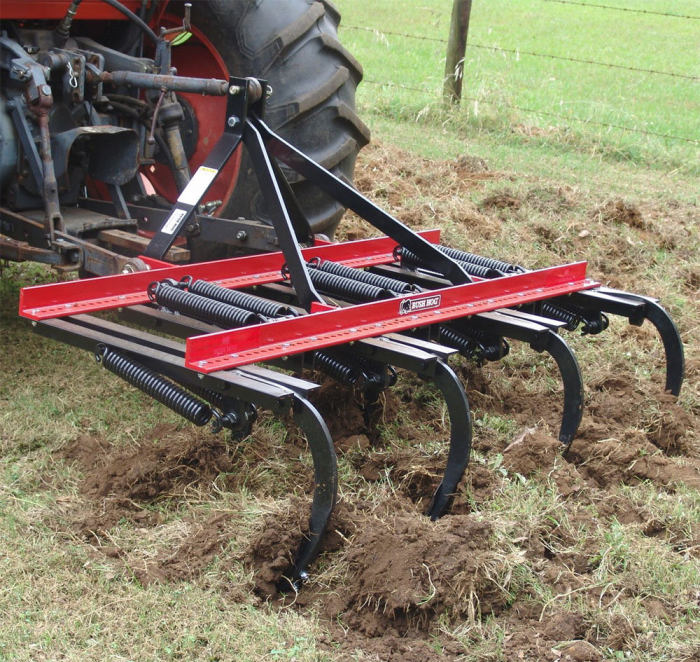

Bush Hog’s new line of All Purpose Plows help you tackle a wide range of ground breaking tasks. These field cultivators break up, cultivate, and aerate the ground in agricultural fields, food plots, gardens, or anywhere you need to get something growing. Spring loaded, auto-reset shanks allow you to go where other tools cannot… stumps, rocks, and other obstacles will not keep you from breaking up "new" ground or reclaiming "old" ground. With 3, 5, 7, and 9-shank models available, Bush Hog has an All Purpose Plow to meet your ground breaking needs.

Performance Features

  • All Purpose Plows range in working widths from 44" to 80".
  • Three point lift Cat. 1 Standard or Quick Hitch.
  • Frame construction is 2-1/2" x 2-1/2" x 3/8" angle iron.
  • Reversible Plow Points and are made of High Carbon steel

Product Features

  • Heat treated shanks with replaceable points; points are 1080 high carbon steel hardened to 38-44 Rockwell C.
  • Easily adjustable shank spacing in 1-inch increments; heavy gauge 2-1/2-inch x 2-1/2-inch x 3/8-inch angle iron frame.
  • Spring loaded, auto-reset shanks protect the implement when obstacles such as rocks, stumps or roots are encountered in rough ground.



 Model APP48-3 APP60-5 APP66-5 APP66-7 APP85-7 APP85-9
 Max Working Width 44" 56" 62" 62" 80" 80"
 Overall Width 49.875" 61.875" 67.875" 67.875" 85.875" 85.875"
 # of Shanks 3 5 5 7 7 9
 Overall Depth 39.75" 39.75"
 Overall Height 40.875" 40.875"
 Angle Iron Size 2.5"(W) x 2.5"(H) x 3/8"(T) 2.5"(W) x 2.5"(H) x 3/8"(T)
 Hole Spacing 1" 1"
 Hitch Cat. 1 Standard and Quick Hitch Cat. 1 Standard and Quick Hitch
 Teeth 5/16" x 2" x 10.125" 1080 High Caron 38 - 44 Rockwell C Reversible
 Weight 206 lbs 228 lbs 284 lbs 367 lbs 386 lbs 455 lbs
 Minimum PTO HP 24 hp 35 hp 35 hp 49 hp 49 hp 63 hp
