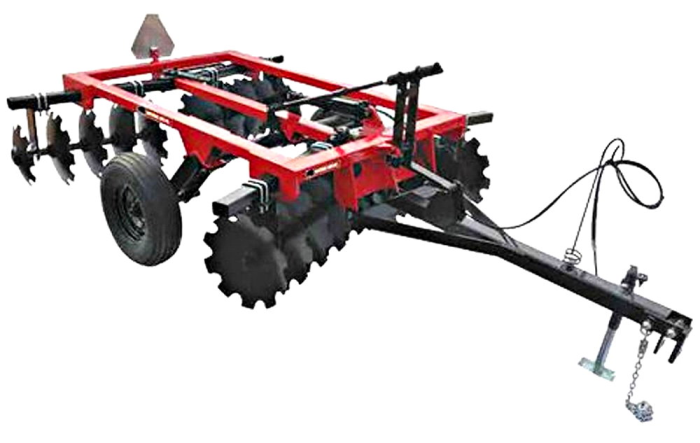

Bush Hog Pull Disc Harrows
Part #: BH-PDHarrow
Bush Hog’s new Pull Disc Harrows, the DHP Series, are designed for pulverizing soil, seed bed preparation and general tillage. Solid built units available in widths of 8', 10' and 12', the DHP line of disc harrows are ideally suited for use by small farmers, food plot managers, ranchers, construction crews and nursery operators.
Details
Files
Bush Hog Pull Disc Harrows
Bush Hogs new Pull Disc Harrows, the DHP Series, are designed for pulverizing soil, seed bed preparation and general tillage. Solid built units available in widths of 8', 10' and 12', the DHP line of disc harrows are ideally suited for use by small farmers, food plot managers, ranchers, construction crews and nursery operators. The DHP Series units share many features available on larger, more expensive models, including front-to-rear leveling, a depth control system, adjustable-gang angles, and streamlined tubular gang hangers. Multiple blade spacing options are available with your DHP Series Pull Disc harrows. Blade spacings of 7-1/2" allow for fine, finish discing needed for seedbed preparation or 9 inches for breaking up and fracturing “new ground" or a combination of the two. Six multiple blade spacing options for each model are available with your DHP Series Pull Disc Harrows; 20" or 22" notched discs at each of following spacing options: 7.5" front & rear, 9" front & rear, 9" front and 7.5"rear. High strength 1-1/8" square gang axles, combined with tough gang components, and triple lip sealed ball bearings, ensure the DHP models are ready for the toughest jobs. Put a Bush Hog DHP disc harrow to work for you today.
Performance Features
- Square and rectangle tube steel frames and gang tubes
- Adjustable gang angles, front and rear
- Variable Blade Spacings Available:
- 9 in. front and rear gangs for tough-to-cut "New Ground"
- 7 1/2 in. front and rear gangs for finer soil finishing
- 9 in. front gangs/7 1/2 in. rear gangs–the best of both worlds
- Notched disc blades for maximum cutting action
- 1 1/8" square, high carbon steel gang axles
- Available in tractor colors
- Optional disc scrapers, Center Sweep Kit, Dual Wheel Transport Kit
| Model | DHP8 | DHP10 | DHP12 |
| Drawbar HP Requirement | 40-65 hp | 45-100 hp | 55-100 hp |
| Hitch Type | Pull-type w/clevis & hole for 1 1/4" pin | ||
| Max. Cultivation Width | 8' 6" | 10' 6" | 12' |
| Approx. Load per Blade | 95-114 lbs | 84-98 lbs | 78-90 lbs |
| Disc Blade Size, Notched | 20" or 22" | 20" or 22" | 20" or 22" |
| Disc Blade Spacing | 7.5", 9" or Combination | ||
| Forward Gang Angle Adj. | 15, 16.5, 18, 19.5, 21 degrees | ||
| Rear Gang Angle Adj. | 12, 13.5, 15, 16.5, 18 degrees | ||
Click the "Files" tab above to download full specifications
 |
|
