W.R. Long Open Bottom Grapple
Part #: WRL-OBGrapple
Ideal for tree service, scrap, recyclable materials, trash, etc. The Open Bottom Grapple "OBG-2" is for Compact and Subcompact Loaders, Mini and Light Duty Skid Steers while the "OBG-1" is for larger capacity loaders.
Details

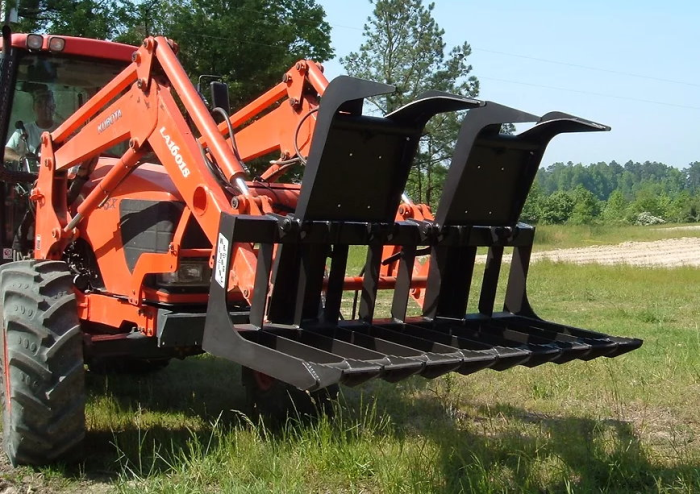

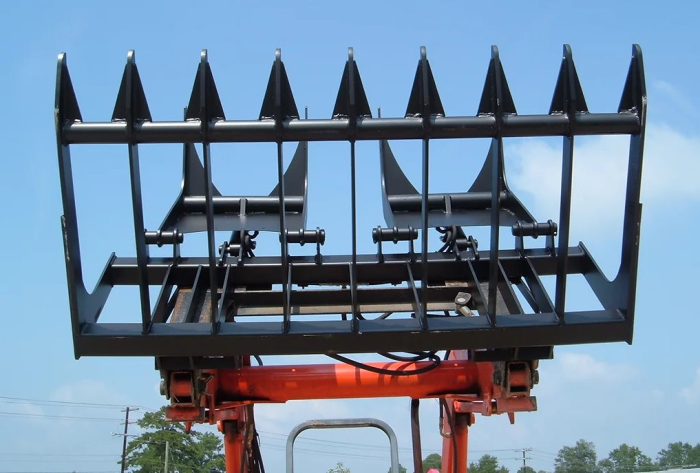

Open Bottom Grapple from W.R. Long
OBG-2 Open Bottom Grapple
The Open Bottom Grapple "OBG-2" is for Compact and Subcompact Loaders, Mini and Light Duty Skid Steers with lift capacities from 800 up to 2,200 pounds and comes in widths from 48 inches to 72 inches. Ideal for tree service, scrap, recyclable materials, trash, etc.
KEY BENEFITS
- Light weight and strong
- Heat treated bushings with stress proof pins
- Open Bottom Grapple teeth are made of high carbon steel
- Grapple Tines open to 44 inches
- 8" Tine Spacing
- The 48" OBG-2 has one grapple all others have 2 grapples
- Additional rails on bottom available for smaller materials
OBG-1 Open Bottom Grapple
The Open Bottom Grapple "OBG-1" is for Tractor Loaders with lift capacities to 3,500 pounds and skid steers with lift capacities to 2,500 pounds and comes in widths from 64 inches to 80 inches. Ideal for tree service, scrap, recyclable materials, trash, etc.
KEY BENEFITS
- Light weight and strong
- Heat treated bushings with stress proof pins
- Open Bottom Grapple teeth are made of high carbon steel
- Grapple Tines open to 47 inches
- 8" Tine Spacing
- Easy to see through grapple
- Additional rails on bottom available for smaller materials
| Model | Width | Max. Opening | Grapples | Tine Spacing | Weight |
| OBG2-48 | 48" | 44" | 1 | 8" | 357 lbs |
| OBG2-56 | 56" | 44" | 2 | 8" | 460 lbs |
| OBG2-64 | 64" | 44" | 2 | 8" | 490 lbs |
| OBG2-72 | 72" | 44" | 2 | 8" | 520 lbs |
| OBG1-64 | 64" | 47" | 2 | 8" | 656 lbs |
| OBG1-72 | 72" | 47" | 2 | 8" | 685 lbs |
| OBG1-80 | 80" | 47" | 2 | 8" | 735 lbs |
 |
|
