Buffalo Turbine Debris Blowers
Buffalo Turbine Debris Blowers

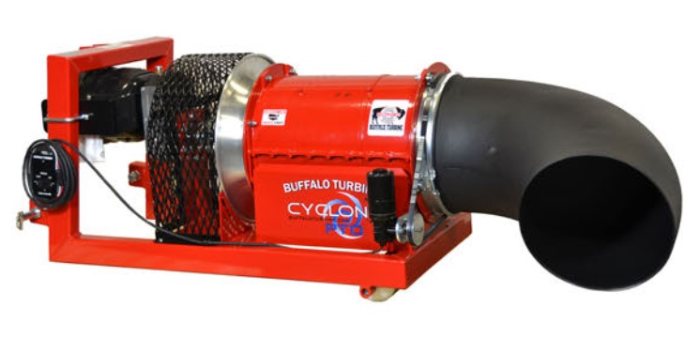

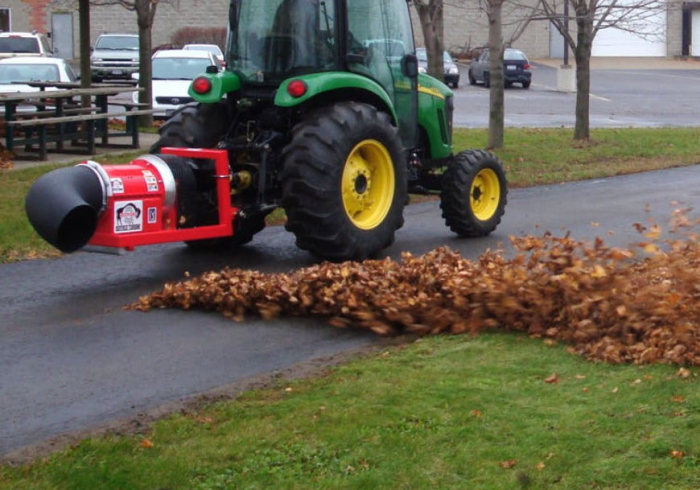

Cyclone PTO Debris Blowers
The Cyclone PTO is the industries first turbine style PTO driven debris blower. The Cyclone PTO requires only 20 hp at the PTO, making this machine practical for most medium to large size tractors. The Cyclone PTO has a direct-drive gear box, greatly reducing daily / weekly maintenance at a weight of only 250 pounds. The Cyclone PTO has the performance of the Cyclone KB4 without an additional engine to service.
- 360 degree 12v nozzle rotation from operators position
- Nozzle Options for specific applications
- Heavy-duty frame construction
- Direct-Drive gear box for minimal maintenance
- 1-piece impact resistance polymer nozzle

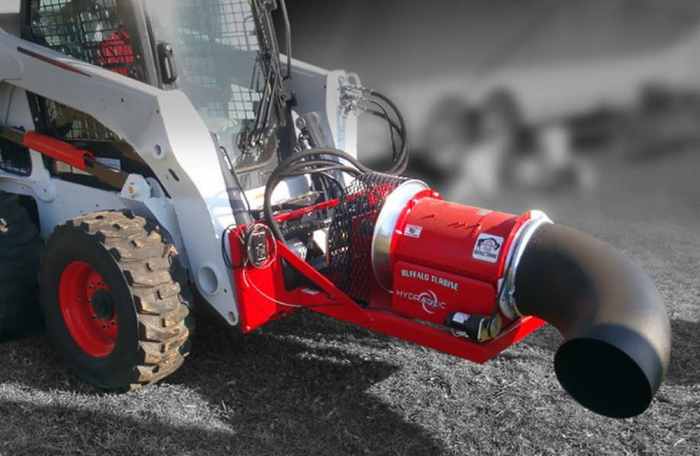

Hydraulic Debris Blowers
The Hydraulic Debris blowers are the first of their kind, featuring a proprietary manifold setup allowing for versatility for various flow rates. With an ideal flow rate of 16 gallons per minute, the hydraulic debris blowers can be run off of most skid-steer / utv hydraulic systems. The hydraulic debris blower comes standard with skid-steer style quick-attach bracket however the machine can be ordered as a skid as well.
- 360 degree 12v nozzle rotation from operators position
- Nozzle Options for specific applications
- Heavy-duty frame construction
- 1-piece impact resistance polymer nozzle
- Various power options (standard and high speed)

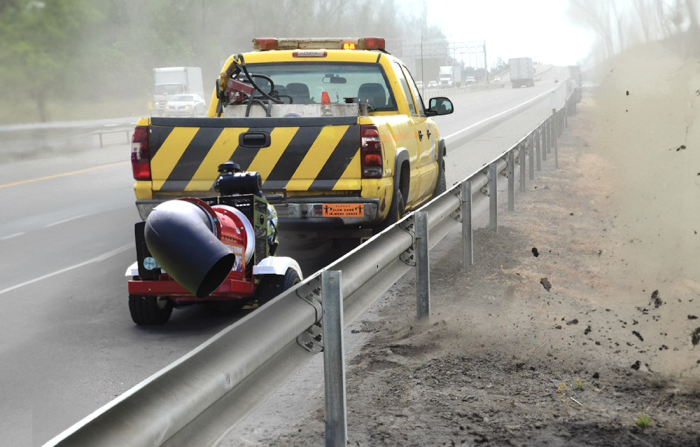

Tow-Behind Debris Blowers
The Buffalo Turbine Tow-Behind Debris blowers are the “work horses” of the debris blower industry. All of the tow-behind units are self-contained systems that only require fuel (gas or diesel) and a tow vehicle for full operation. Utilizing a pin-hitch assembly, the tow-behind systems allow the operator increased versatility to attach to many different vehicle/machine types. The tow-behind units all have bolt-on trailer packages that can be easily removed for the ability to skid-mount the machine in a bed of a Gator, pickup truck or UTV. Make quick work of any debris problem with our complete line of tow-behind debris blowers. Tow-behind systems are available in different horsepower ratings as well as gasoline and diesel options. With six tow behind models available Buffalo Turbine has models to meet many budgets and needs.
Cyclone PTO Model
| Model | BT-CPTO |
| Control | 12V wired 360° Nozzle Control |
| Overall Length w/Nozzle | 63" |
| Overall Width | 22" |
| Height | 24" |
| Weight | 245 lbs |
| Input Power | Direct Drive Gearbox |
| Max. Input RPM | 540 rpm |
| Max. Output RPM | 3780 rpm |
| Outlet Size | 12" |
Hydraulic Models
| Model | BT-HY3HS | BT-HY3 | BT-HYSS3 | BT-HYSS3HS | BT-HY3HSX2 |
| Input Power | Hydraulic Motor | Hydraulic Motor | 2 Hyd. Motors | ||
| Max. Input RPM | 4100 rpm | 3600 rpm | 3600 rpm | 4100 rpm | 4100 rpm |
| Outlet Size | 12" | 12" | 12" | 12" | 5.5" x 15" |
| Frame Length | 35" | 35" | 39" | 39" | 35" |
| Overall Length w/Nozzle | 59" | 64" | 64" | 64" | 59" |
| Width | 28.5" | 28.5" | 46" | 46" | 57" |
| Max Height w/Nozzle Upright | 32" | 32" | 32" | 32" | 32" |
| Weight | 215 lbs | 215 lbs | 300 lbs | 300 lbs | 650 lbs |
| Nozzle Rotation | 360° | 360° | 360° | 360° | 360° |
| Minimum Hydraulic Pressure | 3100 psi | 2900 psi | 2900 psi | 3100 psi | 3100 psi |
| Max Hydraulic Flow | 40 gpm | 40 gpm | 40 gpm | 40 gpm | 50 gpm |
Tow-Behind Models
| Model | BT-CYC8KK | BT-CKB23 | BT-CKB6 | BT-MEGA2 | BT-CYC3SQ | BT-D1003 |
| Engine | 14 hp Kohler | 23 hp Kohler | 26.5 hp Kohler | 40 hp Kohler | 37 hp Kohler | 23 hp Kohler |
| Fuel Type | Gasoline | Gasoline | Gasoline | Gasoline | Gasoline | Diesel |
| Control | 12V wired 360° Nozzle Control | 12V wireless w/ romote start, throttle control, 360° nozzle control | 12V wireless w/ throttle control, 360° nozzle control | |||
| Overall Length w/Nozzle | 102" | 112" | 112" | 112" | 112" | 112" |
| Overall Width w/Tires | 44" | 48" | 48" | 48" | 66" | 55" |
| Height | 37" | 39" | 39" | 39" | 43" | 54" |
| Weight | 360 lbs | 470 lbs | 470 lbs | 460 lbs | 800 lbs | 800 lbs |
| Outlet Size | 12" | 12" | 12" | 12" | (2) 12" | 12" |
 |
|
