Pequea Dump Trailers
Part #: Pequea-DTrailer

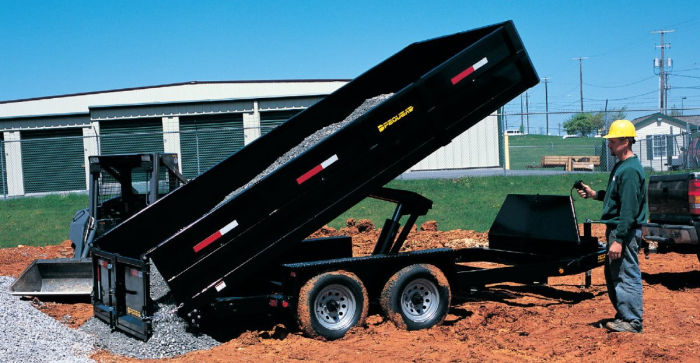

Pequea low profile dump trailers offer the ability to haul your equipment to the job and then use it to fill the dump body with a monster payload.
Details
Files
Pequea Dump Trailers
Pequea low profile dump trailers offer the ability to haul your equipment to the job and then use it to fill the dump body with a monster payload.
 |

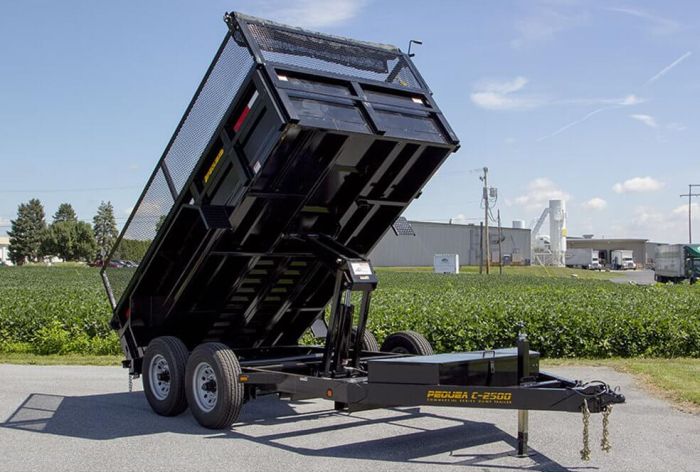

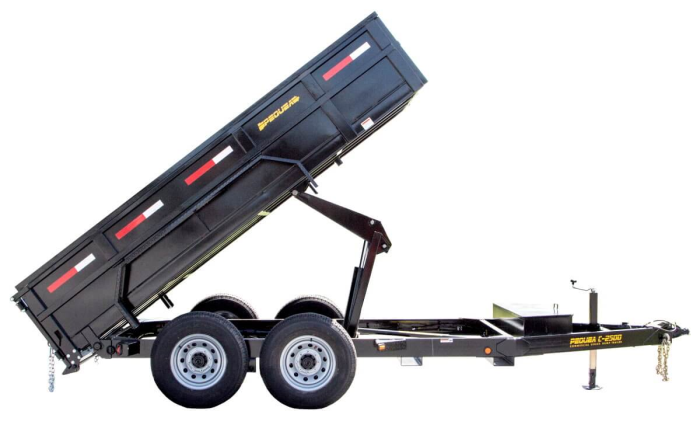

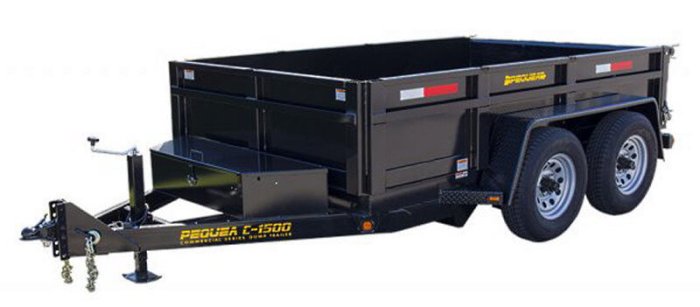

C1500 Dump Trailers - The C1500 is a low profile commercial dump trailer with a 74″ bed width and is available in a 10′ bed length. The C1500 comes with 2 6K 6Bolt for a 10,000 GVWR. C2500 Dump Trailers - The C2500 is a low profile commercial dump trailer with a 78″ bed width and is available in a 12′ and 14′ bed length. The axles are custom selected to suit your needs–this trailer can be configured with a 10,000, 12,000, or 14,000 GVWR. |
| C1500 Series | C2500 Series | |||
| GVWR | 10,000 lb | 10,000 lb | 12,000 lb | 14,000 lb |
| Bed Length | 10' | 12' or 14' | 12' or 14' | 12' or 14' |
| Bed Width | 74" | 78" | 78" | 78" |
| Bed Height (Off Ground) | 26" | 22" | 22" | 22" |
| Main Frame | 5" x 6.7 lb Structural Channel |
7" x 9.8 lb Structural Channel | ||
| Axles | (2) Dexter 6K 6 Bolt | (2) Dexter 6K 6 Bolt | (2) Dexter 6K 8 Bolt | (2) Dexter 7K 8 Bolt |
| Suspension | Slipper Leaf Springs | Slipper Leaf Springs | ||
| Wheels | 6 Bolt 15" | 6 Bolt 15" | 8 Bolt 16" | 8 Bolt 16" |
| Tires | 225/75 D15 | 225/75 D15 | 235/80 R16 | 235/80 R16 |
| Hitch | Adj. 2-5/16" Ball Coupler | Adj. 2-5/16" Ball Coupler | ||
| Jack | 7,000 lb Drop Leg | 10,000 lb Drop Leg | ||
| Brakes | Standard - Both Axles | Standard - Both Axles | ||
| Weight | 3100 lbs | 12' = 2850 lbs, 14' = 4400 lbs | ||
 |
|
