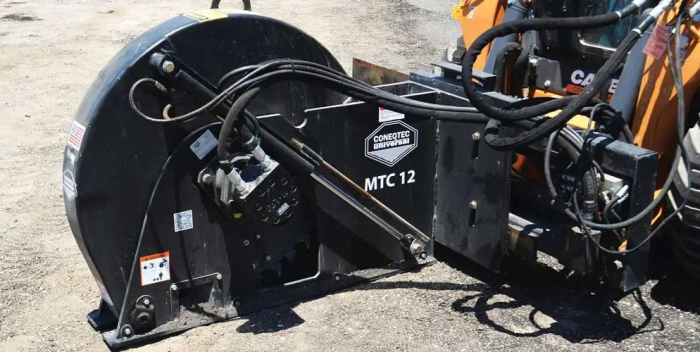

Coneqtec Microtrench Cutter

The MTC Microtrench Cutter was designed in response to the growing need to lay thousands of miles of cabling in asphalt and concrete for the communication infrastructure. This fiber-optic network is the new utility that will require new lines, repairs and upgrades just as roads and other utilities do.

Heavy-Duty Construction - All steel construction with a heavy-duty, direct drive motor. Made in the USA.

Electro-Hydraulic Controls - All functions are operated from within the cab utilizing the skid steer’s electro-hydraulic controls. Cuts are made above existing utilities. The depth gauge allows operators to know exactly how deep they’re cutting. The controls also operate power/torque and side shift.

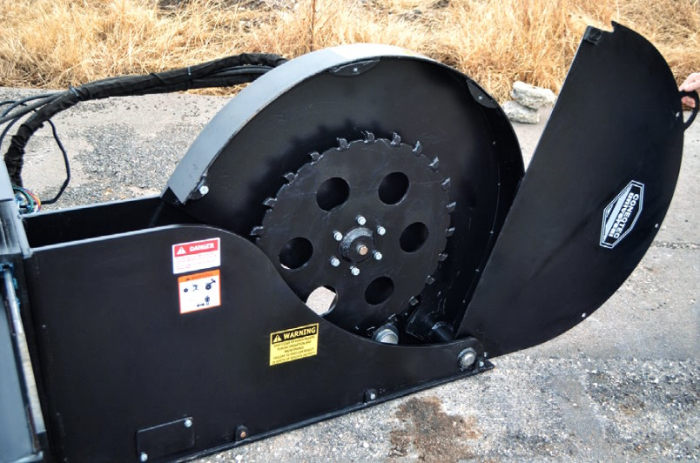

Steel Blade with Quick Access Panel - The heavy-duty steel cutting wheel has a quick access panel for servicing. The wheel is mounted with 6 bolts that can be easily changed out with a standard ratchet or wrench. The self-sharpening cutting pic teeth are carbide tipped and are replaceable (.5" width wheels require the teeth to be fixed to make such a narrow cut).

Skids and Vacuum Port - Adjustable skid shoes help make a clean cut and leave a smooth surface. The integrated vacuum port option can be connected to a vacuum system to minimize leftover spoil. Often, especially in highway settings, the cutter is followed by either an angle broom to brush the the debris to the side or a pickup broom for removal.

The Attachment Advantage - Utilizing the owner’s skid steer, this attachment is 1/6 to 1/10 the price of other dedicated microtrenchers and requires less maintenance. Many competitor models place the cutting wheel behind the operator. However, skid steer attachments reduce operator strain by allowing them to face forward at all times, and they are immediately aware if the cutter head encounters any trouble.
