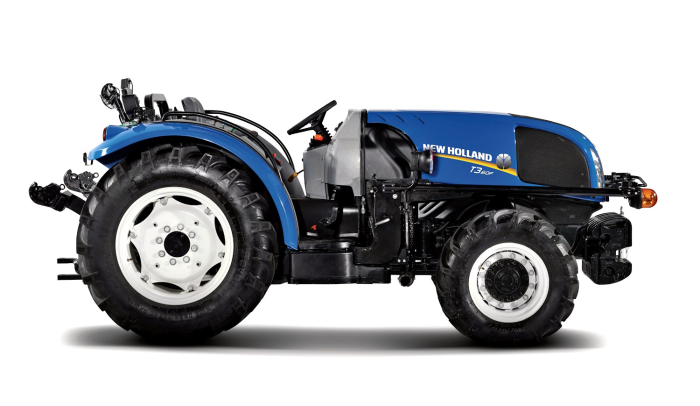

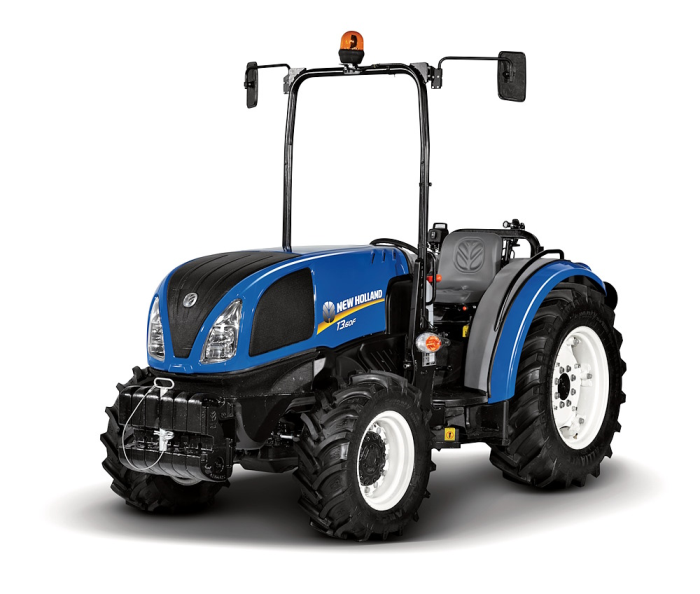

New Holland T3F Compact Tractor

Part #: NH-T3F
A COMPACT, COMFORTABLE, HEAVY-DUTY TRACTOR FOR NARROW ROWS. Few specialty tractors can match the all-around versatility of T3F compact specialty tractors. Their compact, narrow dimensions give you an edge when working in confined spaces, offering excellent performance for spraying, cultivation and more.
Details
Files

New Holland T3F Compact Specialty Tractor



COMPACT, STREAMLINED DESIGN

With a narrow frame and a low, overall height of only 54 inches to the top of the steering wheel, T3F tractors navigate easily in between precious crops as well as under low branches and overhangs.

POWERFUL VERSATILITY

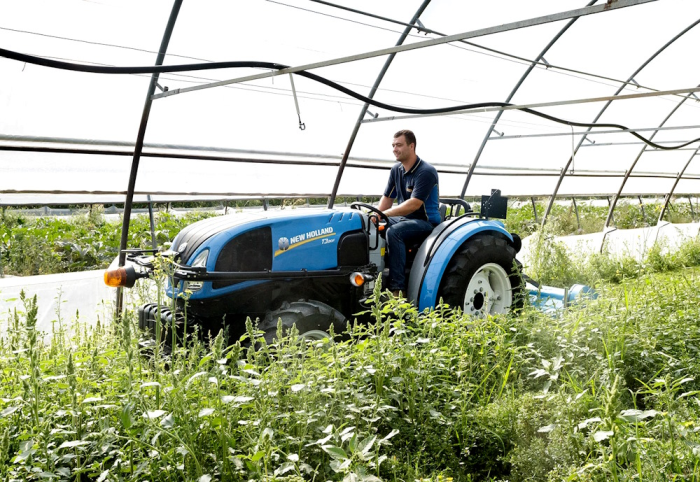

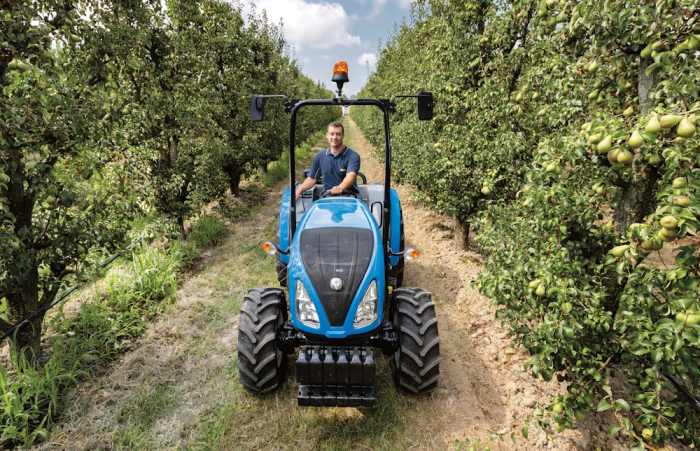

T3F tractors are ideal for powering rotary cutters and small sprayers in large operations. They are also a prime choice for small orchards, hop yards, vineyards, nut groves, blueberry farms, poultry houses and any operation where you need a compact utility tractor.

HEAVY-DUTY POWER IN AN AGILE PACKAGE

T3F compact specialty tractors pack 40 to 60 PTO horsepower in a heavy-duty, 5,000-pound design without sacrificing maneuverability or agility.

A GREAT VIEW COMES STANDARD

The sloped hood and curved rear fenders provide excellent all-around visibility from the comfortable straddle deck platform.



  T3.60F T3.70F T3.80F
Engine
   Gross HP 54 hp 64 hp 74 hp
   PTO HP 40 hp 50 hp 60 hp
   Displacement 179 in³ 179 in³ 179 in³
Transmission
   Standard 12x12 Mechanical Shuttle
Dimensions
   Minimum Overall Width 57" 57" 57"
   Overall Length 143" 143" 143"
   Height, to top of ROPS 97" 97" 97"
   Height, to top of Steering Wheel 51" 51" 51"

   Click the "Files" tab above to download full specifications
