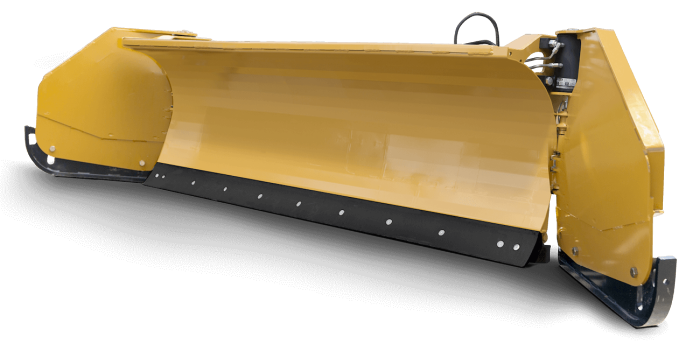

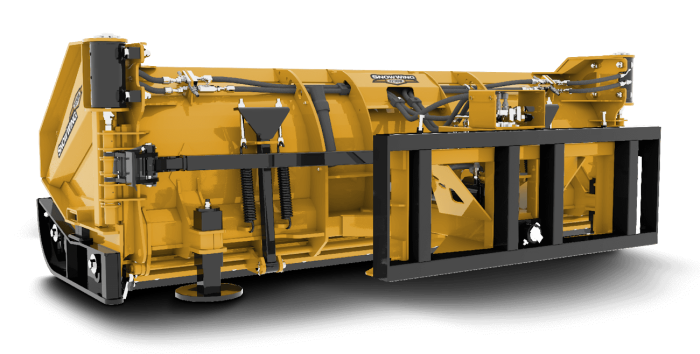

HLA Snow Wing
Part #: HLA-Wing
Open from box blade to straight blade and get that extra clearing width on the fly. But it doesn't stop there: The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving limitless control within the massive 180° rotation
Details
HLA Snow Wing
 |
 |
Open from box blade to straight blade and get that extra clearing width on the fly. But it doesn't stop there: The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving limitless control within the massive 180° rotation. This means you can use your blade on an angle with one end open and the other parallel to the direction you are driving. Get closer to buildings and parking stones without risking damage. Then rotate the endplates into a reverse box blade and drag the snow away for full clearing in the tightest of spaces.
For Skid Steers & Ag Tractors
| 3230W Series | ||
| Available Widths (Closed) | 72", 84", 96", 108", 120" | |
| Available Widths (Open) | 132", 144", 156", 168", 180" | |
| Wing Width | 30" | |
| Moldboard Height | 30" | |
| Max Operating Weight | 13,000 lbs | |
| Cutting Edge | Steel or Rubber | |
| Angling | Hydraulic | |
Models for Ag Tractors
| 4203W Series | 4205W Series | |
| Available Widths (Closed) | 96", 108", 120", 144", 168" | 96", 108", 120", 144", 168" |
| Available Widths (Open) | 168", 180", 192", 216", 240" | 216", 228", 240", 264", 288" |
| Wing Width | 36" | 60" |
| Moldboard Height | 34" | 34" |
| Max Operating Weight | 13,000 lbs | 25,000 lbs |
| Cutting Edge | Steel or Rubber | |
| Angling | Hydraulic | Hydraulic |
 |
