Horst Header Wagons

Part #: Horst-HWagon
Trailing your combine head with a Horst CHC Wagon keeps you moving with safe and easy road travel. The no-sway design of Horst's running gear provides a smooth trailing wagon that eliminates the zig-zag action through tapered roller bearings on all the main pivot points.
Details
Files

Horst Header Wagons



Header Wagons

Productivity often hides in the details, such as getting from one field to another quickly. Trailing your combine head with a Horst CHC Wagon keeps you moving with safe and easy road travel. The no-sway design of Horst's running gear provides a smooth trailing wagon that eliminates the zig-zag action through tapered roller bearings on all the main pivot points. This includes the king-pins and steering pivot joint. The predictable trailing movement of Horst's Header Wagons is especially important for combine operators who don't have a clear rear-view and need to rely on a steady trailing wagon.



Features:

  • Tapered roller bearings on king pins for absolute no sway trailing
  • Includes 2 tool free configurable universal pads (standard pads on CHC models)
  • 2 ratchet straps to secure load
  • Safety chains
  • Length adjustable hitch with auto lock for simple hook up

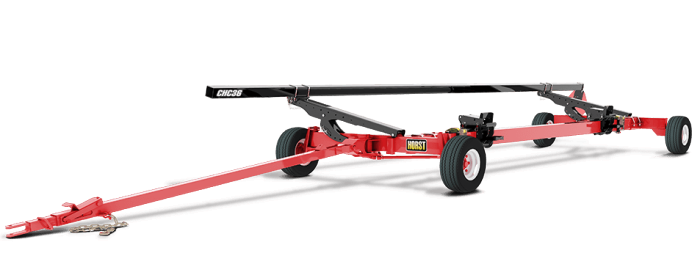

CHC Header Wagons

  • Fits 25' to 35' Heads
  • Regular Duty 2 Wheel Steer
  • 10,000 lbs Maximum Gross Capacity
  • Choice of Rim and Tire sizes
  • Optional universal pads, road signal light kits, heavy duty bottom rail, Honey Bee AirFLEX pad adapter kit

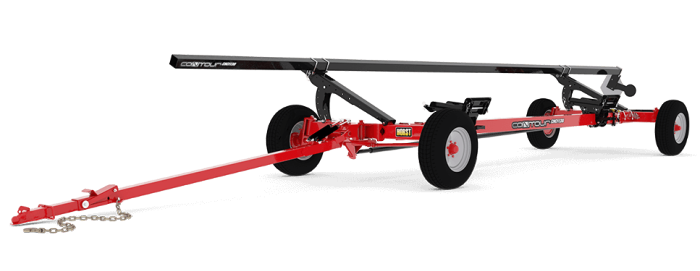

CHCF Header Wagons

  • Fits 30' to 45' Heads
  • Contour 4 Wheel Steer
  • 15,500 lbs Maximum Gross Capacity
  • 30' wheelbase has reinforced bottom rail
  • Double spring balancer
  • Optional road signal light kits, heavy duty bottom rail, Honey Bee AirFLEX pad adapter kit

CHCFE Header Wagons

  • Fits 30' to 45' Heads
  • Contour 4 Wheel Steer
  • 10,400 lbs Maximum Gross Capacity
  • 2 Wheel electric brakes (on rear axle)
  • 30' wheelbase has reinforced bottom rail
  • Light kit (red lenses)
  • 2-5/16 ball hitch and safety chain
  • Double spring balancer
  • 235/85 R16 (F Range) Highway Trailer tire on 16 x 8 x 6 rim
  • Optional fender kits, heavy duty bottom rail, Honey Bee AirFLEX pad adapter kit

CHCFRF Header Wagons

  • Fits 30' to 45' Heads
  • Contour Cross Country (4 Wheel Steer)
  • 14,000 lbs Maximum Gross Capacity
  • 4 Wheel electric brakes
  • 4 Wheel independent suspension
  • 30' wheelbase has reinforced bottom rail
  • 235/85 R16 (F Range) Highway Trailer tire on 16 x 6 x 8 rim
  • Wheel fenders
  • Light kit (red lenses)
  • 2-5/16 ball hitch and safety chain
  • Vehicle Identification Number for licensing
  • Double spring balancer
  • Optional heavy duty bottom rail, Honey Bee AirFLEX pad adapter kit

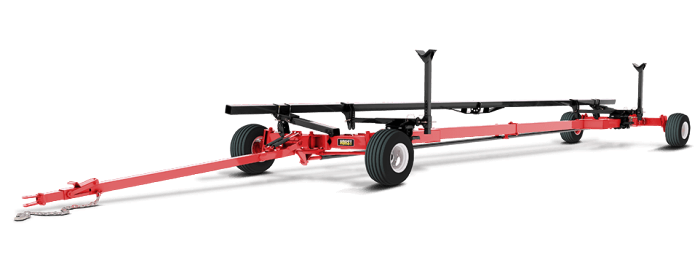

CHCFX Header Wagons

  • Fits 30' to 50' Heads
  • 4 Wheel Steer Draper Header Wagon
  • 24,000 lbs Maximum Gross Capacity
  • 4 Wheel electric brakes
  • Double spring balancer
  • 235/75 R17.5 (16 ply) tire on 17.5 x 6.75 x 8 rim
  • Rear lights with brake and turn signals
  • 2-5/16 ball hitch and safety chain
  • 7 Pin RV / brake light plug
  • 12,000 lbs Axles with 8 bolt high speed automatic hubs
