MacDon Combine Draper Headers

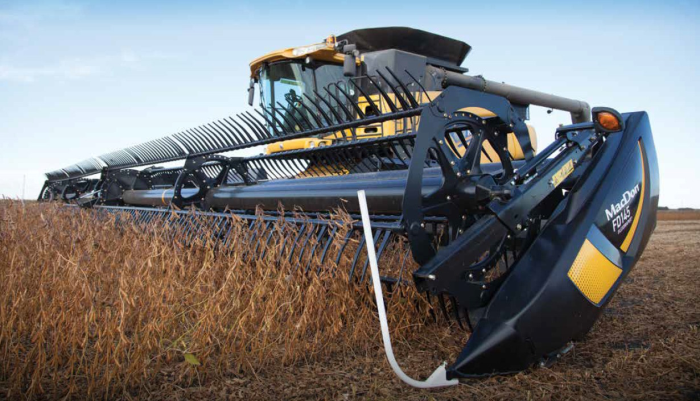

D1 Draper Headers

Next level crop recovery performance. Most combine headers perform well in perfect harvesting conditions, but when was the last time you had perfect conditions? MacDon Draper Headers are designed to maximize productivity in the most challenging harvesting situations. From our Active Float System that keeps our headers true-to-the-ground, to the outstanding pickup performance of our reel, to the combine optimization and increased capacity of our FeedMax crop feeding system. It all adds up to getting the most from your field, in any crop, in any condition, on any combine.

• Available Sizes - 25', 30', 40', 45'
• Knife: Type / Drive / Speed - Single or double knife (depending on size and application) / Hydraulic, MacDon design enclosed oil bath wobble box(es) / Single knife combine 1050 to 1400 spm, double knife combine 1100 to 1700 spm (speed varies depending on header size, faster knife speed on smaller headers or double knife headers)
• Guard Types Available - ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down
• Reel: Type / Drive / Speed / Fingers - Pick-up Reel, six bats, one-piece (single) or two-piece (double), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 11.4" length, wear-resistant HD plastic, 4" spacing
• Conveyor: Type / Drive / Speed / Delivery - 50" / Hydraulic / FM200 (Combine Float Module) - 0 - 687 ft/min / 54.9" - 60.0"
• Field-Installed Options - EasyMove™ Transport System, Upper Cross Auger, VertiBlade™ Vertical Knife, stabilizer wheels, lateral tilt automatic header height control, Sunflower attachment

D2 Draper Headers

Durability. Capacity. Speed. MacDon’s 2 Series Combine Headers deliver all the latest performance and innovation that MacDon offers. The D2 Drapers boast an all-new frame that features a super structured five-sided backtube. This solid backbone is ready to handle up to 20% increased capacity* from an ultra-deep 50-inch draper deck+. And that deeper draper gets filled up a lot quicker thanks to MacDon’s ClearCut™ High-Speed Cutting System. Wrap it all up with MacDon’s rock-solid reliability, and it’s clear to see how MacDon 2 Series Combine Headers get you more from every acre.

• Available Sizes - 25', 30', 41', 45'
• Knife: Type / Drive / Speed - Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es) / 1200-1400/1500 spm, varies depending on header size
• Guard Types Available - Pointed DHT (double heat-treated), stub SM (sheet metal hold-down, forged bottom guard), stub F (forged top and bottom)
• Reel: Type / Drive / Speed / Fingers - Pick-up reel, five or six bats, two-piece (double) or single, flip-over design, cam-leading finger control / Hydraulic / Combine 0 to 67 rpm (varies depending on combine model) / HD plastic, 6" spacing, 11" length
• Conveyor: Type / Drive / Speed / Delivery - 41.6" wide 24 oz rubber skim-coated drapers, reversible double V-guide with tracking, integral seal on leading edge / Combine 0 to 636 ft/min / Mechanical deck shift, opening width ranging from 60.6" to 76.7"
• Field-Installed Options - Upper cross auger, stabilizer wheels, in-cab side draper speed control, slow speed transport, lateral tilt automatic header height control
