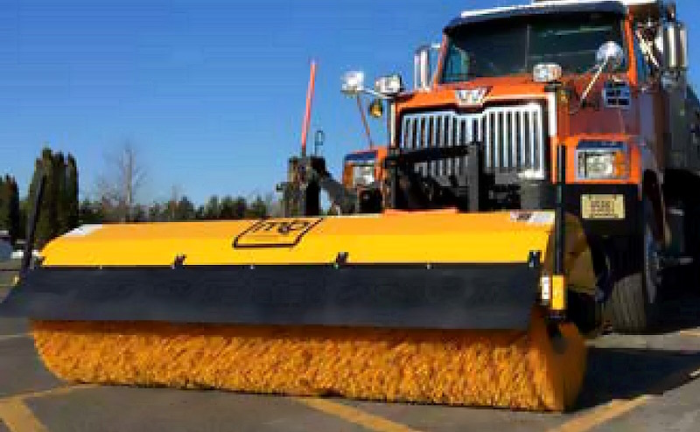

M-B Truck Mounted Broom
Part #: MD-TBroom
Created for large trucks, the TKH-TR has many size available options to work for use on any job. Clearing snow, dirt and debris in any season can now be done with your large truck and this powerful broom.
Details
M-B Truck Mounted Broom
Created for large trucks, the TKH-TR has many size available options to work for use on any job. Clearing snow, dirt and debris in any season can now be done with your large truck and this powerful broom.
- Available in sweeping width from 7' to 12'.
- Hydraulically driven rotary angle broom.
- Hydraulic swing: 30 degrees left and right
- Storage stands
- Brush head lifted by prime mover
- Brush hood manufactured from 16-Gauge steel with formed edge fold for additional strength
| Model | TKH-TR |
| Available Widths | 7', 8', 9', 10', 11', 12' |
| Brush Diameter | 32" |
| Core Diameter | 10" |
| Hydraulic Swing | up to 30° L/R |
| Broom Speed | up to 250 rpm |
| Drive | Standard dual low-speed, high-torque, 18 c.i.d hydraulic motors |
| Hyd. Flow Required | 16-44 gpm |
| Angle Control | Bulkhead or E/H Valve |
| Mounting | Adapts to existing plow mount |
 |
|
