New Holland TS6 Tractors
Part #: NH-TS6
New Holland TS6 Series II tractors are anything but basic. They are rugged, comfortable, and flexible. The fact that they are affordable is an added bonus.
Details
New Holland TS6 Series II Tractors
POWER THAT'S EFFICIENT, COMFORTABLE AND AFFORDABLE
NEW TS6 Series II tractors are the new face of standard tractors, yet these tractors are anything but basic. They’re big on power and efficiency, loaded with comfort, and ready to handle your toughest tasks. In short, they’re your best choice if you’re looking for a strong, modern and affordable all-purpose tractor.YOUR CHOICE OF CAB, ROPS, 2WD, 4WD

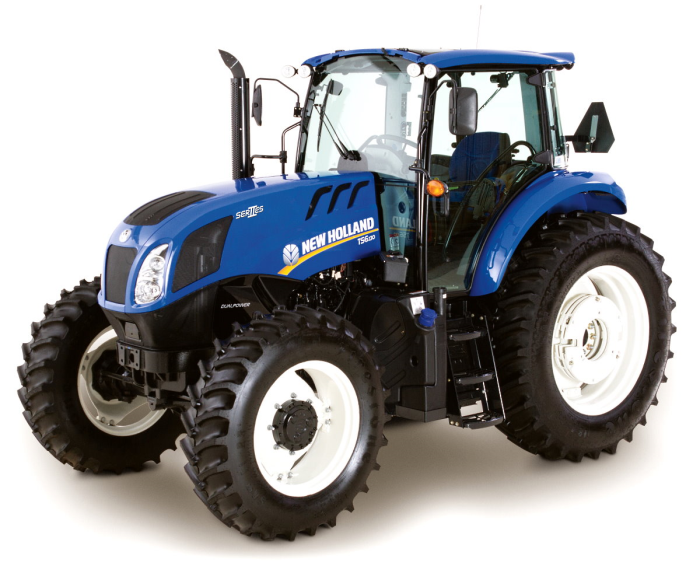

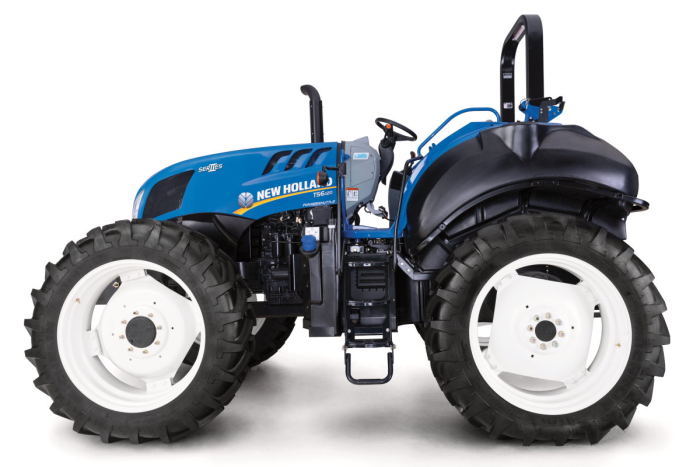

Four TS6 models range from 90 to 115 PTO horsepower and fit a wide range of farming practices. Choose a model with two- or four-wheel drive, with an open ROPS platform or New Holland’s VisionView™ cab. For vegetable and specialty crops, look to the TS6.120 High-Clearance model.AVAILABLE IN A PLUS OR VALUE PACKAGE
You can pick and choose your options if you like, or choose from two preferred customer packages.TS6 VALUE tractors feature an 8x8 transmission with power shuttle and a 19-mph transport speed, with 13-gpm implement hydraulics and 3,735-pound three-point lift capacity.
TS6 PLUS models feature higher specifications and more deluxe features to increase comfort and productivity. PLUS models offer increased 22-gpm hydraulic capacity and 5,499-pound hitch lift capacity, and double the forward speeds and a faster 25-mph travel speed with a 16x8 transmission. The PLUS cab also features added comfort and convenience with an air suspension seat with swivel, plus instructor seat, rear wiper/washer, radio, and an overhead high-visibility panel.
COMPLETE LOADER READY OPTION
You can order both TS6 Plus and Value tractors with complete factory installation of everything needed for a matching New Holland front loader. The loader ready option includes the loader joystick, two-function mid-mount valve with hoses and couplers to attach to the loader hydraulics, TPS mounts and grill guard.
| TS6.110 | TS6.120 | TS6.130 | TS6.140 | TS6.120 High Clearance |
|
| Engine | |||||
| PTO Horsepower | 90 hp | 96 hp | 105 hp | 115 hp | 96 hp |
| Gross Engine Horsepower | 110 hp | 119 hp | 130 hp | 139 hp | 119 hp |
| Displacement | 274 in³ 4 cyl | 274 in³ 4 cyl | 274 in³ 4 cyl | ||
| Emissions | Tier 4B/Final | Tier 4B/Final | Tier 4B/Final | ||
| Transmission | |||||
| Standard | 8x8 Hydraulic Shuttle | ||||
| Optional | 8x8 Mechanical Shuttle | ||||
| Optional | 16x8 Hydraulic Shuttle | -- | |||
| PTO & Hitch | |||||
| Base PTO | 540/1000 rpm | 540/1000 rpm | 540/1000 rpm | ||
| 3-Point Lift Capacity | 3735 lbs | 3735 lbs | 3735 lbs | ||
| Hydraulics | |||||
| System Type | Fixed displacement pumps with combining.diverter vavle | ||||
| Implement Pump | 13 gpm | 13 gpm | 13 gpm | ||
| Auxiliary Pumps | 9 gpm | 9 gpm | 9 gpm | ||
| Dimensions (4WD) | |||||
| Height, Top of Cab | 110.2" | 110.2" | 121.9" | ||
| Height, Top of ROPS | 117.3" | 117.3" | 128.9" | ||
| Overall Length | 184.7" | 184.7" | 192.9" | ||
| Wheelbase | 99.2" | 103.9" | 107.5" | ||
 |
