Jacto Vortex Boom Sprayers

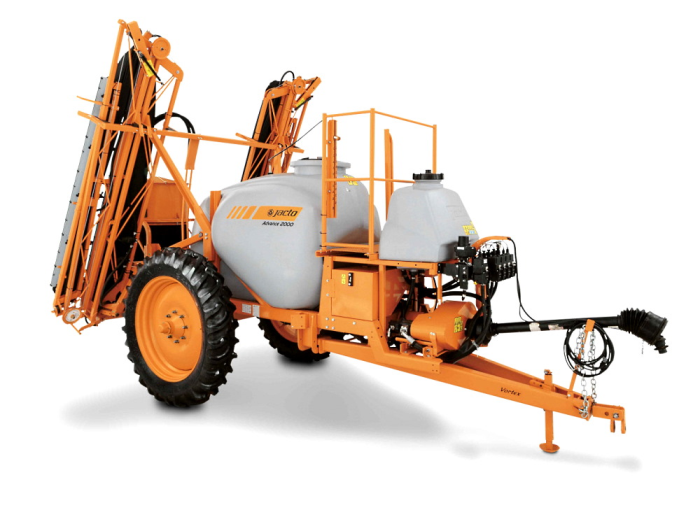

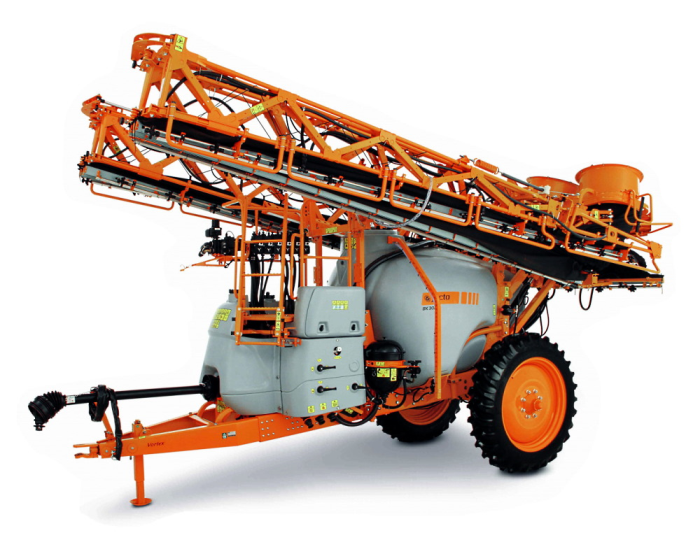

Jacto Advance Vortex Boom Sprayers
The Wind Does Not Interrupt the Work - The drift reduction avoids the interruption of work on stronger wind days.

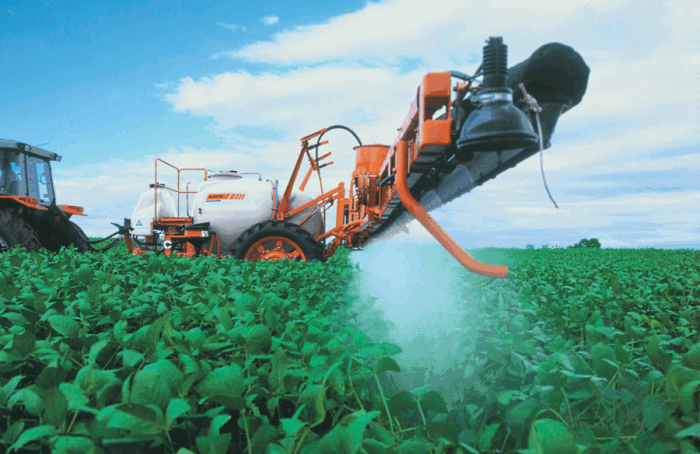

Better Penetration and Coverage in the Plant - The air of boom in Advance vortex , in addition to improving the penetration of the pesticide inside the plantation, produces excellent coverage, even on the underside of the leaf.
High Resistance and Practicality - The 528 or 792 gallon tank allows for long working hours. Made of polyethylene, with a polished finish on the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.
Pressure in the Right Measure - For better spray control, the Advance Line has several options for spray commands and boom activation. The farmer can choose between the masterflow manual, masterflow cable, masterflow eletric and masterflow eletronic commands.
| Model | Advance 2000 AM18 Vortex | Advance 3000 AM18 Vortex | BK 3024 Vortex |
| Tank Capacity | 528 gal. | 792 gal. | 792 gal. |
| Clean Water Tank Capacity | 4 gal. (26 gal. optional) | 53 gal. | 80 gal. |
| Tank Material | Polyethylene | Polyethylene | Polyethylene |
| Chemical Solution Agitation | Mechanical | Mechanical | Mechanical |
| Spray Pump Flow Rate | 26 or 40 gpm | 26 or 40 gpm | 40 or 79 gpm |
| Main Filter Capacity | 26 or 53 gpm | 27 or 53 gpm | 53 gpm |
| Boom Length | 59' | 59' | 79' |
| Boom Actuation | Hydraulic | Hydraulic | Hydraulic |
| Boom Working Height | 14"-52" | 23"-60" | 20"-79" |
| Fan Air Speed | 62 mph | 62 mph | 62 mph |
| Fan Air Volume | 388.4 cfs | 388.4 cfs | 477 cfs |
 |
|
