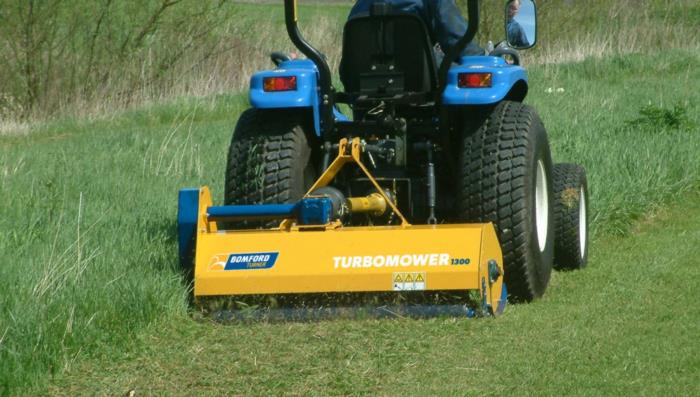

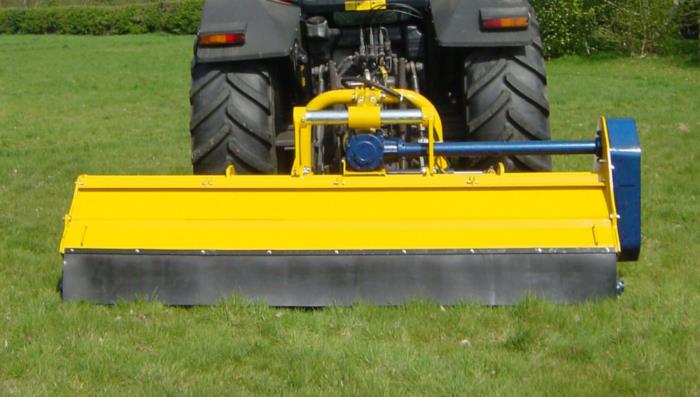

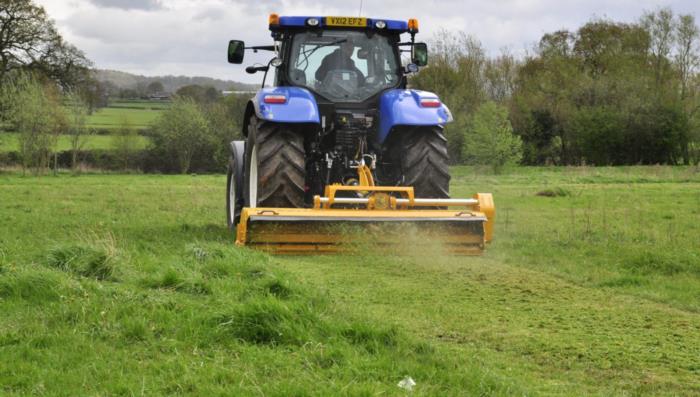

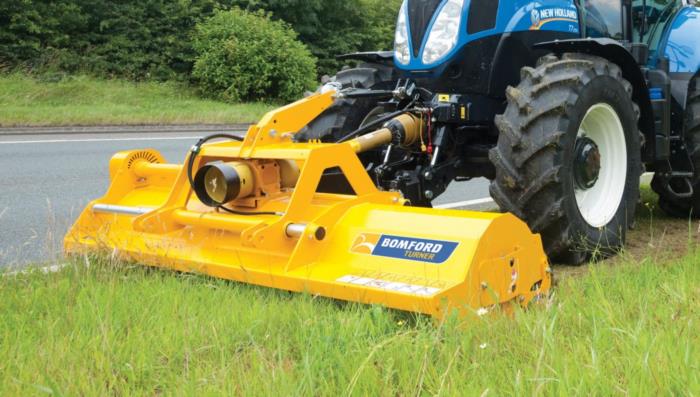

Bomford Turbo Mower
Part #: Bomford-TM
The Turbo Mower Elite, Euro, Open and Pro range offers operators a huge choice of cutting widths at very cost effective prices. A well designed and constructed range, the Turbo Mower is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
Details
Bomford Flail Mowers - Turbo Mower
The Turbo Mower Elite, Euro, Open and Pro range offers operators a huge choice of cutting widths at very cost effective prices. A well designed and constructed range, the Turbo Mower is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
- 4' 3" to 9' 2" cutting widths
- Front mount options
- Manual offset on 4' 3" & 4' 9" models
- Hydraulic offset standard on 6' 4" model and above
- Standard fitted roller and side skids
- Cat II three point linkage mounted
- Over run slip clutch protected
| Model | Elite 130 | Elite 150 | Elite 190 | Elite 225 | Elite 245 | Elite 270 |
| Working Width | 4' 3" | 4' 9" | 6' 4" | 7' 5" | 8' | 8' 10" |
| Cutting Height | 1.25"-4.5" | 1.25"-4.5" | 1.25"-4.5" | 1.25"-4.5" | 1.25"-4.5" | 1.25"-4.5" |
| Offset | Manual | Manual | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Fully Offset (Left of Center) | 15.75" | 15.75" | 15.75" | 15.75" | 15.75" | 15.75" |
| PTO Speed | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 540 rpm | 1000 rpm |
| Number of Flails | 18 | 20 | 24 | 28 | 30 | 34 |
| Power Requirement | 30-37 hp | 35-40 hp | 45-60 hp | 55-75 hp | 65-90 hp | 75-100 hp |
| Model | Euro 250 | Euro 280 | Open 250 | Open 280 | Pro 250 | Pro 270 | Pro 300 |
| Working Width | 8' 3" | 9' 2" | 8' | 9' 1" | 8' | 8' 10" | 9' 10" |
| Cutting Height | 1.25"-3.5" | 1.25"-3.5" | 1.25"-4.5" | 1.25"-4.5" | 1.75"-6.25" | 1.75"-6.25" | 1.75"-6.25" |
| Offset | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Fully Offset (Left of Center) | 19.25" | 19.25" | 19.75" | 19.75" | 15.75" | 15.75" | 15.75" |
| PTO Speed | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm |
| Front Mount | Standard | Standard | -- | -- | Standard | Standard | Standard |
| Number of Flails | 28 | 32 | 28 | 32 | 20 | 24 | 26 |
| Power Requirement | 65-110 hp | 75-110 hp | 65-110 hp | 75-110 hp | 68-80 hp | 80-120 hp | 90-135 hp |
 |
|
