RF Fixed Chamber Round Baler

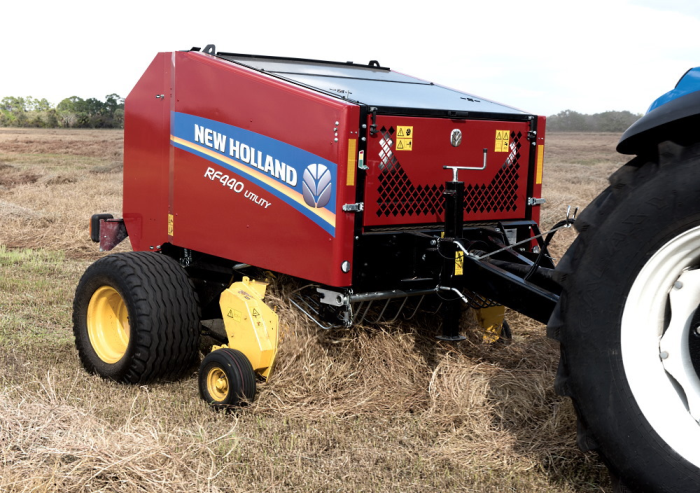

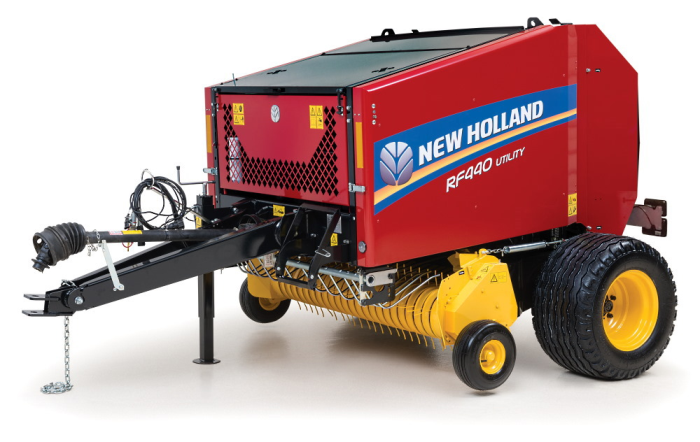

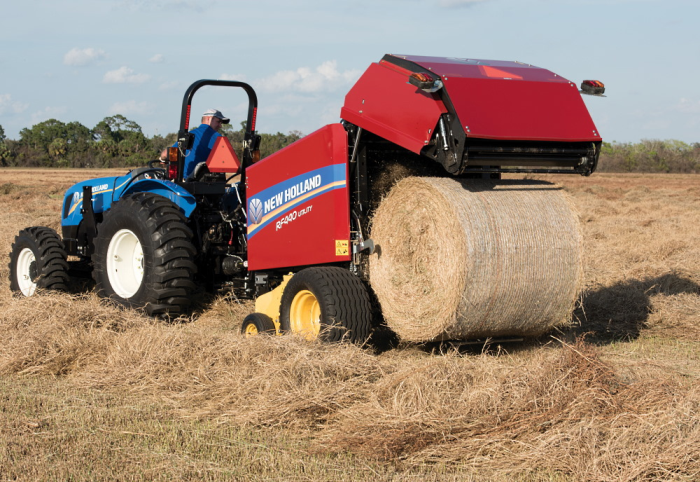

New Holland RF Fixed Chamber Round Balers
THE SIMPLE AFFORDABLE WAY TO MAKE QUALITY BALES
New RF Series fixed-chamber balers are simple, tough, affordable and easy to use, ensuring you can create quality bales in a wide range of conditions. These new balers are the perfect choice for smaller livestock farms, sundowners, and rural lifestylers, and a great alternative to a more premium variable-chamber silage machine.
THREE MODELS
Choose from two Utility models—the 4’x4’ RF440 or 4’x5’ RF450—each featuring a 2.0-meter pickup. Or, for even more capacity and high-moisture baling ability, choose the RF450 SuperFeed™ baler, which features a wider 2.25-meter pickup, an undershot rotor feeder and seven bale chamber rolls.
DESIGNED FOR SMALL TRACTORS
RF Utility hay balers were purposely developed for smaller, lower horsepower tractors, with minimal hydraulic flow capabilities. Only two hydraulic remotes are required--one for the pickup and one for the tailgate.
| Model | RF440 Utility | RF450 Utility | RF450 SuperFeed |
| Bale Size | |||
| Bale Diameter | 47" | 59" | 59" |
| Bale Width | 47" | 47" | 47" |
| Pickup | |||
| Width | 78.7" | 78.7" | 88.6" |
| Number of Tines / Tine Bars | 92 / 4 | 92 / 4 | 108 / 4 |
| Pickup Tines Per Row | 23 | 23 | 23 |
| Feeding | |||
| Type | Stuffer | Stuffer | 18.5" Rotor Feeder |
| Number of Augers | -- | 2 | 2 |
| Bale Formation | |||
| Tpye | 48 strokes/min | 48 strokes/min | 48 strokes/min |
| Density System | 28" | 28" | 28" |
| Number of Rollers | 1 roll & 34 bars | 2 rolls & 41 bars | 7 rolls & 29 bars |
| Wrapping | |||
| Wrap Material, Std | Twine | Twine | Twine |
| Wrap Material, Opt | Net, Twine/Net | Net, Twine/Net | Net, Twine/Net |
| Control | Auto-Wrap Bale Monitor | Auto-Wrap Bale Monitor | |
| Baler Dimensions | |||
| Length w/bale ejector | 141" | 152" | 148" |
| Height | 79" | 92.5" | 96.5" |
| Adjustable Track Width | 74.4"-80.7" | 74.4"-80.7" | 74.4"-80.7" |
| Minimum PTO Power | 40 hp | 50 hp | 85 hp |
 |
|
