Agrimetal Fairway Aerator

Part #: Agrimetal-FA
Agrimetal Aerators relieve compaction and help promote good drainage. Aeration opens the soil to let air, water, and nutrients reach the roots of your turf.
Details

Agrimetal Fairway Aerator

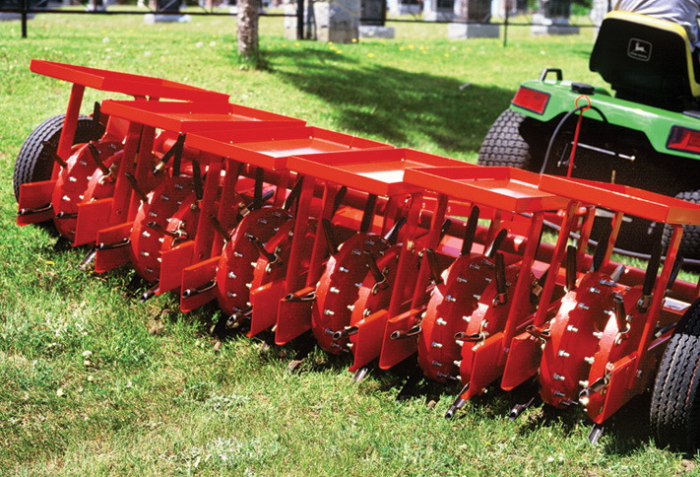

AgriMetal FA720 Fairway Aerators are designed for heavy duty use on your biggest aeration jobs. The design is simple, and proven. 12 cast iron wheels mounted on 6 axles work independently to follow contours and penetrate compacted areas. The 6 foot working width lets you cover up to 50 acres per day.



  • The FA720 is your perfect choice for aerating fairways, school grounds, sports fields, and parks! The FA 720 is available in a pull type and 3 point hitch versions.
  • The AgriMetal FA 720 features more up and down flotation than other competitive aerators. Sealed bearings mean you can work the machine instead of working to maintain it, and the powder paint process will keep your Aerator looking like new for years to come.
  • Six heads containing twp wheels float independently to follow your most demanding contours. Weight trays are standard to aid penetration on compacted areas.

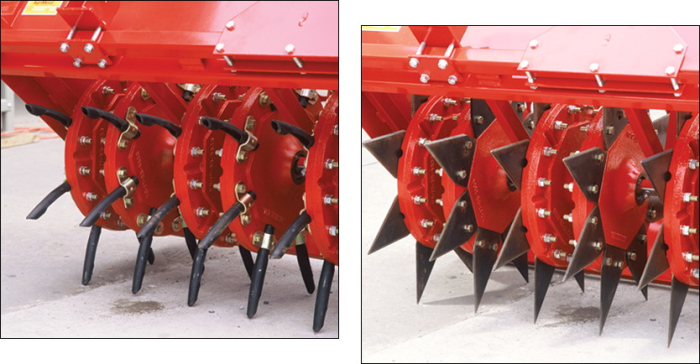

  • Wheels can be fitted with heavy wall 3/4" coring tines or rugged slicing knives if your customers demand coreless aeration. 8 tines or knives are standard per wheel with the option of doubling to 16.
  • All steel Welded construction frame with 6 pairs of individual floating arms. Each holds two 75 lb cast iron wheels.
  • Cast wheels hold 8 or 16 tines each and have sealed ball bearings.



  Pull Type 3-Pt Hitch
 Length 28" 38"
 Width 95" 80"
 Height 38" 30"
 Weight 1625 lbs 1456 lbs
 Aerating Wheels 12 - Cast Iron 12 - Cast Iron
 Tines 3/4" Coring Tines or 6" Slicing Knives
 Tractor Requirement 30 hp 35 hp
 Operating Speed 10 mph 10 mph
 Coring Depth up to 4" up to 4"
 Standard Configuration 8 Tines Per Wheel (96 total)
 Optional Configuration 16 Tines Per Wheel (192 total)
 Optional Configuration 8 or 16 Slicing Knives (96 or 192 total)
