Pequea Box Manure Spreaders
Part #: Pequea-BMS
With up to a 175 bushel capacity, Pequea manure spreaders are designed to withstand the demands of todays small farm. The manure spreader boxes are constructed of fully welded Cor-ten steel in 125 and 175 bushel capacity.
Details
Files
Pequea Box Manure Spreaders
With up to a 250 bushel capacity, Pequea manure spreaders are designed to withstand the demands of today's small farm. The manure spreader boxes are constructed of fully welded Cor-ten steel in 125, 175 & 250 bushel capacity. Our large PTO model manure spreaders include 2 speed gearboxes, with a neutral and cleanout setting. Pequea manure spreader options include fine spread pans, top beaters, and hydraulic end gates.
 |

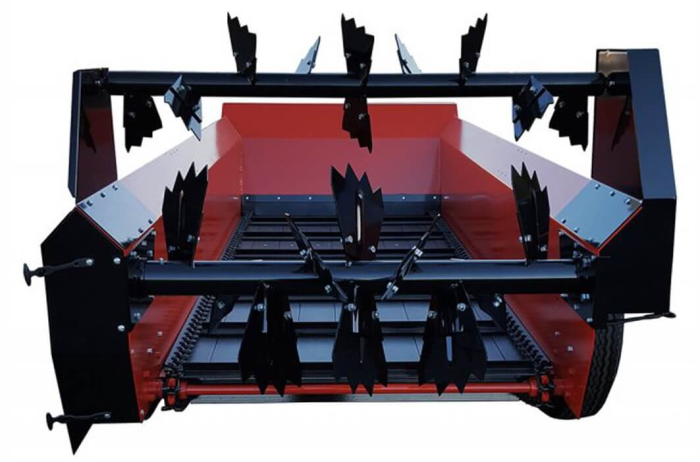

Eight aggressive beaters:
|
 |
Features:
|

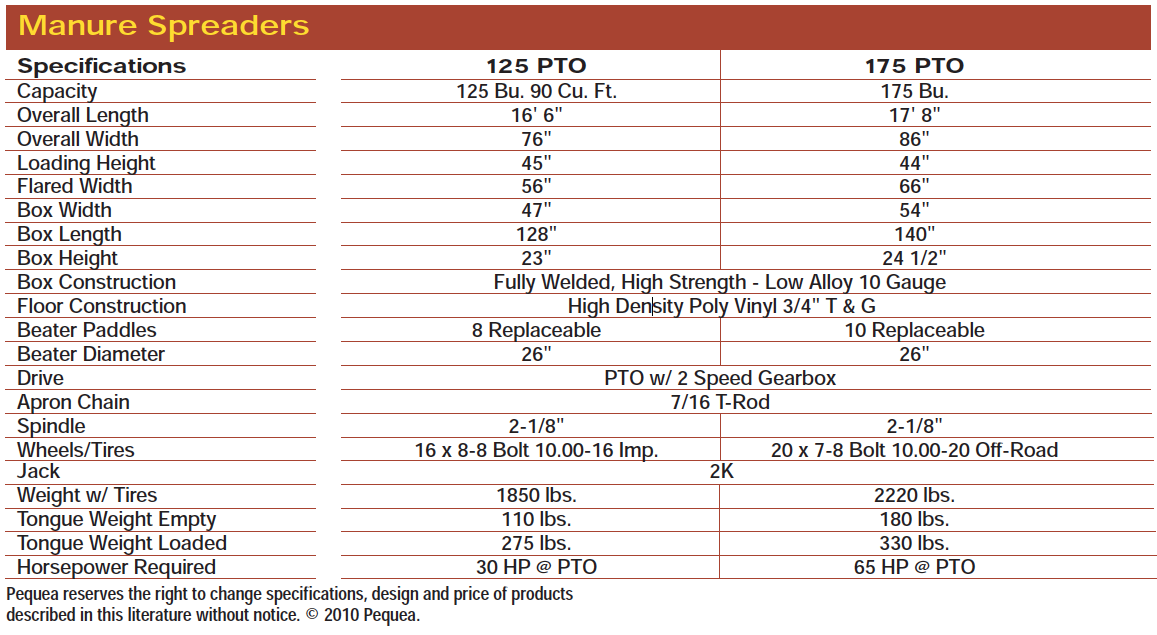

| Model | 125PTO | 175PTO | 250PTO |
| Capacity | 125 bu. / 90 cu.ft. | 175 bu. / 108 cu.ft. | 250 bu. / 128 cu.ft. |
| Loading Height | 45" | 44" | 44" |
| Overall Dimensions, LxWxH | 198" x 76" x 45" | 212" x 86" x 44" | 245" x 92" x 44" |
| Box Dimensions, LxWxH | 128" x 47" x 23" | 124" x 54" x 24.5" | 160" x 60" x 24.5" |
| Beater Paddles, replaceable | 8 | 10 | 10 |
| Beater Diameter | 26" | 26" | 26" |
| Drive | PTO w/ 2 speed gearbox | ||
| Jack | 2000 lbs | 2000 lbs | 2000 lbs |
| Weight w/ Tires | 1850 lbs | 2220 lbs | 2620 lbs |
| PTO Horsepower Required | 30 hp | 55 hp | 55 hp |
 |
|
|
Pequea Replacement Parts are available online at PequeaPartsOnline.com
|
|
