Worksaver Bale Spears
Worksaver Bale Spears

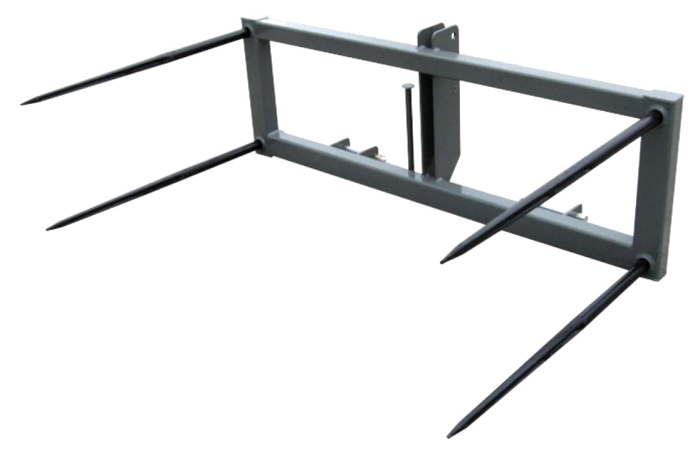

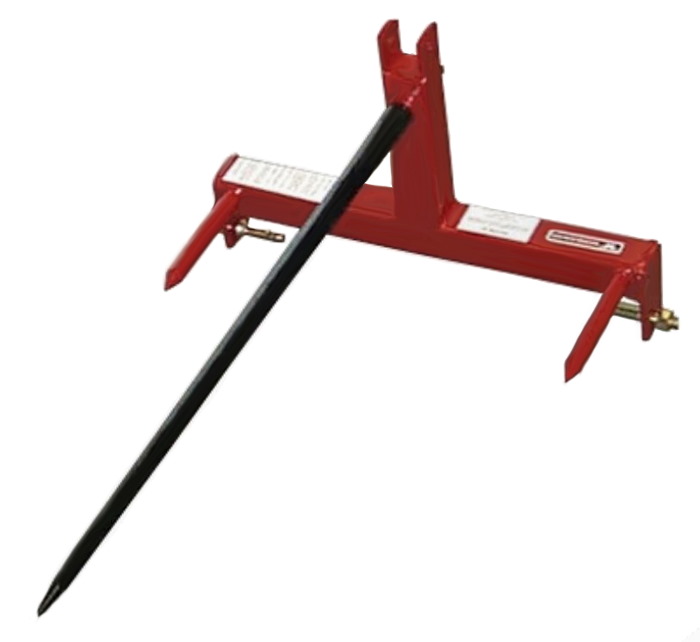

3-Point Bale Spears
Worksaver has the attachment that is right for your hay handling needs. The 3-pt mounted bales spears are designed, depending on model, to handle up to 6000 lb bales. The line features forged spring steel spears designed for tight center bales allowing easier spear penetration and withdrawal from bale(s). All models (except BSF-1523) use a 42mm diameter bolt-in spear with a usable length of 42" providing outstanding service life. Most models are designed to mount to Category I/II hitches.
| Model | BSF-1523 | HS-2200 | HS-3000 | HS-330 | DBH-449 | DBH-6000 |
| Capacity | 1800 lbs | 2200 lbs | 3000 lbs | 3000 lbs | 4000 lbs | 6000 lbs |
| Main Spears | 1 | 1 | 2 | 3 | 4 | 4 |
| Usable Length | 44" | 42" | 42" | 26" | 42" | 42" |
| Stabilizing Spears | 2 | 2 | -- | -- | -- | -- |
| 3-Pt Hitch | Cat I/II | Cat I/II Quick Hitch | Cat II/III Quick Hitch | Cat II/III Quick Hitch | ||
| Bale Type | Round | Round | Mid-size square | (2) Round | ||

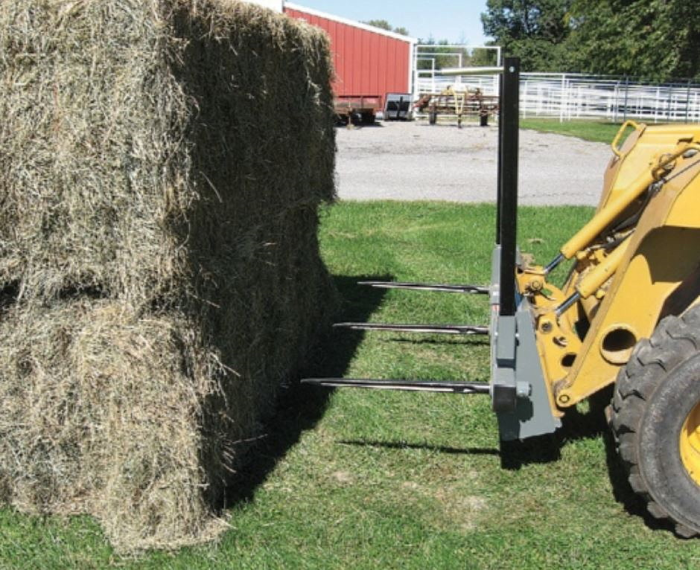

Skid Steer Bale Spears
Designed for use on skid steer and tractor front loaders that use the industry standard "universal quick-attach" system. Patented design allows easy access to the skid steer seat with its step through feature. Models are offered for round bales as well as square bales. Forged tapered bolt-in spears allow easy spear penetration of the bale. Optional bolt-on uprights allow for handling 2 bales at once.
| Model | SSB-2200 | SSB-3000 | SSRB-330 | SSRB-340 |
| Capacity | 2200 lbs | 3000 lbs | 3000 lbs | 4000 lbs |
| Main Spears | 1 | 2 | 3 | 3 |
| Usable Length | 42" | 42" | 26" | 42" |
| Stabilizing Spears | 2 | -- | -- | -- |
| Spear Spacing | -- | 32" | 26.5" | 26.5" |
| Bale Type | Round | Round | Mid-Size Square | Large Square |
| Bolt-On Uprights | No | No | Optional | Optional |

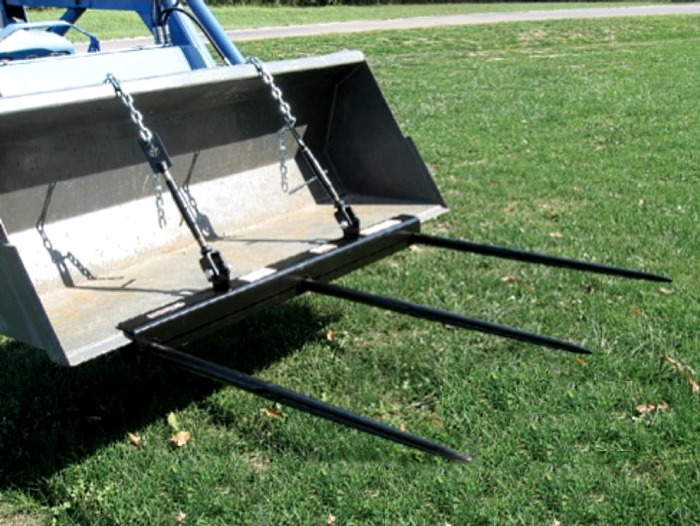

Bucket-Mounted Bale Spears
Quickly convert your front loader bucket into a tool for handling large round bales. Each spear mounts over the bucket cutting edge with heavy angle iron for support and utilizes the bucket underside for leverage. The bolt-on or chain-on system is used to firmly lock the attachment on the bucket. These units use tapered forged bolt-in spears with a usable length of 42". The CBSF-3028 triple bale spear is designed to handle rectangular bales.
| Model | BBSF-20 | CBSF-2000 | CBSF-2028 | CBSF-3028 |
| Capacity | 2000 lbs | 2000 lbs | 3000 lbs | 4000 lbs |
| Main Spears | 1 | 1 | 2 | 3 |
| Usable Length | 42" | 42" | 26" | 42" |
| Stabilizing Spears | 2 | 2 | 1 | -- |
| Bale Type | Round | Round | Round | Large Square |
| Bucket Attachment | Bolt-on | Clamp-on. Uses chain & turnbuckle system. | ||
 |
|
