Sweepster Collector Sweepers
Part #: Sweep-CS
Collector Sweepers from Sweepster are great for sweeping parking lots, city streets, construction sites and access roads, as well as county and state roads.
Details
Sweepster Collector Sweepers for Utility Tractors

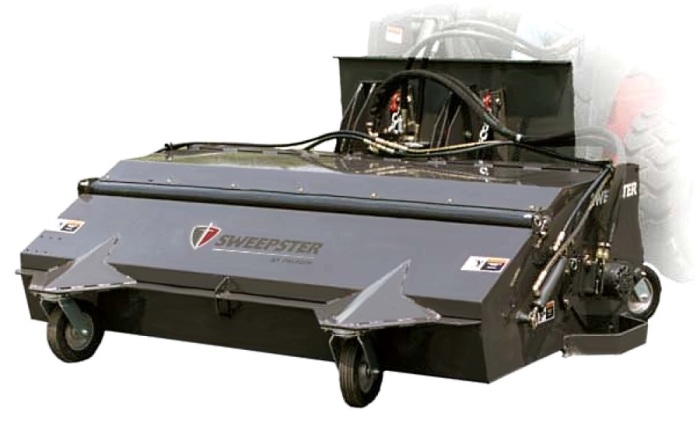

CS High Dump Collector Sweeper
Sweepster's CS High Dump Collector Sweeper with floating suspension is great for sweeping parking lots, city streets, construction sites and access roads as well as county and state roads.
- Heavy duty cleanup, millings, snow removal

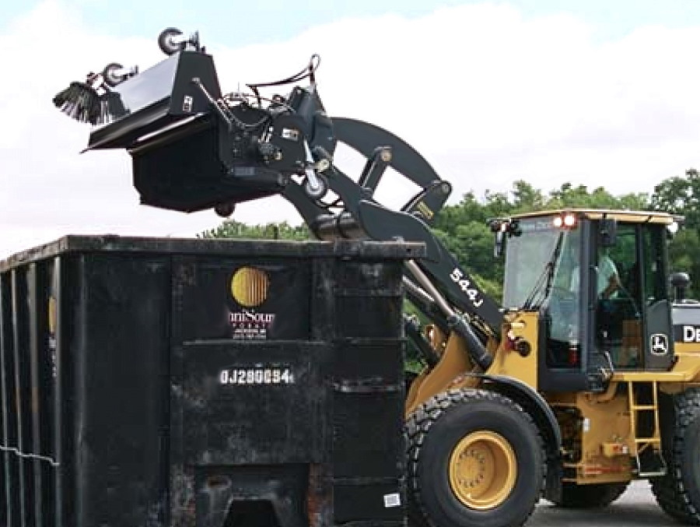

- High dump feature activated by reversing flow
- Hopper positioned in front
- Powered from loader hydraulics
- 15-50 GPM flow required
- 26" and 32" brush diameter
- 6', 7', 8', 9' brush widths available
- Quick attach and pin-on mounts available
- Quick change core

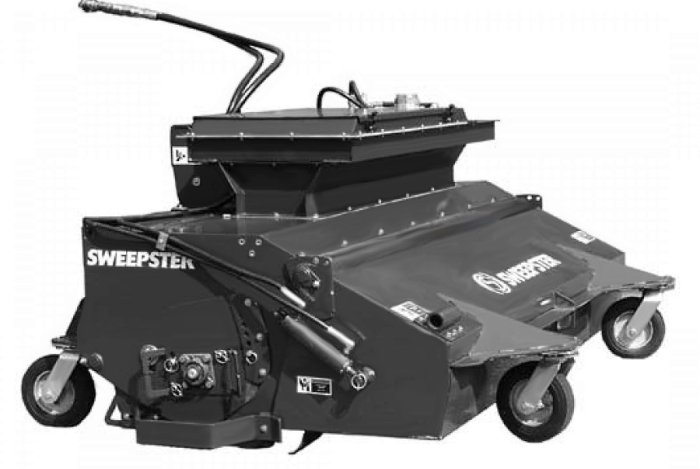

VCS Collector Sweeper with Waterless Dust Abatement
The Sweepster VCS Broom with Dust Abatement is designed with a heavy-duty dump bucket with Vacuum Dust Abatement System for wheel loaders, tractor loader backhoes and larger tractors. Reduces visible dust while picking up material and placing it in the bucket for removal.
- Patented waterless dust abatement
- Heavy duty cleanup
- High dump feature activated by reversing flow
- Hopper positioned in front
- Powered from loader hydraulics
- 15-50 GPM flow required
- 26" and 32" brush diameter
- 6', 7', 8', 9' brush widths available
- Quick attach mount
- Quick change core
CS High Dump Collector Sweeper
| Model | CS26 | CS32 | |||
| Sweeping Width | 72" | 84" | 96" | 96" | 108" |
| Overall Width | 93" | 105" | 117" | 117" | 129" |
| Brush Diameter | 26" | 26" | 26" | 32" | 32" |
| Hopper Capacity | 0.40 cu.yd. | 0.53 cu.yd. | 0.61 cu.yd. | 0.91 cu.yd. | 1.02 cu.yd. |
| GPM Range | 15-50 gpm | 15-50 gpm | 15-50 gpm | 15-50 gpm | 15-50 gpm |
| Weight | 1080 lbs | 1260 lbs | 1440 lbs | 1705 lbs | 1918 lbs |
VCS Collector Sweeper with Waterless Dust Abatement
| Low Flow | High Flow | |||||||
| Sweeping Width | 72" | 84" | 96" | 72" | 84" | 96" | 96" | 108" |
| Overall Width | 93" | 105" | 117" | 93" | 105" | 117" | 117" | 129" |
| Brush Diameter | 26" | 26" | 26" | 26" | 26" | 26" | 32" | 32" |
| Hopper Capacity, cu.yd. | 0.40 | 0.53 | 0.61 | 0.40 | 0.53 | 0.61 | 0.91 | 1.02 |
| GPM Range | 15-25 | 15-25 | 15-25 | 26-50 | 26-50 | 26-50 | 26-50 | 26-50 |
| Weight, lbs | 1300 | 1330 | 1480 | 1510 | 1660 | 1690 | 1925 | 2260 |
 |
|
