FR Series Self Propelled Harvesters
New Holland Harvesters - Self Propelled FR Series

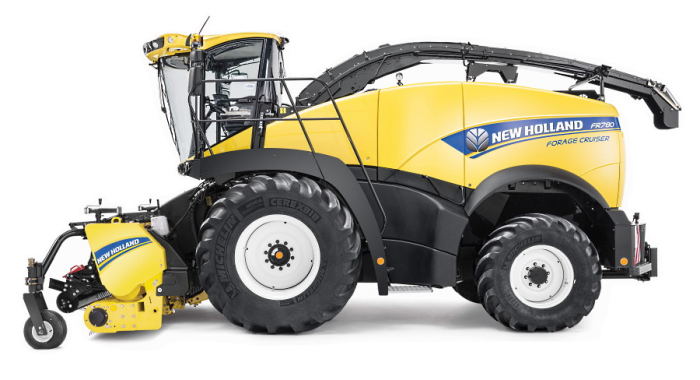

THE FR FORAGE CRUISER: THE GAME CHANGER
New Holland is proud to introduce the six-model FR Forage Cruiser line with powers ranging from 476 horsepower right to 911 horsepower with the new FR920. Significantly improved capacity and productivity result from New Holland’s better crop flow, fuel-efficient engines and state-of-the-art headers. All this is wrapped up in a sleek, tapered design which has New Holland written all over it.
BEST-IN-CLASS CHOP QUALITY, PROCESSING EFFICIENCY AND COMFORT
The industry’s widest crop channel from feedrolls to spout flipper means a thin, controlled crop mat for best-in-class chop quality. HydroLoc™ feedroll drive technology guarantees constant chop length independent of throughput and crop type. When combined with uniform kernel cracking from the most efficient crop processors around, you’ve got the ingredients for chopping the highest quality cattle feed.
SUPER-TIGHT TURNING
The FR’s compact design and impressive 55° steering angle give it a turning circle of a mere 21 feet. This means smaller headlands for less time turning and more time harvesting. Furthermore, the tapered rear design ensures the harvester itself perfectly follows its rear wheels with zero overhang, making maneuvering and parking even easier.
LONG AND STABLE
The FR’s ultra-long wheelbase ensures ultimate stability in the field and on the road. Up to four segmented 500-lb counterweights prevent bouncing during high-speed road transport when the header is still attached.
| FR480 | FR550 | FR650 | FR780 | FR920 | |
| Engine | |||||
| Type | FPT Cursor 13, In-line 6 cyl | FPT Cursor 16, In-line 6 cyl | FPT Vector 20 V-8 | ||
| Displacement | 787 in³ | 787 in³ | 970 in³ | 970 in³ | 1227 in³ |
| Gross Engine HP | 435 hp | 544 hp | 653 hp | 775 hp | 911 hp |
| Maximum Torque @ 1500 rpm | 1477 ft-lb | 1708 ft-lb | 2029 ft-lb | 2451 ft-lb | 3020 ft-lb |
| Feeding | |||||
| Length of Cut Adjustment | Infinite | Infinite | Infinite | ||
| Number of Feed Rolls | 4 | 4 | 4 | ||
| Feed Opening Width | 33.9" | 33.9" | 33.9" | ||
| Cutterhead | |||||
| Cylinder Type | V-shaped w/ 2 rows of knives | ||||
| Maximum Diameter | 27.9" | 27.9" | 27.9" | ||
| Speed @ 2100 engine rpm | 1130 rpm | 1130 rpm | 1130 rpm | ||
| Length of Cut Range | 0.2" - 1" | 0.2" - 1" | 0.2" - 1" | ||
| Cuts Per Minute | 11,320 | 11,320 | 11,320 | ||
| Variflow System | Shift between crops in under 2 minutes | ||||
| Transmission | |||||
| Hydrostatic | Standard | Standard | Standard | ||
| Gearbox | 4-speed | 4-speed | 4-speed | ||
 |
