Pull-Type Forage Harvesters

Part #: FP-Harvester
No one builds rugged, high-capacity forage harvesters like New Holland. The best-selling line of pull-type models provides the uniform chopping you are looking for and all the reliability you have come to expect from New Holland.
Details
Files

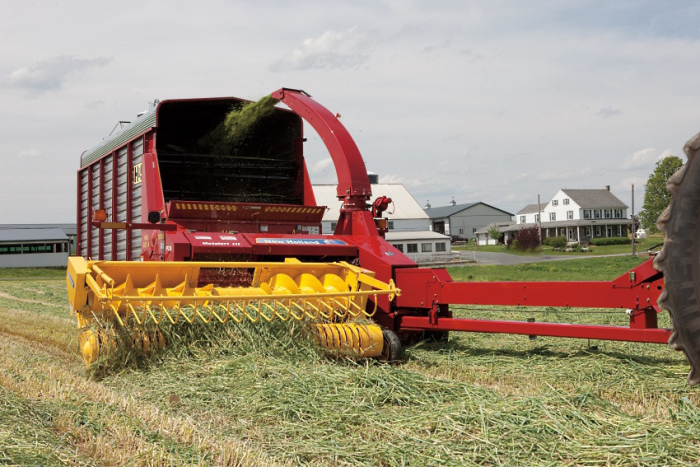

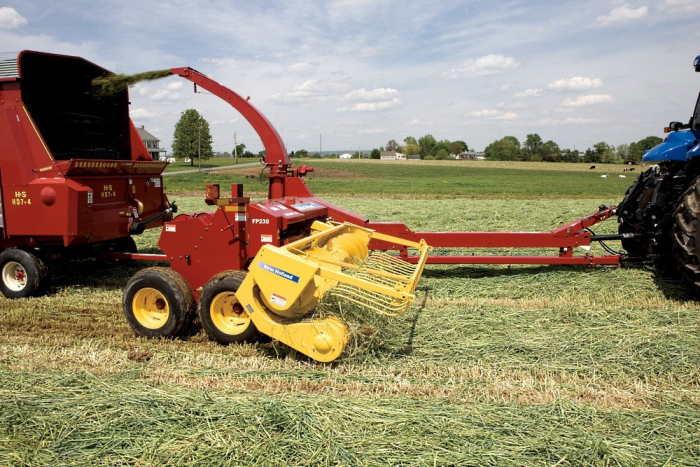

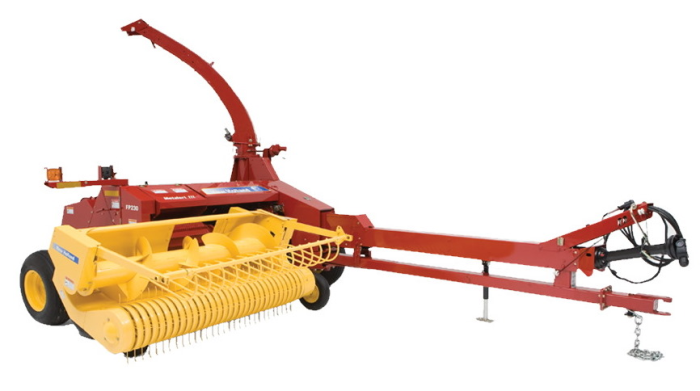

New Holland Pull-Type Forage Harvesters

BEST IN HIGH CAPACITY AND CHOP QUALITY

No one builds rugged, high-capacity forage harvesters like New Holland. The best-selling line of pull-type models provides the uniform chopping you're looking for and all the reliability you've come to expect from New Holland.



MORE CUT LENGTH CHOICES - You'll get the widest selection of cut lengths to meet your exact feeding requirements. Vary length of cut by changing feedroll speed, adding or removing knives or by using one of six optional recutter screens for nonprocessor machines.

ONE-PASS CORN SILAGE PROCESSING - Improve your corn silage feed efficiency with New Holland's optional onboard CropPro™ crop processor. Factory-installed between the cutterhead and blower, it shears cobs and stems, and cracks and crushes kernels, producing silage that is higher in effective fiber and easier for the herd to digest.

FEATURES TO KEEP YOU CHOPPING AT PEAK EFFICIENCY - Chop quality is the hallmark of New Holland forage harvesters due to the built-in features that help to maintain them. Knife sharpening and shearbar adjustment are a snap. And the cutterhead reverses to ensure a true cutting edge on all knives. A built-in knife sharpener in these forage harvesters features a huge, 3-inch-diameter, ratchet-advanced stone for faster-than-ever sharpening.



  FP240
 Weight 4700 lbs
 Length 21' 6"
 Height 11' 2"
 Width 10' 8"
 Number/Type of Knives 12/single-edge, hardened alloy
 Cutterhead Type/Speed Cylinder/850 rpm
 Cutterhead Size 21" dia.
 Throat Opening 24 3/8" x 6 5/8"
 Length of Cut 3/16" to 7/16"
 Blower Speed 1000 rpm
 Tractor hp Requirement 135-300 hp
