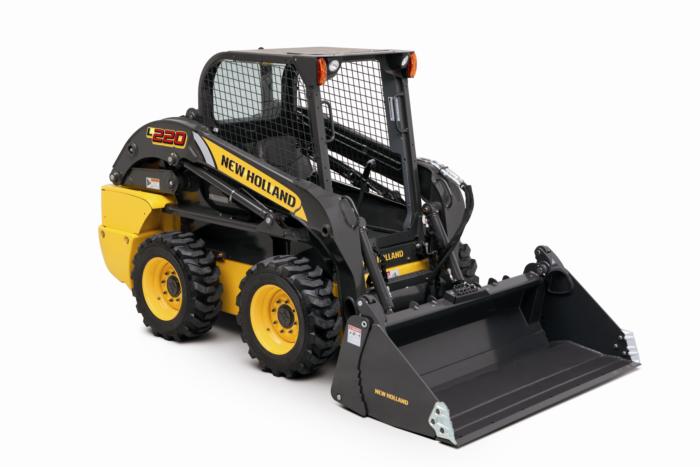

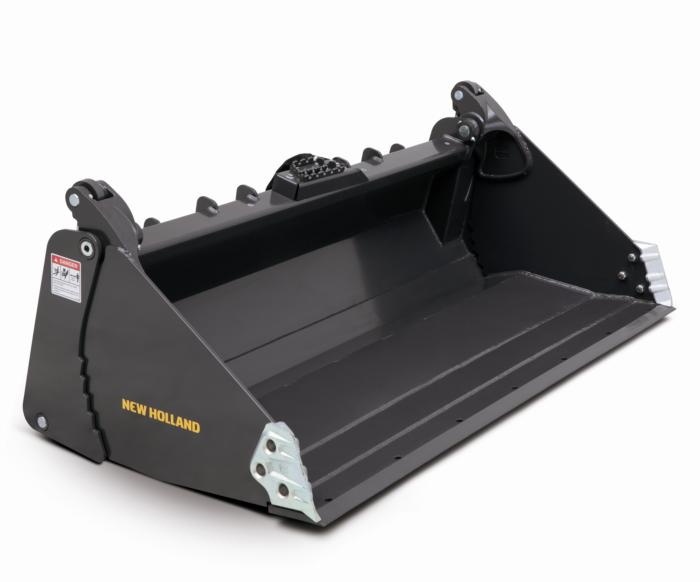

New Holland 4x1 Buckets for Skid Steer Loaders

• Functions as a loader bucket, clam, dozer, scraper and bottom dump bucket
• Material spreading – gravel, mulch, dirt, etc

Utility Models

• Available in 66" and 72" widths
• Includes hoses and quick disconnects
• 2" cylinder bore; 1-1/8" diameter rod
• Fixed greasable cylinder ends
• 2,350 lbs clamping force
• 34-5/8" clam opening
• 23-1/8" floor length
• Optional spill guards increase struck capacity approx 29% and heaped capacity approx 24%
• Compatible with toothbars and bolt-on edges

Construction Models

• Available in 72", 78" and 84" widths
• Includes hoses and quick disconnects
• 2-1/2" cylinder bore; 1-1/4" diameter rod
• Spherical, greaseable cylinder ends
• 1" × 6" clam cutter bar
• Dual pilot-operated check hydraulic system for positive load holding
• 4,000 lbs clamping force
• 34-3/4" clam opening
• 26-5/8" floor length
• Replaceable bolt-on side cutters
• Optional spill guards increase struck capacity approximately 26% and heaped capacity approximately 21%
• Compatible with toothbars and bolt-on edges
