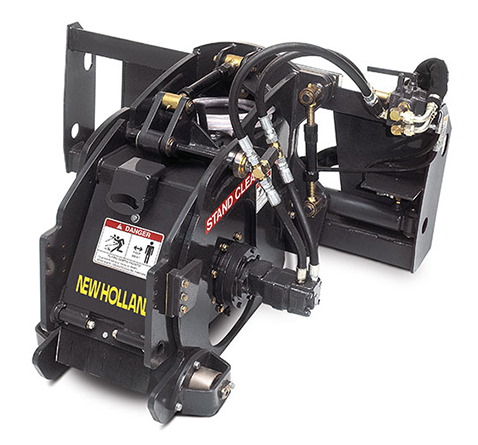

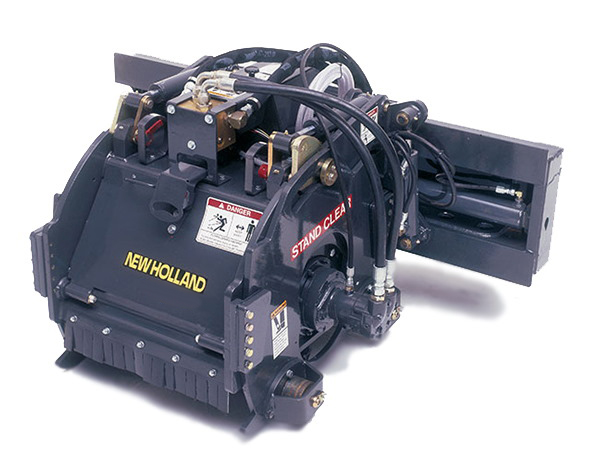

New Holland Cold Planers
Part #: NH-CPlaner
Cold Planer Skid Steer attachment for heavy duty planing jobs, including milling transition and repair areas, frost heaves and expansion joints.
Details
New Holland Cold Planers for Skid Steer Loaders
Features:
- High-Flow and Standard-Flow models available
- Independent pivoting head for better contour tracking
- Removable wheels for planing next to curbs and obstructions
- Hinged cover for pick maintenance access
- Solid steel wheel construction (hardened) with greaseable manifold pins and secluded zerks
- Pick maintenance tool included
- Plated and powder-coated surfaces offer resistance to harsh environments
- High rear spoil clearance to prevent recirculation of material
- T1 steel construction in high wear areas
- Tilt capability: ± 8° (High-Flow), ± 11° (Standard-Flow)
- 0-5" cutting depth, 0-19" sideshift center to right
- Convenient, fully electro-hydraulic, in-cab control for depth, tilt, and sideshift
- Depth and tilt position indicators
- Planetary drive delivers high torque
- Protective shields for hydraulic and electrical components
- Universal, general purpose picks standard
| Model | SP12 | HP16 | HP18 | HP24 | HP30 | HP40 |
| Cutting Width | 12" | 16" | 18" | 24" | 30" | 40" |
| Cutting Depth | 0-5" | 0-5" | 0-5" | 0-5" | 0-5" | 0-5" |
| Drum Diameter | 19" | 22" | 22" | 22" | 22" | 22" |
| Tilt | ± 11° | ± 8° | ± 8° | ± 8° | ± 8° | ± 8° |
| Sideshift | 0-19" | 3"-22" | 3"-22" | 3"-22" | 3"-22" | 3"-22" |
| No. of Teeth | 37 | 43 | 45 | 57 | 69 | 89 |
| Hyd. Requirement | 12-22 gpm | 22-40 gpm | 22-40 gpm | 31-35 gpm | 31-35 gpm | 31-35 gpm |
| Weight | 1400 lbs | 2150 lbs | 2200 lbs | 2400 lbs | 2600 lbs | 3100 lbs |
 |
|
