Construction Attachment 4-in-1 Buckets
Part #: CA-41Bucket
Increase your loader productivity with a multi-purpose bucket. 4-in-1 Multi-Purpose Buckets from Construction Attachments are great attachments for any job requiring Scraping, Bottom Dumping, Clamping, Digging, Bulldozing, Clam Loading, Back Filling, and much more.
Details
Construction Attachment 4-in-1 Buckets

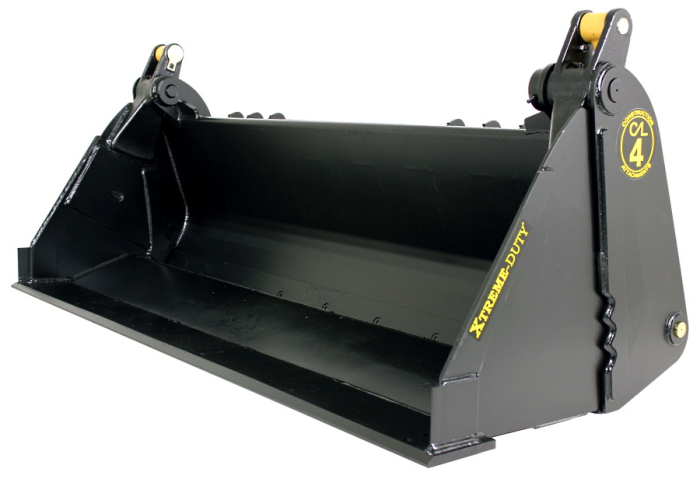

Xtreme Duty 4-in-1 Buckets
- Available in High Capacity, Low Capacity & Low Profile models
- For rubber tire host machines up to 100 hp or rubber track host machines up to 80 hp, and tractor loaders
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6" x 5/8" front cutting edge to accommodate all bolt-on options
- Solid 6" x 3/4" edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section

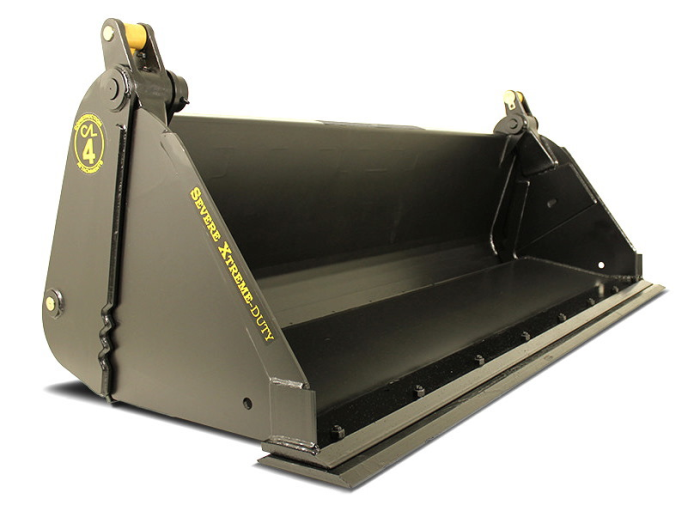

Severe Xtreme Duty 4-in-1 Buckets
- Available in High Capacity, Low Profile & Extended Bottom models
- For rubber tire or rubber track host machines loaders up to 130 horsepower
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6" x 3/4" front cutting edge to accommodate all bolt-on options
- Solid 6" x 3/4" edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section

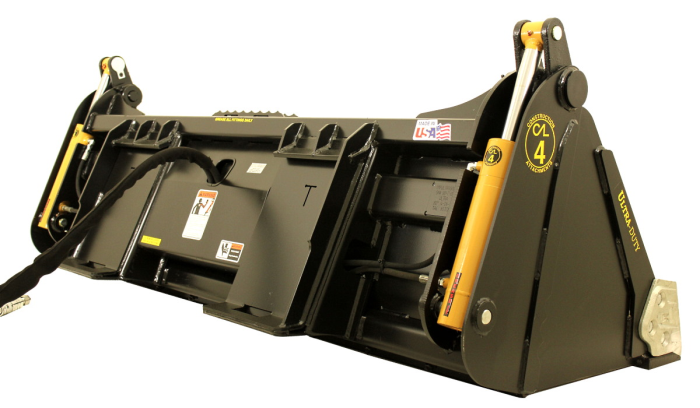

Ultra Duty 4-in-1 Buckets
- For harsh environments such as: gravel, concrete, etc.
- For rubber tire or rubber track host machines loaders up to 130 horsepower
- 5/16" moldboard and additional reinforcement on dozer for added strength
- 1"x6" front weld in cutting edge
- Side cutters come standard
- AR plate reinforced flat bottom
Front Edge Options
- Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
| Model | Width | Heaped Capacity | Cutting Edge | Max Clam Opening |
| Xtreme Duty High Capacity | 67" | 15.39 cu.ft. | 6" x 5/8" | 40.25" |
| 73" | 16.89 cu.ft. | |||
| 76" | 17.63 cu.ft. | |||
| Xtreme Duty Low Capacity | 60" | 9.00 cu.ft. | 6" x 5/8" | 36.25" |
| 67" | 10.00 cu.ft. | |||
| 73" | 11.00 cu.ft. | |||
| Xtreme Duty Low Profile | 67" | 12.00 cu.ft. | 6" x 5/8" | 40.25" |
| 73" | 13.00 cu.ft. | |||
| 76" | 13.00 cu.ft. | |||
| Severe Xtreme Duty High Capacity | 80" | 18.60 cu.ft. | 6" x 3/4" | 40.25" |
| 84" | 19.61 cu.ft. | |||
| Severe Xtreme Duty Low Profile | 67" | 13.86 cu.ft. | 6" x 3/4" | 40.25" |
| 73" | 15.22 cu.ft. | |||
| 76" | 15.88 cu.ft. | |||
| 80" | 16.75 cu.ft. | |||
| 84" | 17.64 cu.ft. | |||
| Severe Xtreme Duty Extended Bottom | 67" | 13.00 cu.ft. | 6" x 3/4" | 40.25" |
| 73" | 14.00 cu.ft. | |||
| Ultra Duty | 73" | 15.1 cu.ft. | 6" x 1" | 40.25" |
| 76" | 15.8 cu.ft. | |||
| 80" | 16.6 cu.ft. | |||
| 84" | 17.4 cu.ft. |
 |
|
