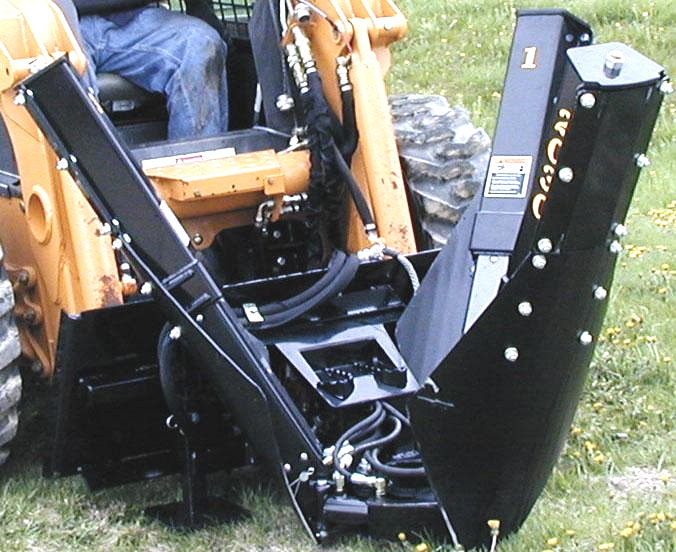

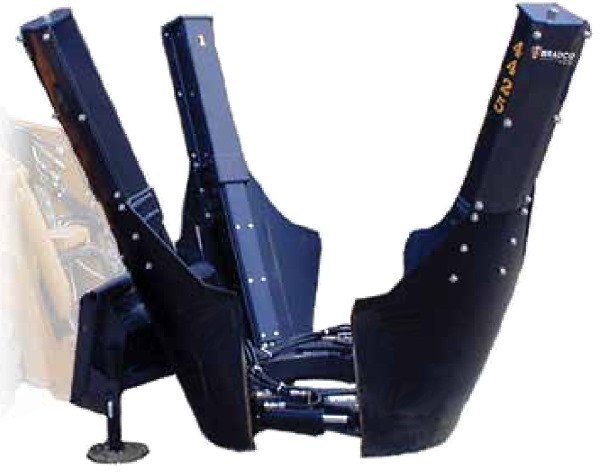

Bradco Tree Spades
Part #: Bradco-TSpade

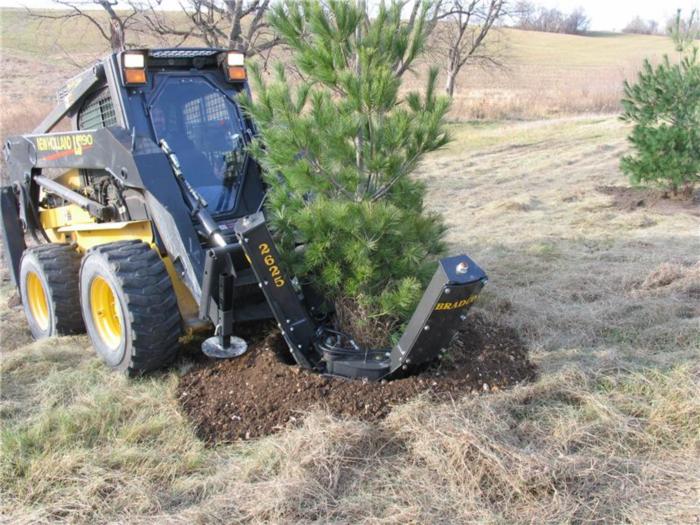

Bradco Tree Spades by Paladin are ideal for transplanting small trees and shrubs. A variety of styles allow you to work in all soil types.
Details
Bradco Tree Spades
25 Series Tree Spade
- Provides an uncompromised digging angle between truncated and cone style to adapt to various soil conditions
- 25° angle and deep stroke of the blades produces several uniform ball sizes with one set of blades
- Pointed high tensile, abrasion resistant blades
- Blade towers incorporate high density plastic slides that are self lubricating
- Industry standard wire baskets for balled and burlap tree harvesting
30 Series Tree Spade
- Ideal for transplanting and burlapping small trees and shrubs in sandy or hard packed soil
- Low profile blade towers allow tree spade to fit between closely planted trees
- Adjustable legs to set digging depth
- High tensile, abrasion resistant blades close to a point in the down position to clean cut tap roots
- Electric over hydraulic control with hand held joystick to operate the spade and rear stabilizers and an optional cord extension for the joystick control
| Model | 25 Series | 30 Series | ||
| 2625 | 3625 | 4425 | 2030 | |
| Overall Height (open) | 48" | 64.5" | 64.5" | 42.25" |
| Overall Height (closed) | 52" | 69" | 69" | 44.51" |
| Frame Height | 22.5" | 22.5" | 22.5" | 14.75" |
| Digging Depth | 22" | 31" | 31" | 16.13" |
| Cutting Angle | 25° | 25° | 25° | 30° |
| Overall Width (gate open) | 76" | 88.5" | 107" | 59.5" |
| Max Gate Opening | 30" | 40" | 33" | 26" |
| Overall Length (gate open) | 52" | 75" | 68" | 49" |
| Number of Blades | 3 | 3 | 4 | 3 |
| Ball Diameter | 18"-26" | 24"-36" | 32"-44" | 16"-20" |
| Ball Weight | 150-350 lbs | 250-1000 lbs | 1200-1500 lbs | 80-120 lbs |
| Flow Requirement | 10 gpm | 10 gpm | 10 gpm | 6 gpm |
| Min Operating Pressure | 2250 psi | 2250 psi | 2250 psi | 2000 psi |
 |
|
