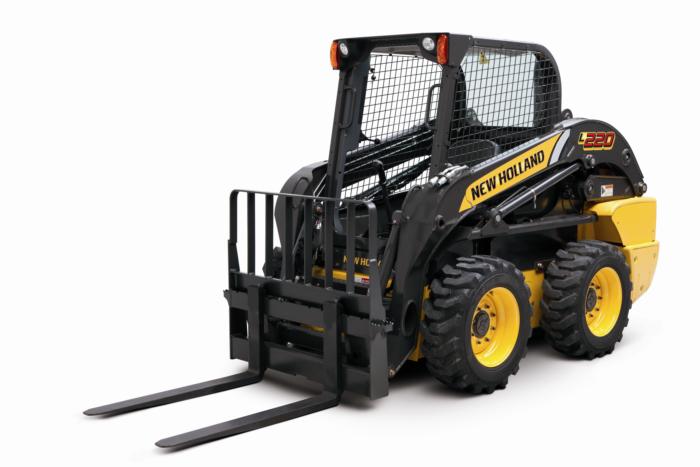

New Holland Pallet Forks
Part #: NH-PForks
New Holland Pallet Forks are available in widths of 42 or 48 inches. Options include ROPS or CDE Frames, Standard or Heavy-Duty Tines, and Hydraulic Positioning.
Details
New Holland Pallet Forks
Features:
- Heat-treated tines, manually adjustable
- Locking position pins
- High visibility back guard
- Steps for easy entry to cab
- ROPS Frame
- Original design
- Close-coupled frame
- High lift capacity
- Backguard contact with fully open cab door on some models

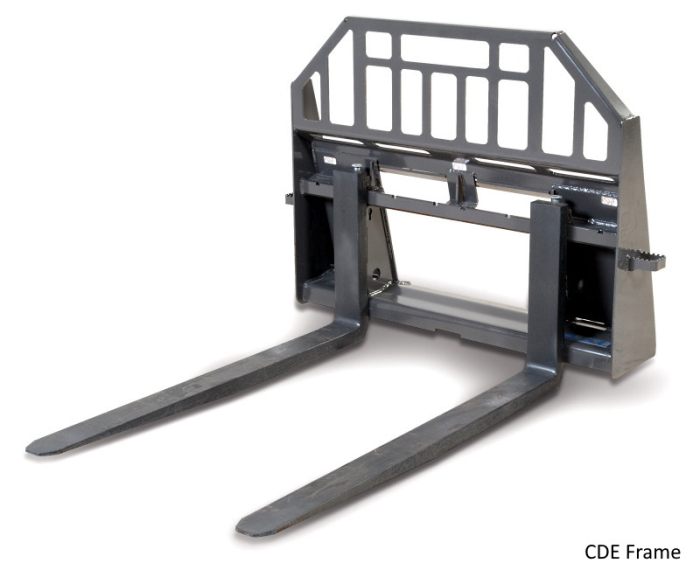

- CDE Frame
- Revised, frame forward design
- No backguard contact with fully open cab door (except L213/L215/L216)
Heavy-Duty Tines:
- 42" Tines – 1-1/2" × 4" cross-section
- 48" Tines – 1-3/4" × 4" cross-section
- 5500#/pair ITA Class II rated tines
Standard Tines:
- 42" Tines – 1-3/8" × 4" cross-section
- 48" Tines – 1-3/8" × 4" cross-section
- 4000#/pair rated tines
Optional Hydraulic Positioning:
- Hydraulically position tines from 10" to 44" spacing (outside to outside)
- Excellent operator visibility
- Steps for easy entry to cab
- Zinc plated, corrosion resistant components
- Center mount, 4" wide fork carriers
- 42/48" Tines – 1-1/2" × 4" cross-section
- 5500#/pair ITA Class II rated tines
- Hoses and flat face hydraulic disconnects included
 |
|
