Sundown Pendulum Spreaders
Part #: Sundown-PS
The 3 Pt. Hitch mounted Sundown Pendulum Spreaders feature a Symmetric Spread Pattern designed to evenly distribute granular fertilizer and seeds. PTO shafts are included. The Spreaders also feature an advanced mechanism with regulating key which allows for quickly setting the spread pattern.
Details

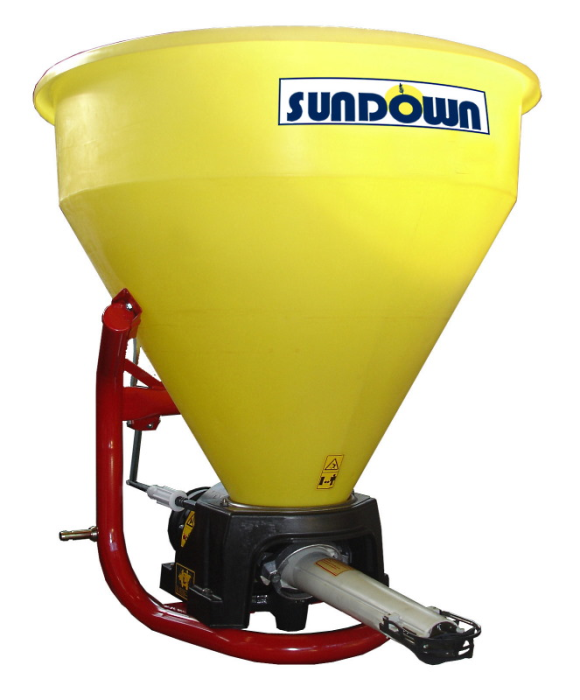

Sundown Pendulum Spreaders
Model PDC 400
- Category 1, three point hitch, 540 rpm PTO
- Corrosion proof poly hopper
- Pendulum style spreading mechanism
- Precise Spreading rate adjustment
- Spreading widths from 27' to 50' with standard spout
- Spreading rates from 20 to 900 lbs per acre
- Optional spreading spouts for narrow widths or banding
PDV Series - Large Capacity Models
- Category 1 & 2, three point hitch, 540 rpm PTO
- Corrosion proof molded plastic hopper
- Pendulum style spreading mechanism
- Precise Spreading rate adjustment
- Spreading widths from 27' to 50' with standard spout
- Spreading rates from 20 to 900 lbs per acre
| Model | PDC400C | PDV500 | PDV600 | PDHV800 | PDHV1000 | PDHV1200 |
| Capacity (lbs) | 925 | 1155 | 1450 | 2000 | 2650 | 2800 |
| Capacity (cu.ft.) | 13 | 17 | 20.5 | 30 | 37 | 44 |
| Capacity (bushel) | 11 | 13 | 16 | 24 | 29 | 35 |
| Overall Height | 46" | 36" | 39" | 38" | 42" | 47" |
| Overall Width | 46" | 54" | 54" | 74" | 74" | 74" |
| Spreading Width | 27'-50' | 27'-50' | 27'-50' | 27'-50' | 27'-50' | 27'-50' |
| Weight (lbs) | 221 | 287 | 313 | 375 | 398 | 430 |
 |
|
