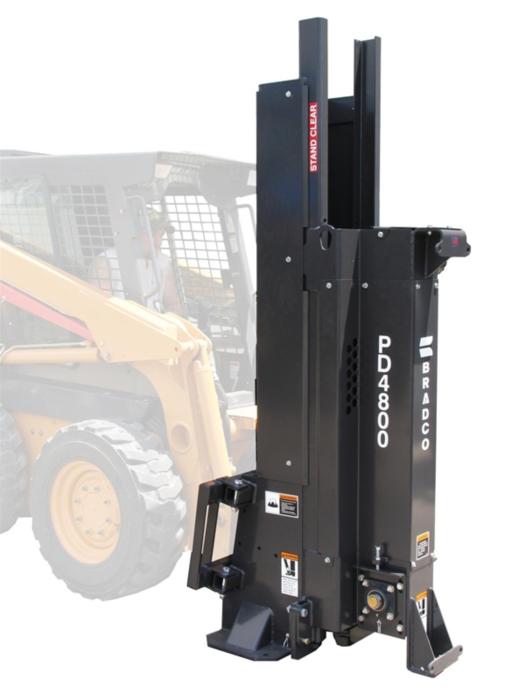

Bradco Post Driver
Part #: Bradco-PDriver
Designed to be operated with an SSL or CTL for driving posts up to 10 feet in length and up to 8 inches in diameter. Works with round or square posts; also compatible for rectangles such as guard rails.
Details
Bradco Post Driver

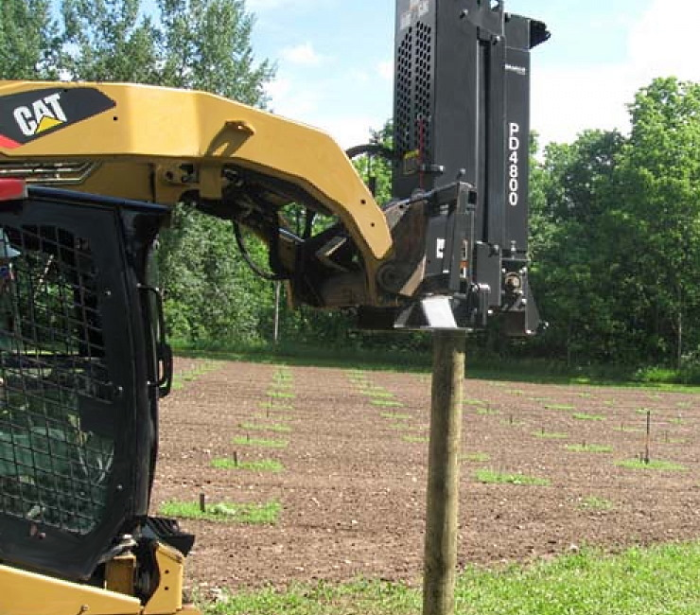

Designed to be operated with an Skid Steer Loader or Compact Track Loader for driving posts up to 10 feet in length and up to 8 inches in diameter. Works with round or square posts; also compatible for rectangles such as guard rails. Quick-change collars allow for changing from a smaller post collar to a larger one in a matter of minutes. Up to 30 hits a minute.
- Manual side shift
- Operates off skid steer hydraulics
- Does not mushroom posts
- No shock load back to skid steer
- Optional striker plates to match post shape
| Model | PD4800 |
| Length | 38.69" |
| Width | 54.25" |
| Height | 91.48" |
| Maximum Stroke | 48" |
| Weight | 1360 lbs |
| Hammer Weight (standard) | 289 lbs |
| Hammer Weight (maximum) | 600 lbs |
| Strokes per Minute | 42 |
| Minimum Hydraulic Pressure | 2000 psi |
| Maximum Flow | 24 gpm |
| Impact Energy (289 lb Hammer) | 1156 ft-lb |
| Impact Energy (600 lb Hammer) | 2400 ft-lb |
 |
|
