Bush Hog Rotary Tillers

Part #: BH-RTiller
The gear driven tillers by Bush Hog are built Bush Hog tough for years of dependable service. Available in standard or reverse till, there is a model that will fit your application.
Details

Bush Hog Rotary Tillers

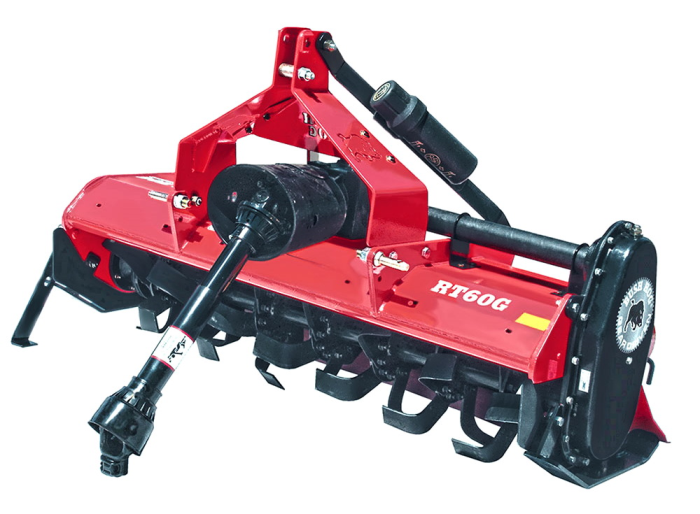

RT Series Gear Driven "Roto Hog"

The gear driven “ROTO HOG” by Bush Hog® are built Bush Hog® tough for years of dependable service. Available in standard or reverse till, there is a model that will fit your application. In ground cover conditions, a reverse till model works best because the flow of material tends to cover the chopped groundcover for quicker decomposition. The standard six blades per flange on every model gives the maximum breakup of soil even in hard or packed conditions. The heavy duty gear drive alleviates worries about the durability of a chain drive in the same tough conditions. The “ROTO HOG” is the perfect tool for landscape work, seed beds, or any other application that requires that the soil be pulverized.

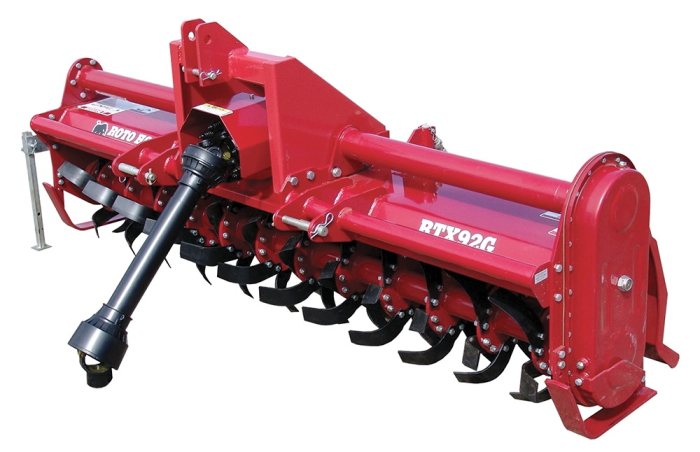

RTX Series Rotary Tillers

  • 80 and 92 inch tilling widths for 50-90 PTO HP Tractors
  • Bush Hog’s heaviest built tiller
  • For the toughest jobs
  • For higher HP tractors
  • Gear drive
  • Heavy duty A-frame hitch
  • Heavy duty rotor with larger blades

RTC50G Compact Tiller

The RTC50G is ideal for tractors from 15 to 25 horsepower. The six tines per flange, usually found on heavy duty and more expensive tillers, give maximum mulching of material. The side gear drive, also usually found on more expensive tillers, will give years of good performance without having to consider chain wear and adjustment. The rear gate can be adjusted for the desired leveling of material. The driveline slipclutch is also standard.



 Model RT Series RTX Series RTC50G
 Working Width 59" 70.5" 82.5" 85" 92" 48"
 Tilling Depth 7.5" 7.5" 7.5" 10" 10" 6"
 Rotation Standard or Reverse Standard Standard
 Drivetrain Gear Gear Gear
 Hitch Cat.1 / Quick Hitch Cat.1 / Quick Hitch Cat.1 / Quick Hitch
 Number of Flanges 7 9 10 9 10 5
 Blades per Flange 6 6 6 6 6 6
 Rotor RPM 211 rpm 211 rpm 211 rpm 235 rpm 235 rpm 253 rpm
 Blade Type L-Shaped L-Shaped L-Shaped L-Shaped L-Shaped C-Shaped
 Weight (Standard/Reverse) 673/683 lbs 747/759 lbs 817/831 lbs 1094 lbs 1149 lbs 374 lbs
 Tractor PTO HP Range 25-45 hp 35-55 hp 45-65 hp 50-90 hp 50-90 hp 15-25 hp
