Bush Hog Rear Blades
Bush Hog Rear Mounted Blades
Compact Series
Bush Hog’s compact rear blades are the ideal choice for light duty landscaping, driveway maintenance, or snow removal. These light duty blades are rated for use on two-wheel drive tractors up to 24 PTO horsepower and four-wheel drive tractors up to 15 PTO horsepower. The moldboard may be reversed for backfilling and angled left or right for use in a wide variety of applications. Tilting of the blade is achieved by adjustment of the tractor’s 3-point hitch arms. Available in 4, 5, and 6-foot operating widths.
35 Series - Light Duty
Whether you are a budget-minded landscape contractor considering a blade for your jobsite, or a homeowner interested in landscaping or snow removal, the 35 Series has what you’re looking for. These utility blades are rated for use on two-wheel drive tractors up to 35 PTO horsepower and four-wheel drive tractors up to 30 PTO horsepower and feature tilt, angle, and offset adjustments in both forward and reverse positions.
50 Series - Medium Duty
Ideal for jobsites, landscaping, snow removal, and homeowners, the 50 Series is the first choice for those who need a 50 PTO horsepower rated blade with the features and capabilities of a much heavier unit. Available in 6 & 7 ft. operating widths. Both the 35 and 50 Series blades feature tilt, angle, and offset adjustments in both forward and reverse positions.

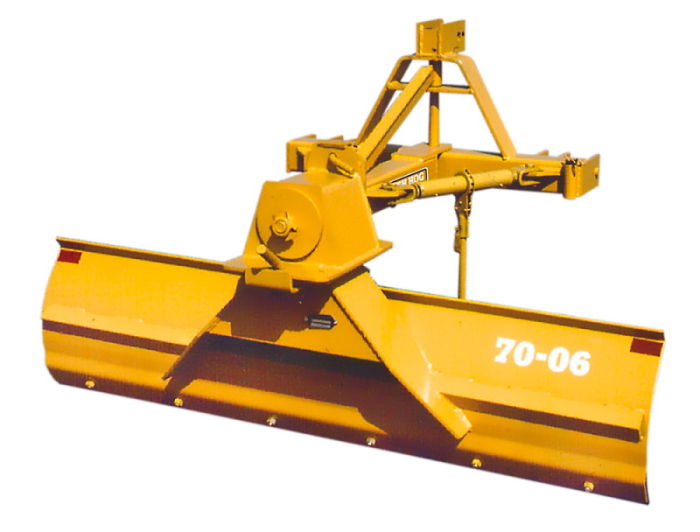

70 Series - Medium Duty
The medium-duty 70 Series Blades are designed for landscaping, road maintenance, and snow removal. These blades feature a heavy duty mainframe and high-strength, reinforced moldboards to ensure years of trouble-free performance. The 70 Series Blades are rated for use on two-wheel drive tractors up to 70 PTO horsepower and four-wheel drive tractors up to 55 PTO horsepower. These blades feature tilt, angle and offset adjustments in both forward and reverse positions.
91 Series - Medium Duty
The rugged construction of the 91 Series rear blades makes them ideal for a wide variety of applications, ranging from general road maintenance to ditching, snow removal, and terracing jobs. They are rated for use on tractors up to 90 PTO horsepower, and come in an 8-foot width. Both the 70 Series and 91 Series feature a number of tilt, angle and offset adjustments in both forward and reverse positions.
100 Series - Heavy Duty
The 100 Series Rear Blades are the ideal choice for heavy-duty grading chores around the farm such as road construction, terracing, dam building, snow removal, and cleaning out feed lots. These blades offer a choice of manual or hydraulic tilt, angle, and offset adjustments. Moldboard can be reversed for back filling. They are rated for use on a wide range of 2WD and 4WD tractors, depending on blade width. With their heavy-duty construction, the 100 Series Blades is engineered and built to meet the most demanding conditions.
141 Series - Heavy Duty
Let Bush Hog®’s new 141 Series Blades give you the strength and durability to pave a new way. Perfect for road building and maintenance, snow removal, terracing, backfilling, and grading these blades can handle any scrape. These new series of rear mounted blades are available in sizes ranging from 7-feet all the way up to 9-feet and recommended for tractors from 110 HP up to 141 HP. Standard features include 3-point ASAE Category II and Category III hitches with Quick Hitch compatibility, 4-inch King Pin, 1/2-inch x 6-inch cutting edges, and 19-inch moldboard height. These blades also feature manual or hydraulic offset, angle, and tilt adjustments. Other available options include heavy duty skid shoes, as well as, heavily constructed end plates.
160 Series - Heavy Duty
The 160 Series Rear Blades is the ideal choice for heavy-duty grading chores around the farm such as road construction, terracing, dam building, cleaning out feed lots, and even snow removal. These blades offer a choice of manual or hydraulic tilt, angle, and offset adjustments. Moldboard can be reversed for back filling. They are rated for use on a wide range of 2WD and 4WD tractors, depending on blade width. With their heavy-duty construction, the 160 Series Blade is engineered and built to meet the most demanding conditions.
181 Series - Heavy Duty
Let Bush Hog®’s new 181-Series Blades give you the strength and durability to pave a new way. Perfect for road building and maintenance, snow removal, terracing, backfilling, and grading these blades can handle any scrape. These new series of rear mounted blades are available in 9-feet and 10-feet and recommended for tractors from 140 HP up to 180 HP. Standard features include 3-point ASAE Category II and Category III hitches with Quick Hitch compatibility, 5-inch King Pin, 1/2-inch x 6-inch cutting edges, and 19-inch moldboard height. These blades also feature manual or hydraulic offset, angle, and tilt adjustments. Other available options include heavy duty skid shoes, as well as, heavily constructed end plates.
225 Series - Heavy Duty
The heavy-duty design and construction of the 225 Series make them ideal for the most rugged grading jobs. The precision-formed moldboards are reinforced to withstand the most demanding conditions and can be reversed for back filling. This top-of-the-line blade is rated for use on higher horsepower tractors and features standard all-hydraulic controls for ease of operation. The 225 is offered in 8, 10, and 12-foot widths. The 225 is ready for heavy duty action and gives you the confidence to tackle the toughest jobs, from grading to snow removal.
300 Series - Heavy Duty
The heavy-duty design and construction of the 300 Series make them ideal for the most rugged grading jobs. The precision-formed moldboards are reinforced to withstand the most demanding conditions and can be reversed for back filling. This top-of-the-line blade is rated for use on higher horsepower tractors and features standard all-hydraulic controls for ease of operation. The 300 Series is available in 12 and 14-foot widths. The 300 Series is ready for heavy duty action and gives you the confidence to tackle even the toughest job, from road grading to snow removal.
Please click the "Files" tab above to download full Spec Sheet
 |
|
