Pequea Rotary Rakes

Part #: Pequea-RR
Pequea Rotary and Tandem Rotary Rakes feature clean sweep raking widths from 9' to 24' allowing you to get the most from your hay crop efficiently. Each Pequea Rotary Rake features a hydraulic lift system and adjustable height to ease fieldwork and maximize maneuverability.
Details
Files

Pequea Rotary Rakes

Get More From Your Hay Crop!

Pequea Rotary Rake Pequea Hay Rake



Pequea Rotary and Tandem Rotary Rakes feature clean sweep raking widths from 9' to 24' allowing you to get the most from your hay crop efficiently. Each Pequea Rotary Rake features a hydraulic lift system and adjustable height to ease fieldwork and maximize maneuverability. The adjustable front cylinder allows users to fine tune pitch and all Pequea Rotary Rakes feature removable tine arms. Our Tandem Rotary Rake allows you to rake either two separate or one combined windrow to serve most bailing or chopping applications.

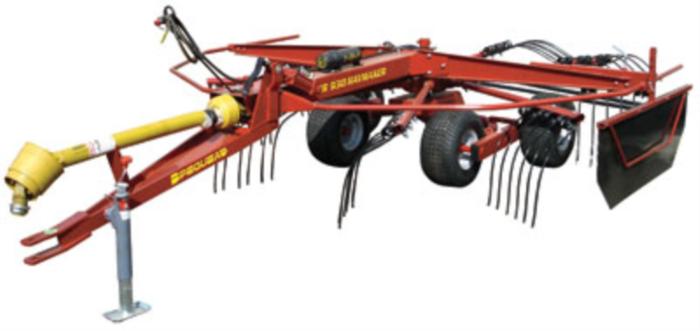

HR939 - Pequea’s HR939 Haymaker is simple, sturdy, and reliable. With a 9′ raking width, it is designed for small to mid-size farms but built to last. Like all Pequea Rotary Rakes, the rake features two walking beams and a lift cylinder to navigate any terrain.



HR1140 - The HR1140 features an 11′ clean sweep raking width, and a working width up to 14′, also including a tilt cylinder, lift cylinder, walking beams and removable tine arms to make raking easy. We also include our 18.5 x 8 flotation tires which come standard for the HR1140.



HR-S15 - The HR-S15 is Pequea’s most heavy duty single-rotor rake. From the frame to the gearbox, this rake is built to last. With 13 arms, the S15 features an extra-wide working width of 15′. This rake has everything you could ask for in a single rotor rake: Walking Beams, Level Lift Cylinder, Tilt Cylinder, and a Gearbox Pitch Adjustment to change the release point of the tines.

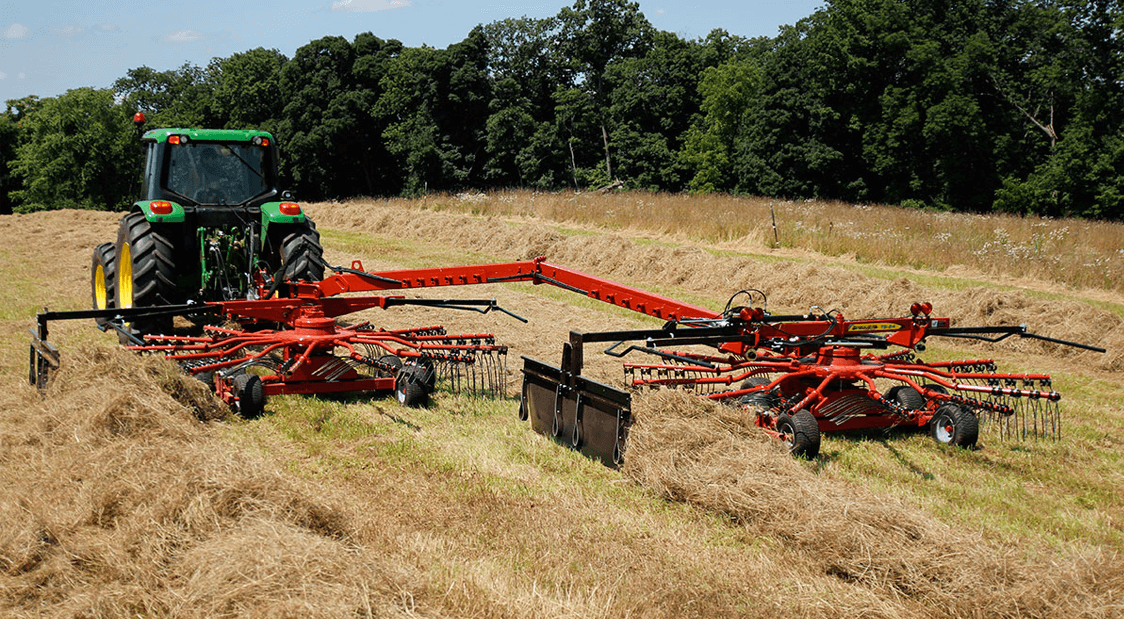

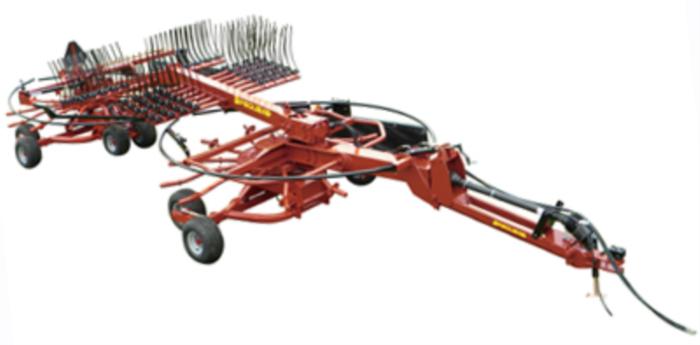

HR-24TS - Pequea’s HR-24TS is a dual rotor rake that can either be used to rake two separate windrows or one large windrow, depending on your needs. The 24TS features two heavy duty 13 Arm rotors, a hydraulically adjustable curtain and lift cylinders under both rotors. This highly adaptable and versatile machine is the ultimate rotary rake.



 Model HR939 HR1140 HR-S15 HR-24TS
 Working Width 10' 8" 13' 15' 15'-27'
 Raking Width 9' 11' 13' 13'-24'
 Number of Rotors 1 1 1 2
 Tine Arms per Rotor 9 11 13 13
 Double Tines per Arm 3 4 4 4
 Raking Action Left Left Left Left
 Tractor Requirement 30 hp 40 hp 40 hp 50 hp

   Click the "Files" tab above to download full specifications
