Harley Power Box Rakes
Harley Power Box Rake - Chain Drive
Harley is the perfect choice for preparing seedbeds, cutting grades, grading dirt or gravel roads, and cleaning up and finish grading residential or commercial sites.
When preparing a seed bed there are many challenges your equipment must conquer! It must be able to work in either dry or wet conditions. It needs to create a dimpled seedbed that promotes moisture, soil and seed retention. Old lawns, weeds, pebbles, rocks, and other debris larger than 3/4" in size need to be removed. It should have the ability to grade, shape and blend the new seedbed into existing site topography.
Harley, by Paladin, provides the highest quality, most durable and versatile power rakes available. Widely regarded as the "gold standard" for soil preparation attachments, they are designed to create the most optimal seedbed conditions. Our rakes allow the operator to make precise adjustments to the rake allowing a match to existing grades and a seamless blend into adjacent established landscaping.

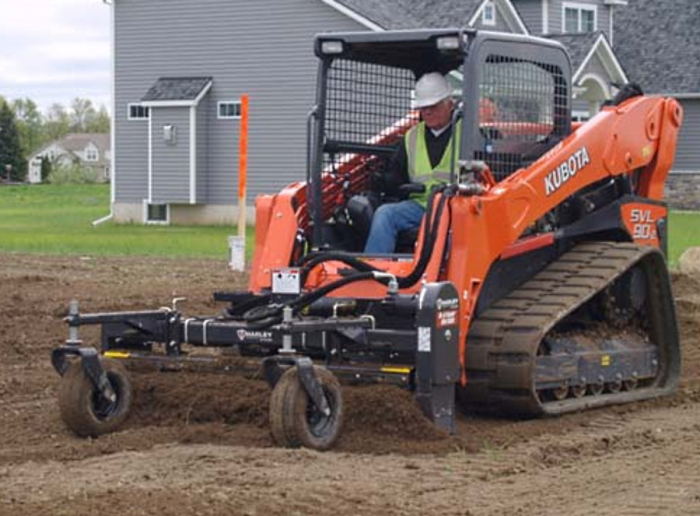

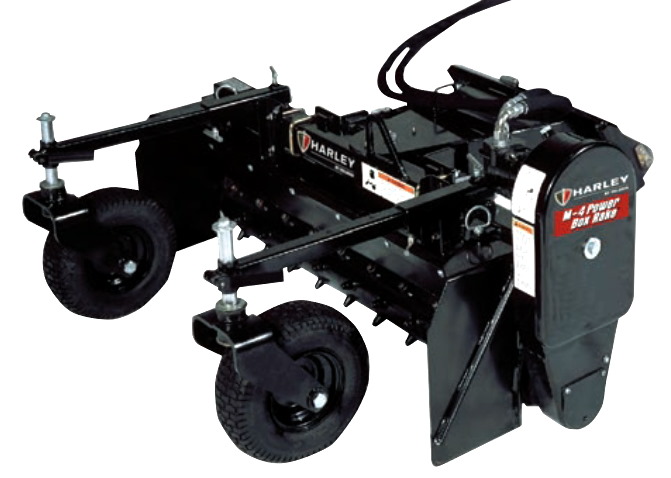

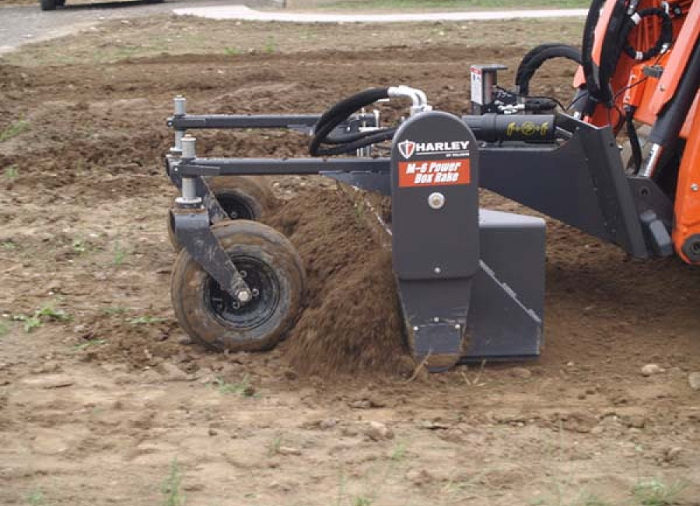

Skid Steer Loader Rakes
- Adjustable 6" polypropylene barrier allows you to quickly choose the size of material you want to leave on the seedbed. The barrier is stiff enough for pushing yet flexible enough to let damaging debris to pass.
- Bi-directional motor allows the drum to rotate in either direction maximizing flexibility.
- Pure carbide proprietary teeth design - specially shaped to ensure the best possible seedbed sub-base fracture pattern and superior moisture retention and release.
- Quick and easy removable box-end plates for windrowing and reverse box raking...no bolts, just pull the pins.
- Dual independently adjustable gauge wheels allow for skim passes for over-seeding - or - adjust to cut drainage grades.
- Harley comes with a standard toggle hydraulic control box. Can be ordered with an in-cab attachment controller harness.

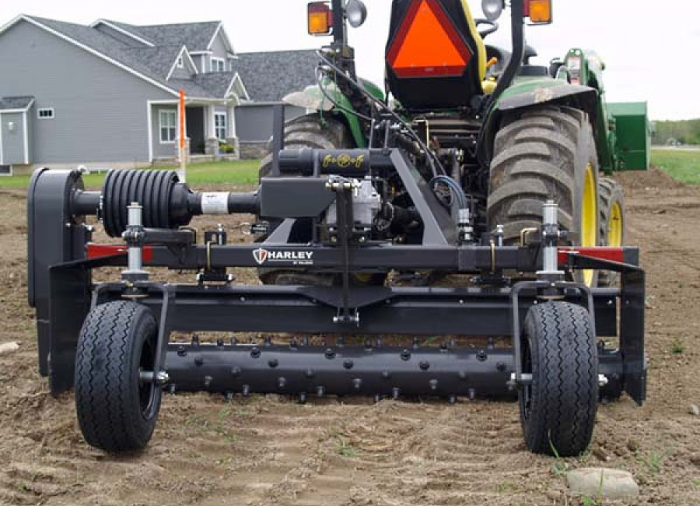

3-Point Tractor Rakes
- Range of 12-80 hp with PTO drive - range depends on model
- 48", 60", 72", 84", 90" widths (46" - 81" raking width at full angle depending on model)
- Manual and hydraulic angle (15°)
- Grease-able, triple-sealed and shielded bearings for extra protection and long life.
- Harley’s well designed frame geometry offers excellent visibility of your work surface.
- Dual independently adjustable gauge wheels allow for skim passes for over seeding - or - adjust to cut drainage grades.
- Angling capability powered by the tractor hydraulics, allowing the operator to angle right or left for directing material.
Skid Steer Loader Models
| Model | M4F | M5F | M6F | M4M | M5M | M6M | M4H | M5H | M6H |
| Angling | Non-Angling | Manual - 20° L/R | Hydraulic - 20° L/R | ||||||
| Roller Width | 48" | 62" | 72" | 48" | 62" | 72" | 48" | 62" | 72" |
| Overall Width | 58" | 72" | 81" | 58" | 72" | 81" | 58" | 72" | 81" |
| Raking Width (full angle) | -- | -- | -- | 48" | 58" | 68" | 48" | 58" | 68" |
| Overall Length | 51" | 59" | 64" | 51" | 59" | 64" | 51" | 59" | 64" |
| Minimum GPM | 8 | 13 | 13 | 8 | 13 | 13 | 8 | 13 | 13 |
| Weight, lbs | 408 | 798 | 838 | 435 | 936 | 998 | 450 | 944 | 1004 |
3-Point Tractor Models
| Model | TM4 | TM5 | T6 | TM7 | TM8 |
| Angling | Manual or Hydraulic - 15° L/R | Manual or Hydraulic - 15° L/R | |||
| Raking Width | 48" | 60" | 72" | 84" | 90" |
| Raking Width (full angle) | 46" | 58" | 69" | 84" | 87" |
| Overall Width | 57" | 71" | 81" | 93" | 99" |
| Overall Length | 49" | 49" | 48" | 56" | 56" |
| Roll-Back Barrier Range | 0.125" - 2" | 0.125" - 2" | 0.313" - 2.938" | 1.125" - 3.375" | 1.125" - 3.375" |
| Weight | 537 lbs | 564 lbs | 871 lbs | 1323 lbs | 1380 lbs |
| Engine HP Range | 15-22 hp | 18-32 hp | 30-40 hp | 42-80 hp | 42-80 hp |
| 3-Point Attachment | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1, 2 | Cat. 1, 2 |
 |
|
