FFC V-Blade Snow Plows
Part #: VBlade
Our FFC V-Blade Snow Plow easily adjusts to achieve straight, left, right, scoop or v-position angling, giving you the versatility you need to efficiently remove snow from walks, driveways and parking lots.
Details
FFC V-Blade Snow Plows
Our FFC V-Blade Snow Plow easily adjusts to achieve straight, left, right, scoop or v-position angling, giving you the versatility you need to efficiently remove snow from walks, driveways and parking lots.
Features
- Available in six blade widths
- Available with hydraulic sequencing or electro-hydraulic valve for independent blade function

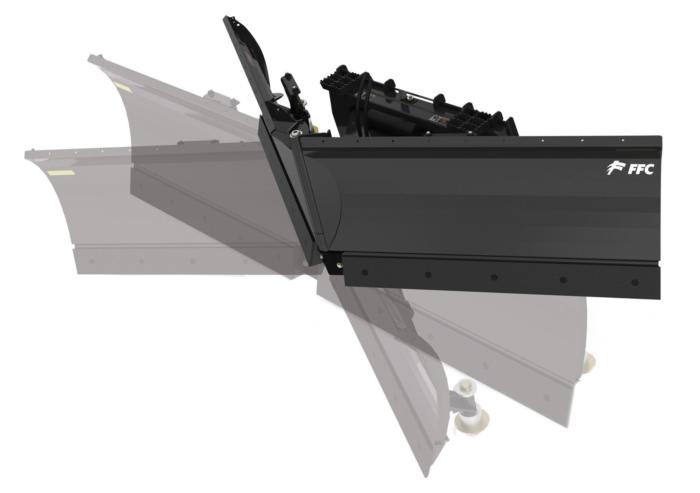

- Adjustable blade allows for straight, "V" or scoop positions
- Angles up to 30 degrees in both directions
- Reversible cutting edge designed with spring-loaded trip mechanism
- Blade floats 5 degrees and tilts 5 degrees for ground contour
| Cutting Widths | Height | |||
| Straight | Full "V" | Full "Scoop" | 30° Angle | |
| 60" | 56" | 48" | 52" | 32.5 |
| 72" | 66.5" | 58.5" | 62.5" | 32.5 |
| 84" | 77" | 69" | 73" | 32.5 |
| 96" | 87.5" | 79.5" | 83.5" | 32.5 |
| 108" | 98" | 90" | 94" | 32.5 |
| 120" | 108" | 100.5" | 104" | 32.5 |
 |
