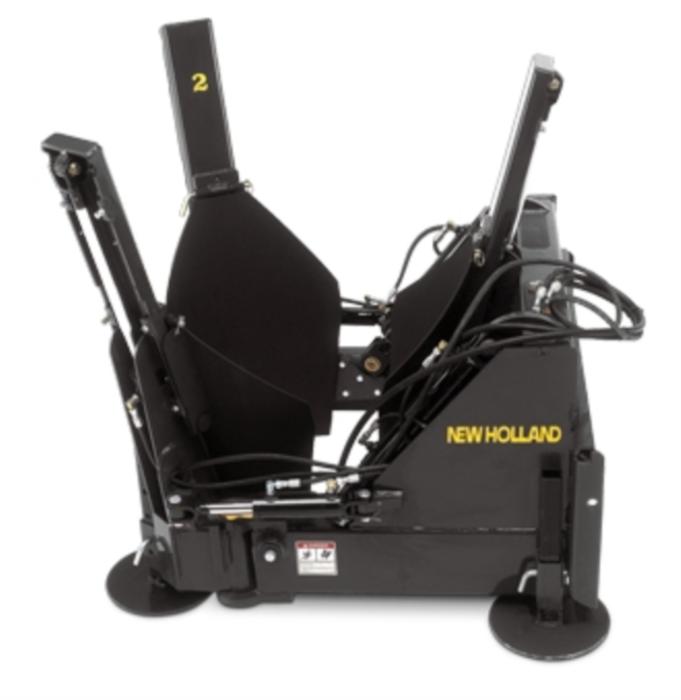

New Holland Tree Spades

Part #: NH-TSpade
25 degree truncated tree spades designed for production tree harvesting, nursery applications and landscaping. Ideal for clay type soils and allows digging in loose sandy soil.
Details

New Holland Tree Spades

25 degree truncated tree spades designed for production tree harvesting, nursery applications and landscaping. Ideal for clay type soils and allows digging in loose sandy soil.

  • Low-profile blade towers to allow machine to fit between closely planted trees
  • High-strength T1 steel blade material
  • Two-year warranty
  • Overlapping blades to clear cut roots
  • Adjustable blade slides to maintain alignment
  • Adjustable blade depth-control legs
  • Wide gate opening to clear trees easily
  • Produces round balls that actually fit wire baskets available from many vendors
  • Built heavy for use at production nurseries and rental centers
  • Straight blade design has less resistance in penetrating soil
  • Inside frame allows work in tight areas
  • Blade towers use high-density plastic sides to eliminate greasing
  • Produce several uniform ball sizes with one set of blades
  • Inside frame style allows compressing tree ball in the basket



 Model 2625 3625 4425
 Ball Diameter 18"-26" 24"-36" 32"-44"
 Ball Weight 150-350 lbs 250-1000 lbs 1200-1500 lbs
 Digging Depth 22" 31" 31"
 Number of Blades 3 3 4
