Taylor-Way Gear Driven Tillers

Part #: TP-Tiller
Whether you have tough sod, or hard compacted ground, Taylor-Way Gear Driven Tillers will get the job done. Producing an ideal soil mix is what Taylor-Way Tillers are all about.
Details

Taylor Pittsburgh Gear Driven Tillers

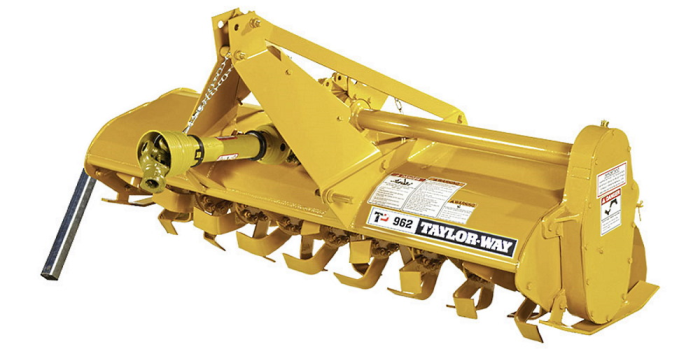

Series 962 Gear Driven Rotary Tiller

Taylor Pittsburgh's 962 Series Tillers are built to perform year after year. There’s a certain satisfaction that comes from doing the job right. Whether you have tough sod, or hard compacted ground, Taylor Pittsburgh’s Gear Driven Tillers will get the job done. Producing an ideal soil mix is what Taylor Pittsburgh’s Tillers are all about. With six tines per flange, you can till down to eight inches. The 962-GDT-48 (48”) is ideal for 20-35 horse power tractors. The 962-GDT-60 (60”) is designed for the most popular tractors in the 25-40 horse power range. Choose the 962-GDT-72 (72”) model for tractors with 35-50 horse power. The 48”, 60” & 72” comes with a Cat. I, 3-point hitch. The 962-GDT-84 (84”) is perfect for larger operations and ideal for use on tractors from 50-65 horse power and will hook to a Cat. I or II, 3- point hitch. The choice is yours, quality Gear Driven Tillers that are built tough and will give you years of dependable performance.

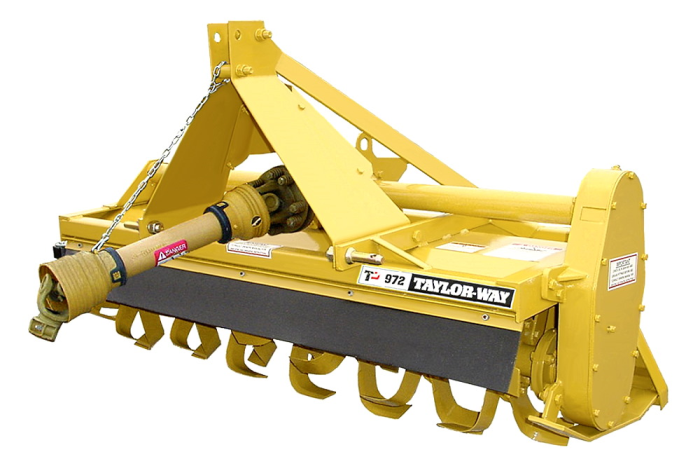

Series 972 Reverse Rotation Gear Driven Tiller

Taylor Pittsburgh’s Reverse Rotation Tiller is available in two sizes; 972-RGDT-60 (60”) & 972-RGDT-72 (72”). It is built with the standard features you’ve come to expect from Taylor Pittsburgh. The all Gear Driven, six tines per flange, slip clutch protected PTO shaft, and the heavy duty reinforced frame make this the ideal Reverse Rotation Gear Driven Rotary Tiller for any situation.





  Series 962 Series 972
 Working Width 48" 60" 72" 84" 60" 72"
 Max Tilling Depth 8" 8" 8" 8" 8" 8"
 Drive Type Gear Gear / Reverse Gear Gear Gear / Reverse Gear
 Flanges 6 7 9 11 7 9
 Number of Blades 36 42 54 66 42 54
 Hitch Cat. 1 Cat. 1 Cat. 1 Cat. 1 Cat. 1 Cat. 1
 Approx. Weight 575 lbs 630 lbs 721 lbs 860 lbs 639 lbs 731 lbs
 Horsepower Required 20-35 hp 25-40 hp 35-50 hp 50-60 hp 30-45 hp 40-55 hp
