Taylor Pittsburgh Flex-Wing Cutters

Part #: TP-FlexwingRC
Tough cutting applications are no match for the Taylor Pittsburgh 1510/1550 15 foot Flex-Wing Rotary Cutter. Try the industry’s best choice for maximum power and maneuverable cutting ability.
Details

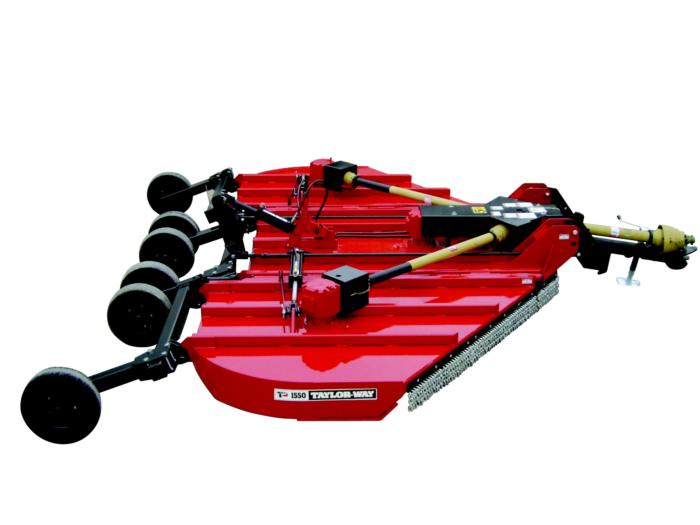

Taylor Pittsburgh Flex-Wing Rotary Cutters

1510 / 1550 Series

  • Four Gearbox Design with a Main Splitter Gearbox and Three Independent Drive Gearboxes
  • Rugged 7 Gauge Deck
  • Spring Cushioned Wheel Axles
  • Dual Center Section Wheels
  • Round Stump Jumpers
  • Constant Velocity Input PTO - Cat. 8 CV 540, Cat.6 CV 1000 Cat. 6 Wing Drivelines
  • Slip Clutches on all Drive Gearboxes
  • Replaceable Center Section and Wing Skid Shoes
  • Heavy-duty Castering Straddle Type Hitch Clevis
  • Self-leveling Tongue w/Dual Leveling Rods
  • Heavy-duty Tongue Jack with Storage Location on the Deck
  • Your Choice of Tires: 21" Laminated Tires or Heavy Ply Used Airplane Tires



  1510 1550
CV Input PTO 540 rpm 1000 rpm
Gearbox Horsepower Splitter: 170 hp
Drive: 3 x 150 hp		 Splitter: 240 hp
Drive: 3 x 120 hp
Working Width 15' 15'
Transport Width 9' 2" 9' 2"
Cutting Height 1"-15" 1"-15"
Cutting Capacity 2" 2"
Blade Size 1/2" x 4" High Lift 1/2" x 4" High Lift
Deck Material 7 Gauge 7 Gauge
Wing Fold Angle 90° Up, 22° Down 90° Up, 22° Down
Min Tractor HP 65 hp 65 hp
