Taylor Pittsburgh Rear Blades
Taylor Pittsburgh Rear Blades
4500 SERIES (20-45 hp)
Taylor Pittsburgh’s 4500 SERIES REAR BLADES offer features for most landscaping, grading and snow removal applications. The blade is 6 way adjustable allowing the user to Tilt, Angle, and Offset the blade at the same time to achieve the desired results. The moldboard is a full ¼’ thick with a heat treated double beveled reversible ½” x 6” cutting edge. The pivot pin has a bushing that is a full 2-1/8” in diameter and the blade comes with a kick stand.

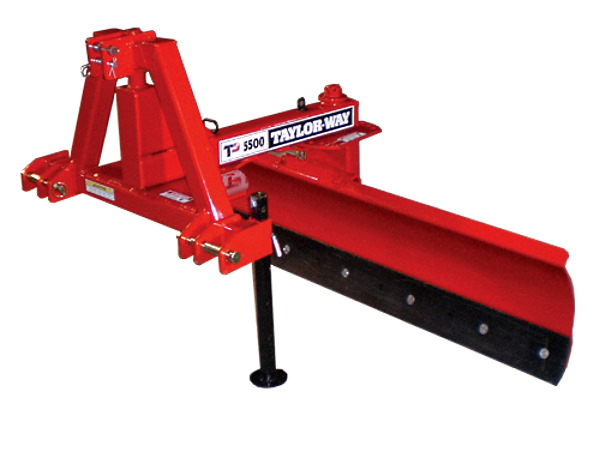

5500 SERIES (45-55 hp)
Taylor Pittsburgh’s 5500 SERIES REAR BLADES are constructed with a heavy 4” x 4” x ⅜” main tube, straddle type combination 3-point hitch, and manual angle, offset and tilt functions. The 5500 has a reversible cutting edge, a reversible curved moldboard and comes in 3 working widths.

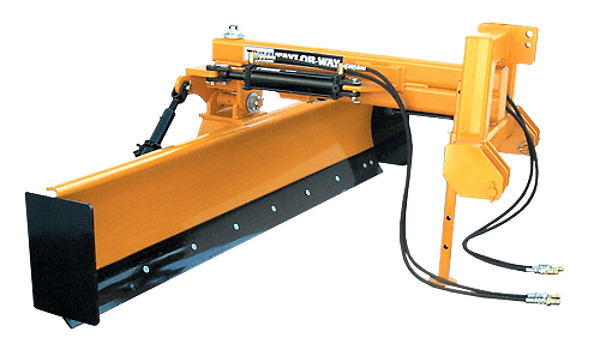

8500 SERIES (75-85 hp)
Taylor Pittsburgh’s 8500 SERIES HEAVY DUTY REAR BLADE gives you the added features that make any heavy duty job easier than ever. Fully adjustable with mechanical or hydraulic adjustments on angle, offset and tilt functions. Constructed for strength with a heavy 4” x 4” x ⅜” main tube, straddle type combination 3-point hitch and you have a choice of optional end plates and skid shoes. The 8500 has a reversible cutting edge, a reversible curved moldboard and comes in 7’ or 8’ working widths. These rear blades are an excellent choice for leveling, ditching, landscaping, road maintenance, snow removal and more.
233 RB SERIES (17-35 hp)
Taylor Pittsburgh’s RB SERIES 233 REAR BLADE features a specially formed, 14” high, ¼” thick moldboard designed to roll dirt or snow and prevent drag. Each moldboard is equipped with a high carbon steel reversible cutting edge that adds to the life of the blade. It has 5 forward and 5 reverse angle settings.
233 PRB SERIES (25-45 hp)
Taylor Pittsburgh’s PRB SERIES 233 REAR BLADE features a specially formed moldboard, with reinforced back bracing for extra strength and performance. It has 7 forward and 5 reverse angle settings plus it will tilt and offset left or right. The high carbon steel cutting edge is reversible
233 RB-QAT SERIES (25-45 hp)
Taylor Pittsburgh’s RB-QAT SERIES 233 REAR BLADE has moldboards with an easy to adjust lever for tilt and angle. It has 5 forward and 5 reverse angle settings. It also has formed moldboards with bracing, a high carbon steel reversible, replaceable cutting edge and a patented kick stand.
233 HD-RB SERIES (40-70 hp)
Taylor Pittsburgh’s HD-RB SERIES 233 REAR BLADE features a specially formed moldboard reinforced with gussets for added strength and performance. Each moldboard is equipped with a high carbon steel reversible cutting edge. It also has easy adjust latch assemblies for the angle and tilt adjustment, and a patented kick stand.
Professional Models
| Series | 4500 Series | 5500 Series | 8500 Series | ||||||
| Operating Width | 5' | 6' | 7' | 8' | 6' | 7' | 8' | 7' | 8' |
| Weight, lbs. | 293 | 313 | 342 | 370 | 485 | 510 | 535 | 793 | 825 |
| Horsepower Rating | 17-45 hp | 55 hp (2WD) / 45 hp (4WD) | 85 hp (2WD) / 75 hp (4WD) | ||||||
| Hitch Type | Cat. I | Cat. I & Cat. II Straddle Type | Cat. I & Cat. II Straddle Type | ||||||
| Moldboard | 1/4" x 14" | 5/16" x 15-1/4" | 5/16" x 18" | ||||||
| Cutting Edge | 1/2" x 6" Reversible | 1/2" x 6" Reversible | 1/2" x 6" Reversible | ||||||
| Angle Adjustment, Forward | 0°, 15°, 30°, 45° | 0°, 15°, 30°, 45° | Up to 36° | ||||||
| Angle Adjustment, Reverse | 0°, 15°, 30° | 0°, 15°, 30° | Up to 36° | ||||||
| Tilt Adjustment | 6° | 0°, 15°, 30° | Up to 28° | ||||||
| Offset Adjustment | 12" L/R | 14", 20.5" L/R | Up to 28.75" L/R | ||||||
| Adjustment Type | Manual | Manual | Mechanical, Hydraulic or Combo | ||||||
Standard Models
| Series | 233 RB | 233 PRB | 233 HD-RB | 233 RB-QAT | ||||||
| Operating Width | 5' | 6' | 7' | 6' | 7' | 8' | 6' | 7' | 8' | 7' |
| Weight, lbs. | 221 | 242 | 260 | 330 | 359 | 386 | 569 | 611 | 636 | 389 |
| Horsepower Rating | 17-45 hp | 17-45 hp | 40-70 hp | 25-45 hp | ||||||
| Angle Adjustment, Forward | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | ||||||
| Angle Adjustment, Reverse | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | 0°, 15°, 30°, 45°, 60° | ||||||
| Tilt Adjustment | -- | Yes | Yes | Yes | ||||||
| Offset Adjustment | -- | Yes | -- | -- | ||||||
| Adjustment Type | Manual | Manual | Manual | Manual | ||||||
 |
|
