Bush Hog Multi-Spindle Cutters
Bush Hog Multi-Spindle Rotary Cutters
Another solution in the Bush Hog family is our line of multi-spindle rotary cutters. Models are designed for mowing grass and weeds with larger models ideal for heavy crop clearing, pasture maintenance, and cutting brush. With cutting widths from 7 to 15 feet, and a range of hitch types with mounting options, these machines are built for durability and will provide superior performance and productivity with minimal maintenance for many, many years. They are built tough and many farmers and ranchers have used our cutters for years
Model | 2107 | 2208 | 2310 | 3308-2 | 3510 | 3514 | 14215 |
Cutting Width | 86" | 99" | 117" | 99" | 126" | 168" | 180" |
Cutting Height | 1.5"-11" | 1.5"-12" | 1.5"-12" | 2"-13" | 2"-13" | 2"-13" | 1.5"-16" |
Cutting Capacity | 2" | 2" | 2" | 3" | 3.5" | 3.5" | 3.5" |
Min Trator PTO HP (Lift) | 30 hp | 45 hp | 70 hp | 50 hp | 75 hp | 90 hp | 125 hp |
Min Trator PTO HP (Pull) | -- | 35 hp | 50 hp | 40 hp | 60 hp | 75 hp | -- |
2107 Multi-Spindle Rotary Cutter
When you want the widest cutting width possible for your lower horsepower tractor, our New 2107 Multi-Spindle has you covered. The 2107 has a tough but sleek, smooth-top design, improved cutting performance, specially-designed cross-shafts to absorb more shock and maintain proper blade timing, as well as a compact front to back length allowing this model to be used on tractors with as little as 30 PTO HP (with adequate Front Loader or Weights). The 2107 is available as a Cat 1 & 2 Standard and Quick-Hitch Lift-Type, with a selection for Front and Rear Safety Enclosures. Bush Hog’s New 2107 is perfect for general mowing applications such as pastures, overgrown fields, and hunting camps, and is also a perfect fit for orchards and vineyards where planted rows are getting closer together to maximize space and yield. With deeper sidebands and cutting gearboxes providing approximately 16,000 feet per minute Blade Tip Speeds, the 2107 slashes through dense vegetation with ease. Stronger deck components such as a 10ga top plate, extensive structural tubing framework, 7ga sidebands, and reinforced hitch components instill confidence in the product’s durability and longevity.

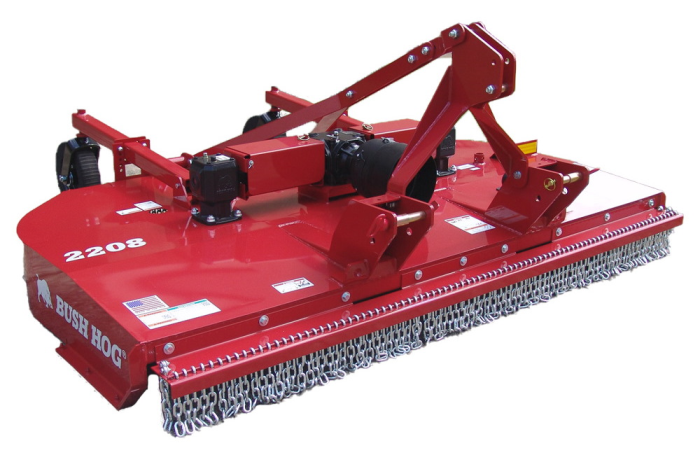

2208 Multi-Spindle Rotary Cutter
Our 2208 Multi-Spindle Rotary Cutter is designed for general purpose cutting of fields, crop residue, and light brush up to 2” in diameter. Cutting efficiency is increased by the 8’3” cutting width and 11 ¾” sideband height allowing a greater volume of material within the cutting chamber. Then, higher Blade Tip Speeds shred though tough vegetation for a clean cut of material with excellent distribution. The Pull-Type model comes equipped with an ASAE CAT 4 CV Driveline, Rubber Cushioned Axles, and 21” Laminated Tires. And with a Tongue Weight of only 880 lb., the 2208 Pull-Type is easier on tractor drawbars, effectively powered by tractors with only 35HP. An optional heavy-duty Hydraulic Cylinder allows for on-the-go cutting height adjustment, while an easy to adjust Tension Rod allows for leveling the cutter from front to back. The 2208 Lift-Type comes equipped as a Cat 1 & 2 Standard and Quick Hitch, ASAE CAT 4 Driveline, Twin Beam Axles, and 15 1/2“ Laminated Tires. At only 8’6” front to back, the 2208 Lift-Type is perfect for areas where a tighter turning radius is required. All models feature durable, rubber discs within the cross-shafts between gearboxes for dependable protection from unexpected shock loads. The 2208 carries on our tradition of making tough, dependable, performance-driven cutters, and is one more example of why “If it doesn’t say Bush Hog®, it just won’t cut it.”

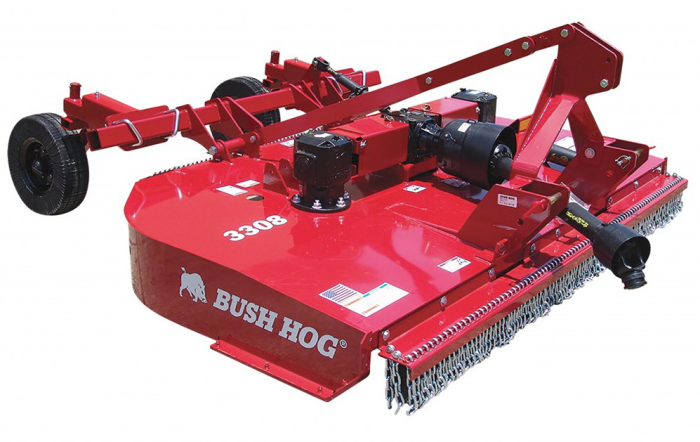

3308-2 Series Multi-Spindle Rotary Cutter
The 3308-2 models are designed to cut heavy grass, weeds, and brush up to 3-inches in diameter. The Lift and Semi-Mount models are available with economical twin beam axles or heavy duty cushioned axles. The Pull-Type and the Swing Hitch models have heavy duty axles as standard. The 3308-2 models deliver what you would expect from Bush Hog®, which is rugged durability and excellent performance. The 3308SH has a hydraulic cylinder to offset the cutter 13-inches to the right of the tractor centerline. Extending farther beyond the tractor tires is ideal in orchards and hard to reach areas near ditches. Deep sidebands provide better cutting performance in extra heavy growth conditions. If it doesn’t say Bush Hog®, it just won’t cut it…
3510 Multi-Spindle Rotary Cutter
Bush Hog®’s entire line of multi-spindle rotary cutters is designed for heavy crop clearing, pasture maintenance, and other big jobs that require a durable, reliable machine. With cutting widths from 7 to 14-feet, and a range of hitch types and mounting options, these heavy, rigid deck cutters are built to withstand extreme duty and provide superior performance and productivity with minimal maintenance for many, many years.
3514 Series Multi-Spindle Rotary Cutters
The heavy duty 3514 cuts a 14 foot swath and is ideal for grass, weeds and row crop shredding. Available as a lift or pull model with round blade carriers or straight blade bars and an optional shredding kit, this wide unit covers ground quickly and delivers top cutting performance. Bush Hog’s entire line of multi-spindle rotary cutters is designed for heavy crop clearing, pasture maintenance, and other big jobs that require a durable, reliable machine. With cutting widths from 7 to 14 feet, and a range of hitch types and mounting options, these machines are built to withstand extreme duty and provide superior performance and productivity with minimal maintenance for many, many years.
14215 Series Multi-Spindle Rotary Cutters
The Bush Hog 14215 is a row crop and pasture maintenance beast! This 15’ Multi-Spindle makes short work of cutting unwanted crop residue and pasture overgrowth. This cutter differs from conventional Multi-Spindle Cutters in that it incorporates overlapped but non-timed cutting circles. This design allows for each gearbox to have Slip-Clutch protection in lieu of rigid cross-shafts found on other Multi-Spindle cutters. Axle arms can be positioned precisely to specific row spacings. The galvanized deck provides extra rust protection in environments such as crop fields and pastures where fertilizer and herbicides are often used. Available as a Lift-Type, 1000RPM unit with Round Blade Pan and 21” Laminated Tires only. Due to its weight and overall size, this cutter requires at least a 125HP tractor to operate effectively.
|
