FFC Grapple Buckets

Part #: FFC-Grapple
FFC Brush Grapples are fabricated with high-strength steel and replaceable hardened steel bushings that ensure durability and long operational life. A pilot-operated check valve allows independent movement of the grapple arms, facilitating stabilization of irregular loads that are common in this type of application.
Details

FFC Grapple Buckets

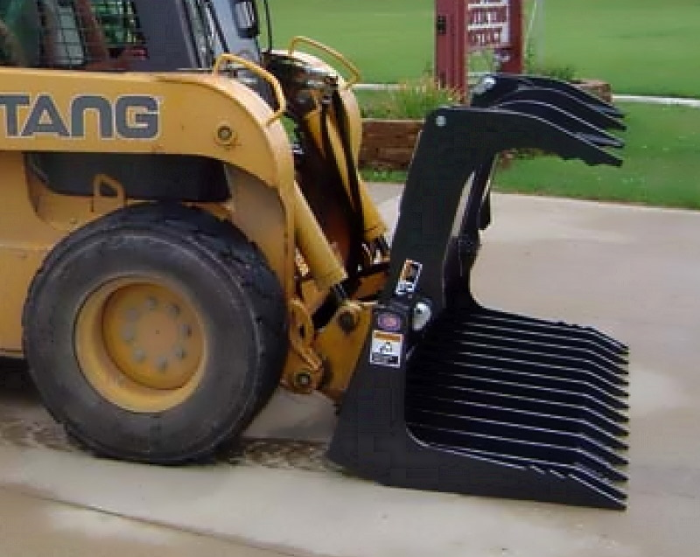

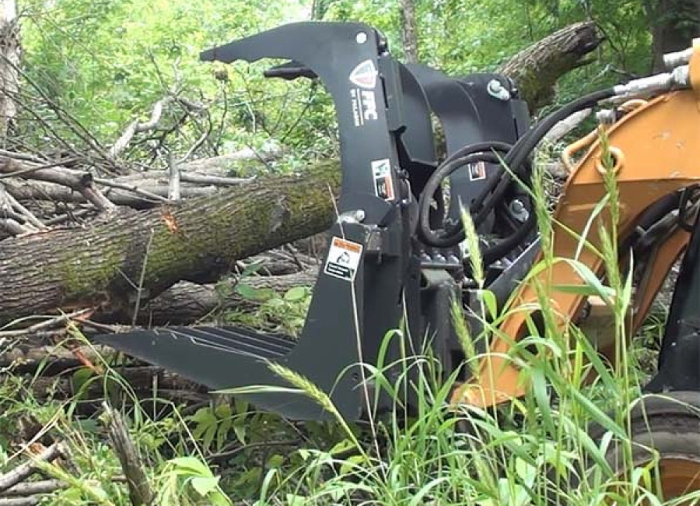

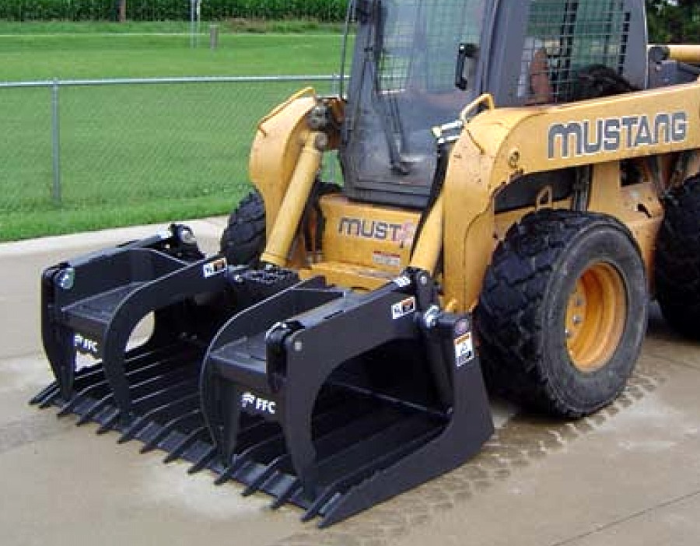

Utility Brush Grapples

FFC Brush Grapples are fabricated with high-strength steel and replaceable hardened steel bushings that ensure durability and long operational life. A pilot-operated check valve allows independent movement of the grapple arms, facilitating stabilization of irregular loads that are common in this type of application.

  • Open floor design
  • Features patented grapple pins and cushioned cylinders
  • Available in 60", 66" and 72" widths
  • Patented designs withstands the demands of work in scrap handling, recycling and other tough applications
  • Includes hardened pins, cushioned cylinder kit and cylinder/hose guard

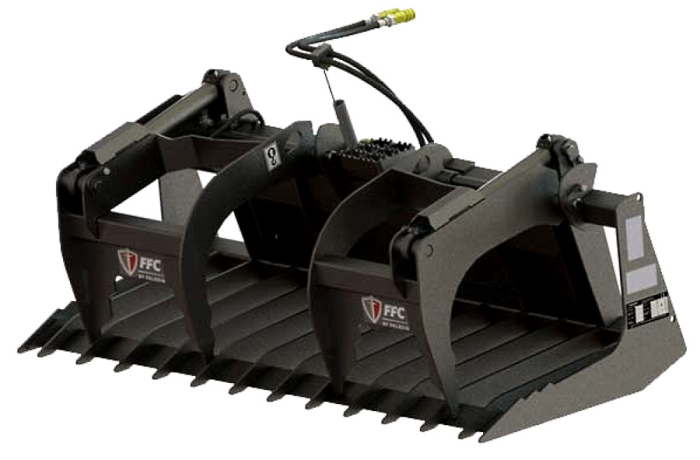

Construction Scrap and Brush Grapples

FFC Construction Scrap and Brush Grapples for large skid steers and ag loaders are designed for the toughest jobs with patented grapple pins and cushioned cylinders. FFC Construction Scrap Grapples have a solid floor and are available in 76”, 82” and 88” widths. FFC Construction Brush Grapples have an open tine floor design and are available in 72”, 78” 84” and 90” widths. These heavy-duty grapples are ideally suited for scrap yards, recycling, brush and trash removal, and construction sites.

  • Patented design withstands the demands of work in scrap handling, recycling and other tough applications
  • Includes hardened pins, cushioned cylinder kit and cylinder/hose guard



Brush Grapples

 Model Utility Brush Grapples Construction Brush Grapples
 Width 60.75" 66.75" 72.75" 60.75" 66.75" 72.75" 73" 79" 85" 91" 76" 82" 88"
 Weight, lbs 723 740 775 738 788 835 925 999 1054 1105 1081 1133 1180
 No. of Tines 11 12 14 11 12 14 14 14 16 16 14 14 16
 Grapple Open 33" 34" 40" 40"
 Grapple Closed 13.375" 19.75" 16.5" 20"



Scrap Grapples

 Model 120 Series 130 Series
 Width 74" 79" 83" 88" 83" 94"
 Weight, lbs 1266 1301 1329 1364 1665 1745
 Grapple Open 45.4" 45.4" 45.4" 45.4" 47.4" 47.4"
 Grapple Closed 19.1" 19.1" 19.1" 19.1" 21.8" 21.8"
 Overall Depth 37.8" 37.8" 37.8" 37.8" 37.3" 37.3"
