Worksaver Post Hole Diggers
Worksaver Post Hole Diggers
PTO Models
Model 300 Digger for Sub-compact Tractors - Ideal for the small acreage owners, Model 300 mates to most sub-compact tractors with a Cat. 0 or limited Cat. I three point hitches with 7/8" pins. Standard positioning handle allows the operator to place the digger from the tractor seat. Due to the low height profile of these sub-compact tractors, augers 30” in length are offered in 6”, 9” and 12” diameters providing versatility when digging holes.

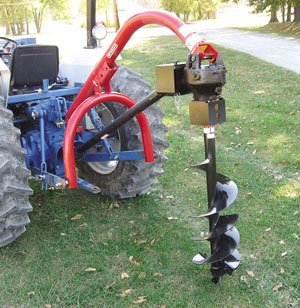

Model 500 Standard Duty Post Hole Digger - Our most popular digger, the model 500 standard duty offers 3-position boom adjustment allowing it to adapt to most tractors. Tubular steel stock of 2.875" diameter is used for the boom for increased durability.
Model 720 Heavy-Duty Post Hole Digger - Increased performance is offered in the model 720 heavy-duty digger. Designed for Cat. I/II tractors, this model offers 3-position boom adjustment, rugged gearbox and a 3-1/2" diameter boom for dependable operation.
Model 925 Industrial Duty Post Hole Digger - Industrial duty workhorse, the model 925 provides dependable operation when mated with any auger from 6" to 30" in diameter. Fits and Cat. I/II tractor with 540 rpm PTO.
Hydraulic Models

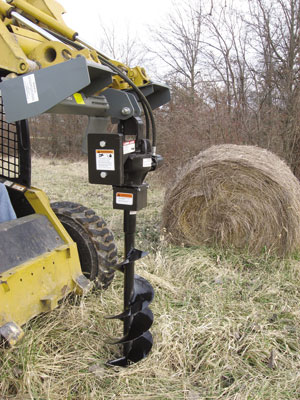

Models 914HC, 924HC Skid Steer Mounted Hydraulic Post Hole Digger - Increase your reach over shrubs, fence lines and other obstructions with a skid steer mounted 914HC/924HC hydraulically driven digger. Great time saver with exceptional up-front visibility and control.

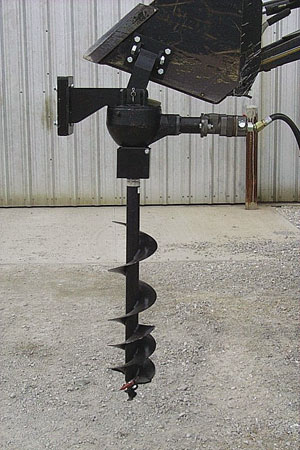

Models 714HC, 724HC Bolt-on Hydraulic Post Hole Digger - Increase productivity with these bolt-on hydraulic diggers. Mounts to side of any loader bucket allowing the operator an unobstructed view of the task at hand.
Models 614HC, 624HC 3-pt. Hydraulic Post Hole Digger - Increased performance is offered in the models 614HC & 624HC 3-pt mounted hydraulic post hole diggers. Designed for Cat. I/II (7/8” Pins) three point hitches, they offer all the features of our 3-pt diggers with power provided by a field proven hydraulic drive motor and gearbox combination for a smooth transfer of power to the auger. Counter weights assure the digger maintains its vertical position for true-vertical holes.
PTO Models
| Model | 300 | 500 | 725 | 925 |
| Auger Length | 30" | 42" | 42" | 42" |
| Auger Diameter | 6"-12" | 6"-12" | 6"-24" | 6"-30" |
| Boom Positions | 3 | 3 | 3 | 3 |
| Hitch Type | Cat. 1 & 1 | Cat. 1 & 2 | Cat. 1 & 2 | Cat. 1 & 2 |
| Drive Type | 540 rpm | 540 rpm | 540 rpm | 540 rpm |
| Gear Ratio | 3.00:1 | 3.00:1 | 3.18:1 | 4.00:1 |
| Output Shaft | 2" diameter | 2" diameter | 2" diameter | 2" diameter |
| Tractor Horsepower | up to 25 hp | 20-35 hp | 25-65 hp | 35-95 hp |
| Hitch Yoke | 3" tubing | 3" tubing | 3" tubing | 3" tubing |
| Boom | 2-7/8" tubing | 2-7/8" tubing | 3-1/2" tubing | 3-1/2" tubing |
Hydraulic Models
| Model | 614HC | 624HC | 714HC | 724HC | 814HC | 824HC | 914HC | 924HC |
| Drive Tpye | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Shaft Output Size | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Type of Mounts | Cat. 1/2 | Cat. 1/2 | Bolt-on | Bolt-on | Clamp-on | Clamp-on | Skid Steer | Skid Steer/Euro |
| Recommended Hyd. Flow | 5-10 gpm | 10-20 gpm | 5-10 gpm | 10-20 gpm | 5-10 gpm | 10-20 gpm | 5-10 gpm | 10-20 gpm |
| Max. System Pressure | 3000 psi | 3000 psi | 3000 psi | 3000 psi | 3000 psi | 3000 psi | 3000 psi | 3000 psi |
| Auger Sizes | 6"-14" | 6"-24" | 6"-14" | 6"-24" | 6"-14" | 6"-24" | 6"-14" | 6"-24" |
| Standard Digging Depth | 42" | 42" | 42" | 42" | 42" | 42" | 42" | 42" |
 |
|
