Worksaver Post Drivers
Worksaver Post Drivers
Worksaver with over two decades of post driver innovations now offers two series of post drivers. Our standard duty model HPD-16 incorporates many of the innovations first brought to the market by Worksaver: “convertible” hydraulic valve, grease zerks at all major pivot locations, plated manual cranks, plastic slide blocks, adjustable legs, bubble level, and SplitCap™. The HPD-16 (32,000 lbs. of force) is ideal for the small property owner with limited fence posts to drive. Our patented Q-series of hydraulic drivers, HPD-22Q (80,000 lbs. of force) and HPD-26Q (110,000 lbs. of force) offer ingenious solutions to routine maintenance to keep the operator building fence. Q-series drivers feature two time savings QuickChange™ system. Worksaver’s SplitCap™ with enhanced cylinder rod design allows the operator to perform routine maintenance on the rod cap seal without removing the cylinder from the driver. Our Q-spring assembly reduces spring change over from hours to minutes. This design offers increased service life when compared to conventional post driver springs. The integrated spring/ spring-anchor design when mounted to the cushion mounts reduces vibration which further provides increased spring service life. Increasing fence-building performance, making the Q-series a game changer.

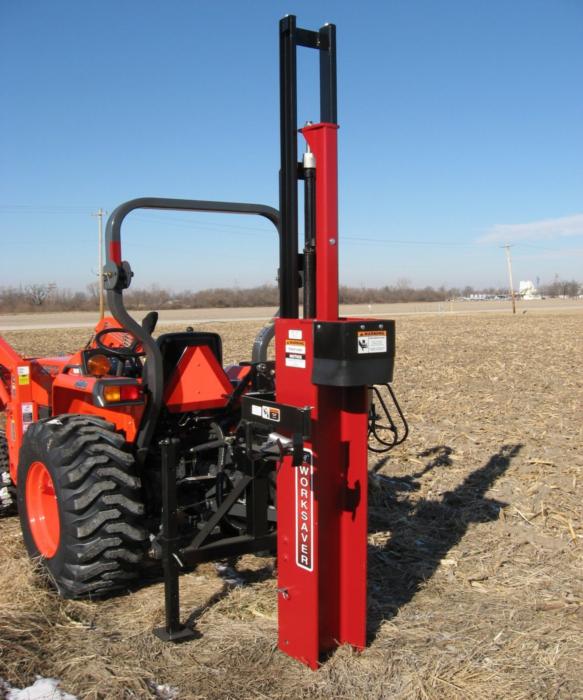

3-pt. Hydraulic Post Drivers (Manual Adjust) - The HPD-16/22Q models with manual adjust quickly deliver an air tight post set for wood or steel posts. Base model offers manual adjustment cranks and bubble level for prefect vertical alignment on flatland or hillsides.

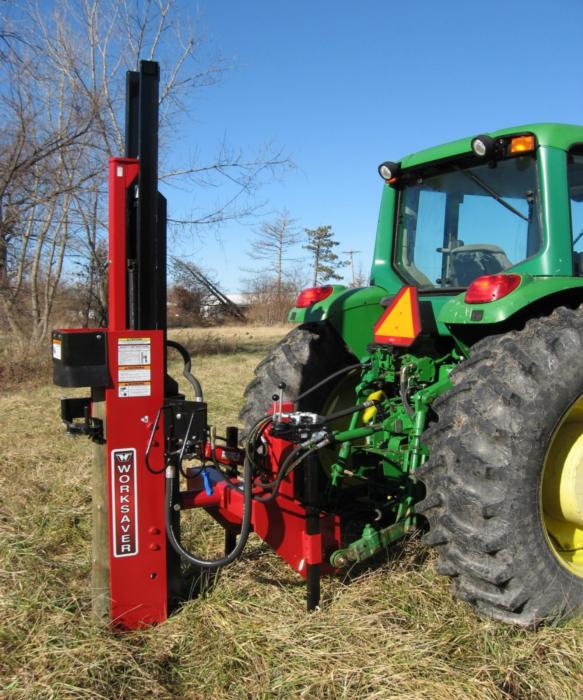

3-pt. Hydraulic Post Drivers (Hydraulic Adjust) - Designed and engineered for those who have serious fencing to do. These center mounted units offer all the quality features of the basic HPD-16 & HPD22Q plus effortless hydraulic driver alignment controlled by two 3" x 6" hydraulic cylinders.

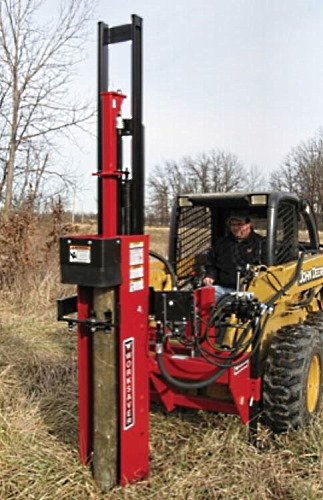

Skid Steer Mounted Hydraulic Post Driver - For greater multi-task performance from your skid steer, connect it to a hydraulic skid steer mounted post driver. The HPD-16 HSS, HPD-22Q & HPD-26Q HSS are all hydraulic adjust for quicker productivity.
Skid Steer Mounted Hydraulic Post Driver (Self-Contained) - Save time by simplifying driver installation and removal with a self-contained hydraulic post driver. Features include a hydraulic pump, motor and reservoir. No special return line fittings are required.
3-Point Hitch Models
| Model | HPD-16 | HPD-16 SHC | HPD-22Q | HPD-22Q SHC | HPD-26Q SHC |
| Max Post Size | 5" x 9' | 5" x 9' | 8.75" x 10' | 8.75" x 10' | 11" x 10' |
| Impact at Full Stroke | 32,000 lbs | 32,000 lbs | 80,000 lbs | 80,000 lbs | 110,000 lbs |
| Mount Type | 3-pt Cat. I/II | 3-pt Cat. I/II | 3-pt Cat. I/II | 3-pt Cat. I/II | 3-pt Cat. II |
| Tilt - Front/Back | 10° | 17° | 10° | 17° | 17° |
| Tilt - Side/Side | 17° | 20° | 17° | 20° | 20° |
| Tilt Adjustment | Manual | Hydraulic | Manual | Hydraulic | Hydraulic |
| Min Tractor Size | 20-22 hp | 20-22 hp | 30-35 hp | 30-35 hp | 50-55 hp |
| Min Hyd Requirement | 3-4 gpm | 3-4 gpm | 6-8 gpm | 6-8 gpm | 12 gpm |
| Weight | 600 lbs | 875 lbs | 795 lbs | 1035 lbs | 1215 lbs |
Skid Steer Models
| Model | HPD-16 | HPD-22Q | HPD-26Q | |||
| HSS | HSS/P | HSS | HSS/P | HSS | HSS/P | |
| Max Post Size | 5" x 9' | 5" x 9' | 8.75" x 10' | 8.75" x 10' | 11" x 10' | 11" x 10' |
| Self Contained Unit | -- | Yes | -- | Yes | -- | Yes |
| Min Hyd Requirement | 3-4 gpm | 10 gpm | 6-8 gpm | 10 gpm | 12 gpm | 12 gpm |
| Weight | 950 lbs | 1283 lbs | 1245 lbs | 1385 lbs | 1429 lbs | 1575 lbs |
| Impact at Full Stroke | 32,000 lbs | 80,000 lbs | 110,000 lbs | |||
| Impact at Half Stroke | 16,000 lbs | 40,000 lbs | 55,000 lbs | |||
| Tilt - Front/Back | 17° | 17° | 17° | |||
| Tilt - Side/Side | 20° | 20° | 20° | |||
| Tilt Adjustment | Hydraulic | Hydraulic | Hydraulic | |||
 |
|
