Brillion Chisel Plow

Part #: Brillion-CP
The Brillion Chisel Plow is the foundation tillage tool that brought Brillion into the primary tillage business. The Chisel Plow is a very basic, economic implement that in many cases has been the primary tillage tool of choice due to excessive residue, rocks, and stones. These tools started the Conservation Tillage movement in American agriculture.
Details
Files

Brillion Chisel Plows

Back to the Basics – The Ideal Conservation Tool

  • Five to Twelve Shank Three-Point Hitch Models Available
  • Two and Three Bar Basic Frame Configurations

3-Bar Models

The 3-Bar Mounted Chisel Plow is available in sizes from 7 to 12 shanks, which are spaced on 12” centers for optimum performance. These models can be equipped with a choice of three different shank styles in both rigid and dual nested spring resets. The heavy-duty three-point hitch allows for a short-coupled machine that pulls easily and is highly maneuverable. Optional gauge wheels and frame extension packages allow these machines to be tailored to fit your needs.



  • Three-Point Hitch – Cat. II, III Free Link
  • Three-Point Hitch – Cat. II, III, IIIN Quick Coupler Hitch
  • All Welded Steel 4″ x 4″ x .25″ Frame
  • Optional Manual Adjust Gauge Wheels are Infinitely Adjustablev
  • 27.5″ Under Frame Clearance When Equipped with 26″ Shanks
  • 33.5″ Under Frame Clearance When Equipped with 32″ Shanks
  • Dual Nested Spring Shank or Rigid Shank Assemblies
  • Spring Shank Assemblies Trip Up to 5.5″
  • Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs.

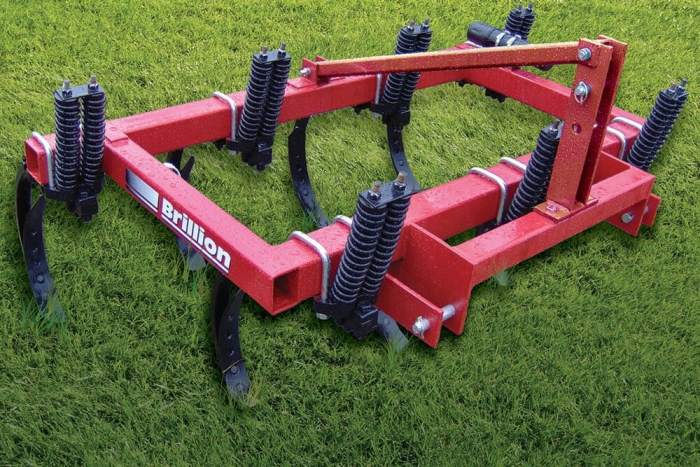

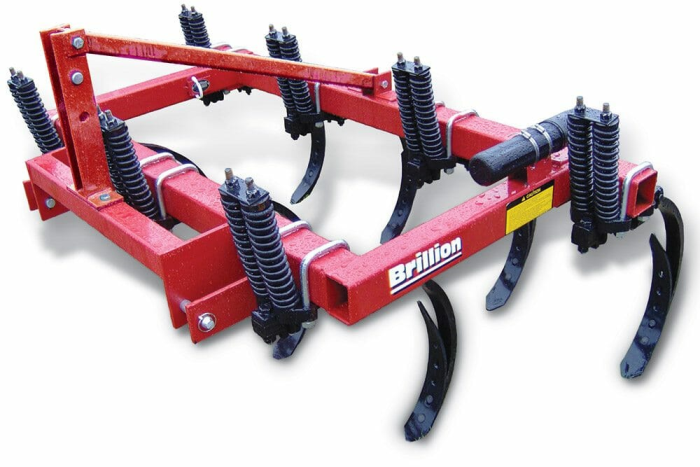

2-Bar Models

The 2-Bar Mounted Chisel Plow has been a staple item in the line of primary tillage tools for over 45 years. It was designed as a complement to the 3-Bar Mounted Chisel Plow. With its 5 and 7 shank sizes, the 2-Bar Mounted Chisel Plow fits into smaller operations and niche markets around the country. The 2-Bar frame allows for handy maneuvering and easy pulling in the field. The ability of these machines to reach just slightly deeper into the soil profile than the moldboard plow allows producers to manage compaction layers in a very economical way. The 2-Bar Mounted Chisel Plow has stood the test of time and will continue to be the tillage tool of choice for certain applications well into the future.



  • Three-Point Hitch – Cat. II Free Link
  • Three-Point Hitch – Cat. II, IIIN Quick Coupler Hitch
  • All Welded Steel Frame
  • Optional Gauge Wheel Kits Available
  • 27.5″ Under Frame Clearance
  • Dual Nested Spring Shank or Rigid Shank Assemblies
  • 12″ Shank Spacing
  • 12″ Maximum Shank Working Depth
  • 2″ Reversible Points or 3″ Reversible Twisted Points Available
  • Powder Coat Paint
