Brillion Food Plot Seeder

Real Tool – Not a Toy

The reliability of the time-proven Brillion Sure Stand Seeders is the foundation upon which the Food Plot Seeder is built. Starting with the all-welded, one-piece steel frame, the Food Plot Seeder will not flex or slip out of adjustment. The unique floating three-point hitch is attached to the front of the frame. The 18” disc blade gangs are adjustable for the angle of operation and are mounted rigidly to the underside of the frame. The miniature S-Tine cultivator segment is adjustable for depth of operation through a series of holes on the mainframe. The complete cultivator segment may be removed if desired. The seedboxes are mounted to the top of the frame and are driven from the pulverizer/packer roller also attached to the frame. Optional coil tine levelers and the utility box also have mounting positions on the mainframe.

Versatility Built-In

Seeding wildlife plots is usually not an exact science that can be easily replicated. Conditions change from planting to planting and the tools used to plant them need to versatile enough to accommodate. The Brillion Food Plot Seeder can prep and plant in one pass in some conditions. However, in most situations, some preparation needs to be done to ensure a proper planting process. The Brillion Food Plot Seeder can be adjusted to be used as a disc harrow by shortening the top link on the hitch to put the seeder full forward so just the disc harrow contacts the soil. This will allow for rugged tillage for a first or second pass. By lengthening the top link on the hitch, the cultivator segment and roller can be used as a complete preparation tillage tool. If the final seedbed is loose and fluffy, raise the three-point arms slightly, lengthen the top link some more to put the weight of the entire seeder on the pulverizer roller and roll the field to firm up the seedbed before planting. Once the seedbed is firm, level the seeder on the hitch, engage the seedboxes, and proceed with the seeding operation. In some cases, the seeded plot may need to be rolled again after seeding to ensure the best seed to soil contact. Many of these scenarios may or may not be present in every situation. Whatever conditions you run into in your food plots, be assured the Brillion Food Plot Seeder can handle it!

All in One Solution for Wildlife Food Plots

• 6′ Model Available
• Three-Point Hitch – Cat. I, II Free Link
• Three-Point Hitch – Cat. I, II Quick Coupler Hitch
• Floating Link Allows Seeder to Pivot and Follow the Contour of the Land
• 18″ Notched Disc Blades, Spaced at 7.5″, Can be Adjusted to 10 or 15 Degrees Depending on Amount of Tillage Needed
• Two Rows of Mini S-Tine Cultivator Teeth
• Teeth are Spaced at 15″ on Each Bar for a Nominal Spacing of 7.5″
• S-Tines are Fully Adjustable and Can be Removed if Only Disc Tillage is Required
• Double Seed Box Capacity
• Micro-Metered Box Will Plant Small Granular-Type Seeds at Precise Rates

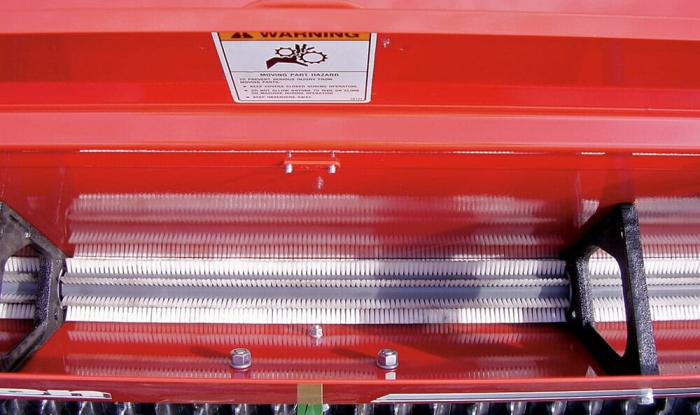

• Seed Box Equipped with Brush Agitator Will Plant Larger Seeds and Seed Mixtures Containing a Variety of Seeds
• User Friendly Seed Rate Adjustments
• Seed Box Disconnect Klik Pin Disconnects the Seed Drive for Seed Rate Calibration and Prevents Wear and Tear on the Seed Box Drives in Tillage-Only Mode
• Positive Ground Driven Seed Metering System
• Pulverizer Roller Packs Seeds Into the Soil for Maximum Seed to Soil Contact
• 1.5″ Self-Aligning, Greaseable Bearings Add to Ruggedness and Reliability of the Seeder
• Coil Tine Harrow Available for Additional Leveling
• Cargo/Rock Box Available
• Powder Coat Paint
